CE Approve Animal Chicken Cattle Sheep Feed Pellet Mill For Farm
Product Description:
Feed Pellet Mill is a kind of pelletizer equipment that can process various kinds of feed materials into feed pellets for poultry and livestock.
This Feed Pellet Mill is easy to operate and maintain, and it is energy-saving and eco-friendly. It can process feed materials into pellets of uniform size and shape, and ensures the quality of the feed pellets. With its high efficiency, it can save a lot of time and labor.
This product model absorbs the essence of the pellet machine and is a new energy-saving product. In the past, the feed was generally processed into powder and then fed, which had disadvantages such as inconvenient feeding, poor palatability, picky eaters of livestock, and low utilization rate. With the advent and popularization of new small-scale pellet feed machinery, powder feed can now be easily processed into pellet feed. Lighting electricity can be used as the power, and the granulation can be extruded from the die hole under the extrusion of the pressure roller, and the length of the granules can be easily adjusted. Its structure is simple, the floor space is small, the noise is low, and 220 volts single-phase electricity is enough. Operation, suitable for small farmers who lack three-phase power conditions.
The powder is gelatinized and coagulated at high temperature, extruded from the die hole under the extrusion of the pressure roller, passed through the segmentation of the cutter, and finally comes out from the discharge port. , killing pathogenic microorganisms and parasites, can improve the digestion and absorption of nutrients. The granule formation process can make the factors in grains and beans act to reduce the adverse effect on digestion, thereby ensuring the quality of the feed. After natural cooling, it is packaged for easy sealed storage.
Features
- Simple structure, wide applicability, small footprint, low noise.
- Powdered feed and grass powder can be granulated without (or a little) liquid addition. Therefore, the moisture content of the pellet feed is basically the moisture content of the material before pelleting, which is more conducive to storage
- The granules made by this machine have high hardness, smooth surface and sufficient internal ripening degree, which can improve the digestion and absorption of nutrients, and can kill common pathogenic microorganisms and parasites. It is suitable for raising rabbits, fish, ducks and experimental animals. Powdered feed can obtain higher economic benefits.
- Adapt to different materials to ensure the pressing effect. The compression molding of sawdust and corn stalks requires a lot of pressure. Among similar granulation equipment, the roller part is the central part of the whole equipment, and high-quality alloy steel is used to improve the service life of the roller.
- Long service life.
Technical Parameters
| Model |
Output capacity |
Power
(kw)
|
Weight
(kg)
|
Wooden Packing Size(mm) |
| ZLSP120B |
60-90kg/h |
3KW |
90kg |
1000*500*770mm |
| ZLSP150B |
90-150kg/h |
4KW |
115kg |
800*350*740mm |
| ZLSP200B |
200-300kg/h |
7.5KW |
230kg |
1000*480*990mm |
| ZLSP230B |
300-400kg/h |
11KW |
285kg |
1180*520*1020mm |
| ZLSP260B |
400-600kg/h |
15KW |
385kg |
1240*540*1070mm |
| ZLSP300B |
600-800kg/h |
22KW |
485kg |
1350*560*1220mm |
| ZLSP400B |
800-1200kg/h |
30KW |
750kg |
1400*650*1200mm |
|
HS code: 8479300000
Packing details: all machines come with motor, die, press roller, electric control cabinet, it is complete set machine ready for use
|
Applications
The raw materials: Corn, soybean meal, straw, grass, rice husk, etc. are used as raw materials.
The pellet size is 2.5-12mm.
Suitable: Chicken, Cattle, Pig, Cow, Sheep. etc animals.

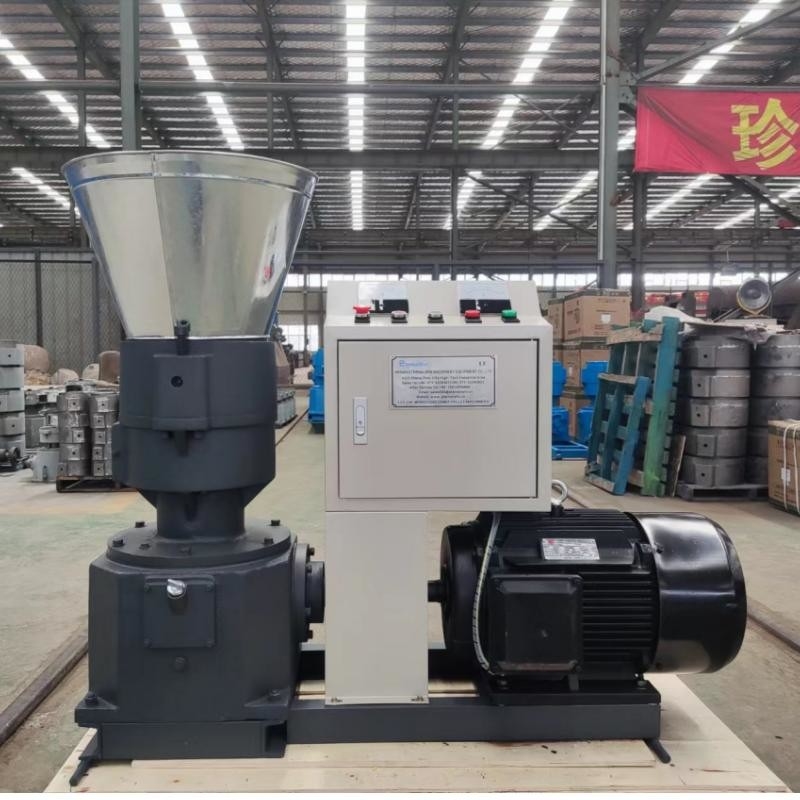

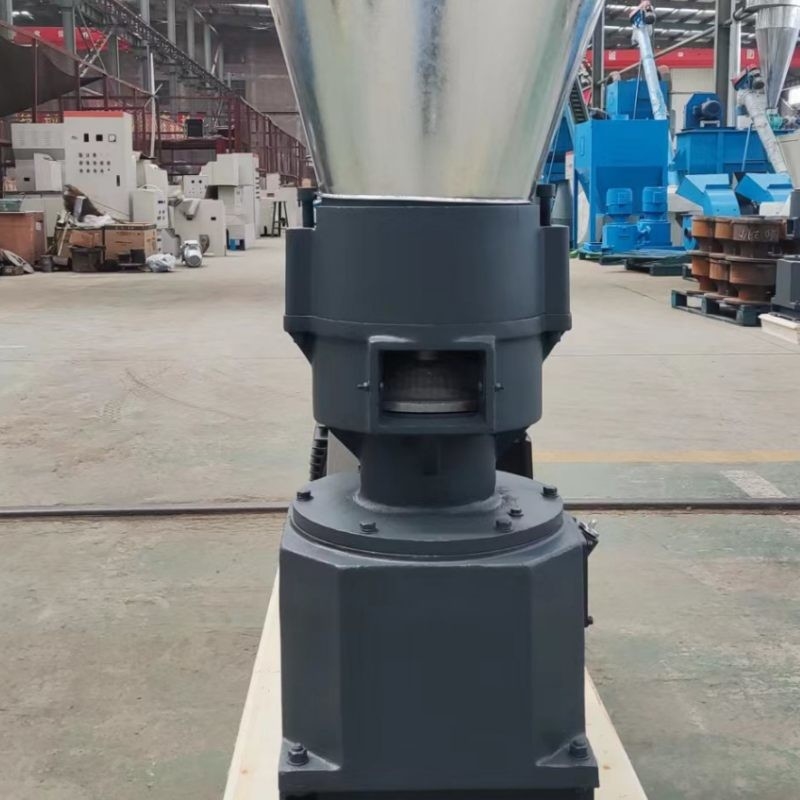

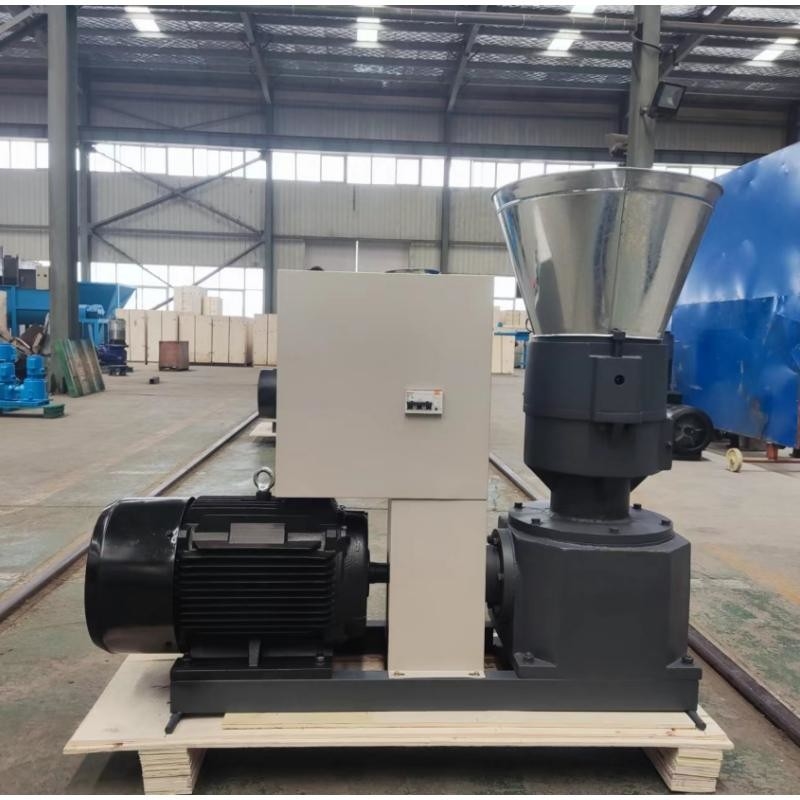

Machine Details
Factory Picture
Packing and Shipping
Export Wooden Box
