Koi feed production line and ornamental floating feed extruder production line

Koi feed production line and ornamental floating feed extruder production line

Ornamental Floating Feed Production Line

Koi Feed Production Line

Place of Origin:

HENAN ZHENGZHOU

Brand Name:

ZHOINGDEBAO

Certification:

CE,BV,SGS

Model Number:

PEL-1

Contact Us
Request A Quote
Product Details
Product Name:
Floating Fish Feed Production Line
Capacity:
1-10t/h
Voltage:
380V/50HZ/3Phase (Custom Made)
Application:
Fish Feed, Pet Feed
Color:
Custom Made
Certification:
CE
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
40HQ
Delivery Time
20-25 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 set per month
Product Description

Koi feed production line and ornamental floating feed extruder production line



Features:


This production equipment is suitable for producing floating fish feed and ornamental fish feed. The feed floats for a long time and is not easy to spread. By adjusting process parameters such as raw materials, temperature, and moisture, the product has the characteristics of novel shape, unique taste, rich nutrition, and fine texture, suitable for the tastes of different fish. Feeds of different shapes and sizes can be replaced with molds and the expansion degree can be adjusted. Fish feed size: 1mm to 15mm. Floating time is about 20 hours.



Process flow:



Raw material preparation → mixing → transportation → extrusion and puffing → transportation → drying → seasoning → cooling → screening → packaging.



Equipment configuration:



Mixing machine → Feeding machine → Extruder → Conveyor → Multi-layer oven → Seasoning line → Cooling conveyor → Vibrating screen → Packaging machine.





Parameter table:



 Koi feed production line and ornamental floating feed extruder production line 0



Model Main Power Cutter
power
Cutting power Modulator Capacity
EWS-65 22kw 0.75kw 1.5kw 3kw 300kg/h
EWS-70 37kw 1.1kw 2.2kw 3kw 500kg/h
EWS-80 55kw 1.5kw 3kw 5.5kw 800kg/h
EWS-85 75kw 2.2kw 3kw 7.5kw 1000kg/h
EWS-90 90kw 3kw 3kw 11kw 1500kg/h
EWS-120 110kw 3kw 5.5kw 15kw 2000kg/h

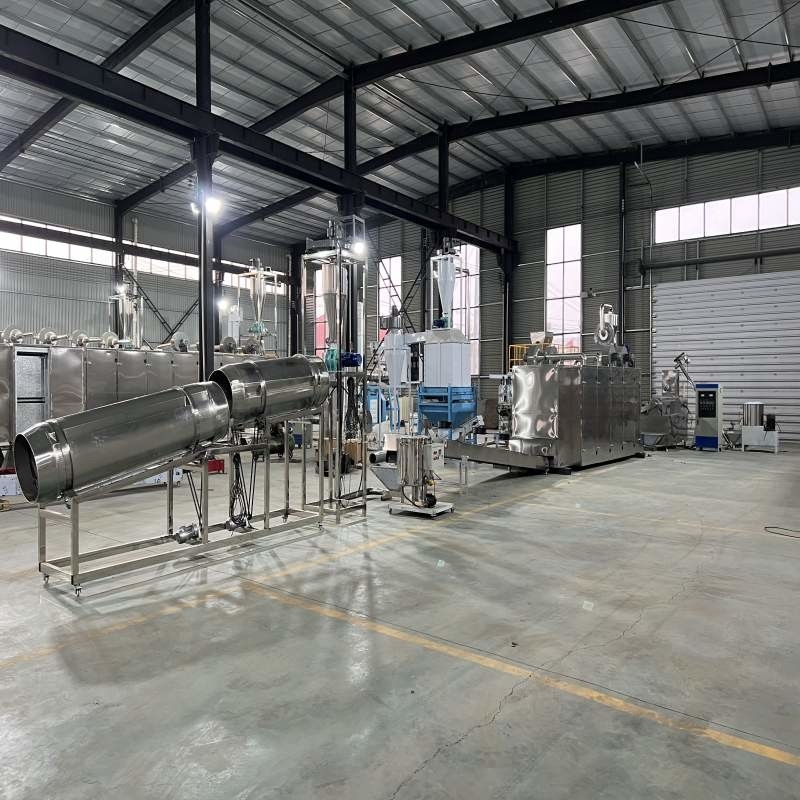

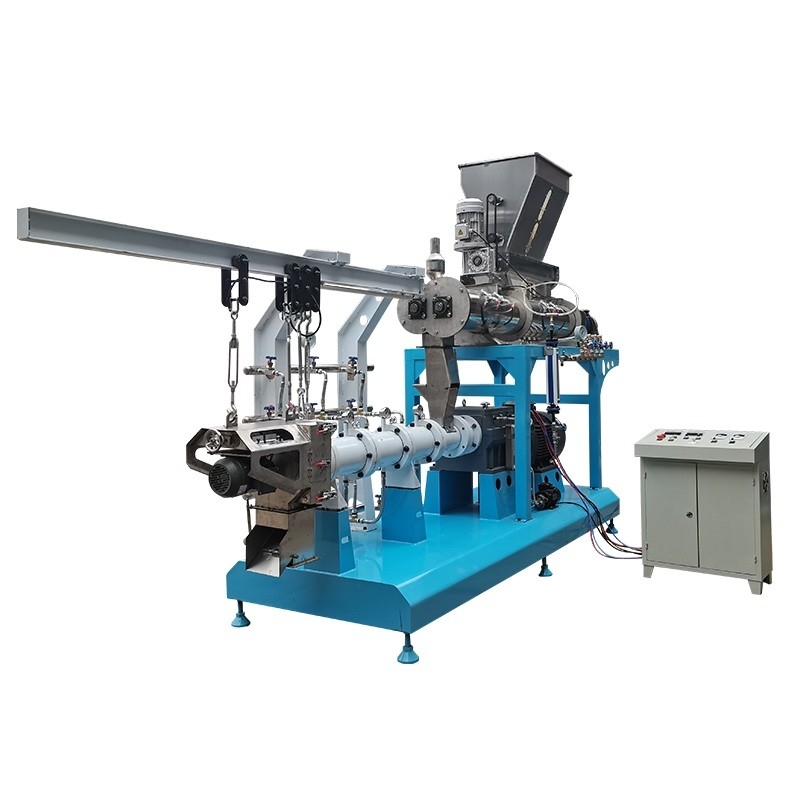

Production line reference pictures:



It is very important to first determine the output of this feed production line. Depending on the output, the production lines vary greatly from process to configuration. We will design different production line solutions based on the customer's "production line output".



Koi feed production line and ornamental floating feed extruder production line 1



Koi feed production line and ornamental floating feed extruder production line 2

RAQ:



Who is suitable for this fish feed pellet production line?


It is specially designed for small fish farm owners, small fish feed factories, fish feed manufacturers and animal feed suppliers who first enter the fish feed production industry. This method is small in size, low in cost and easy to operate.



What ingredients can be used to make fish feed?


This production line can be used for various cereals, fish meal, bone meal, bean cake, peanut meal, rice bran, etc. Other types of materials can also be added according to different recipes, such as premixes, vitamins, salt and other materials.



What kind of feed can be produced?


The aquatic feed pellet production line can produce fish feed, floating fish feed, sinking fish feed, shrimp, carbohydrate feed, tilapia feed, tropical fish, etc.



What can we do for you?


We can provide flow charts, quotations, designs and a large number of installation drawings, workshop layouts, pictures, videos, etc. A professional team will serve you as needed.
