Large Capacity Wood Pellet Machine Biomass Wood Pellet Production Line Vertical ring die Wood Pellet Machine

Large Capacity Wood Pellet Machine Biomass Wood Pellet Production Line Vertical ring die Wood Pellet Machine

Vertical ring die Wood Pellet Machine

Large Capacity Wood Pellet Machine

Biomass Wood Pellet Machine

Place of Origin:

China

Brand Name:

Eternalwin

Certification:

SGS

Model Number:

450

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiation
Packaging Details
wood packing
Delivery Time
15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
30 pcs per month
Product Description

Large Capacity Wood Pellet Machine Biomass Wood Pellet Production Line Vertical ring dieWood Pellet Machine





1.Introduction of Vertical Ring Die Pellet Machine





The vertical ring die pellet mill is a versatile compacting equipment used to press a variety of powdered or granular raw materials into uniform, durable pellets. This machine plays a key role in multiple industries, upgrading low-density raw materials into higher-value, more useful products.







2.Application of vertical ring die pellet machine



Vertical ring die pellet mills are versatile processing machines used to densify and agglomerate a wide range of powdery or granular raw materials into uniform, durable pellets. Common applications include the production of animal feed, biomass fuels, and various industrial powders.







3.The working process and function of vertical ring die pellet machine



1. Raw material feeding: Raw materials (such as wood chips, grains, mineral powders, etc.) enter from the feed port at the top of the machine.
2. Extrusion and compression: The raw materials fall into the ring die assembly under the action of gravity. The roller rotates at high speed, exerting strong mechanical pressure on the raw materials, forcing them to pass through the small holes in the ring die.
Forming and heating: During the violent extrusion process between the roller and the ring die, the raw materials are subjected to a large amount of frictional heat. This heat can partially fuse the raw material particles, so that the pressed particles have good structural integrity.
3. Particle discharge: After extrusion and heating, the raw materials are compressed into standard-sized particles and discharged from the discharge port at the bottom of the ring die.



4.Function of vertical ring die pellet machine



The overall structure of vertical ring die pellet machine is compact and easy to operate. It has a high degree of automation and can be easily integrated into various production lines. This equipment is widely used in biomass fuel, animal feed, industrial powder and other fields, and plays an important role in the upgrading and utilization of raw materials.





5.Technical parameters of vertical ring die pellet machine



Model Power Capacity Contains equipment
EWP-450 55 KW 0.8-1 T/H

(1) Feeding conveyor,

(2) wood pellet machine,

(3) dust removal,

(4) automatic lubrication system,

(5) electric control cabinet

EWP-560 90 KW 1.2-1.5 T/H
EWP-600 110 KW 1.8-2 T/H
EWP-600A 132 KW 2-2.5 T/H
EWP-700A 160 KW 2.5-3 T/H














6.Pictures of vertical ring die pellet machine

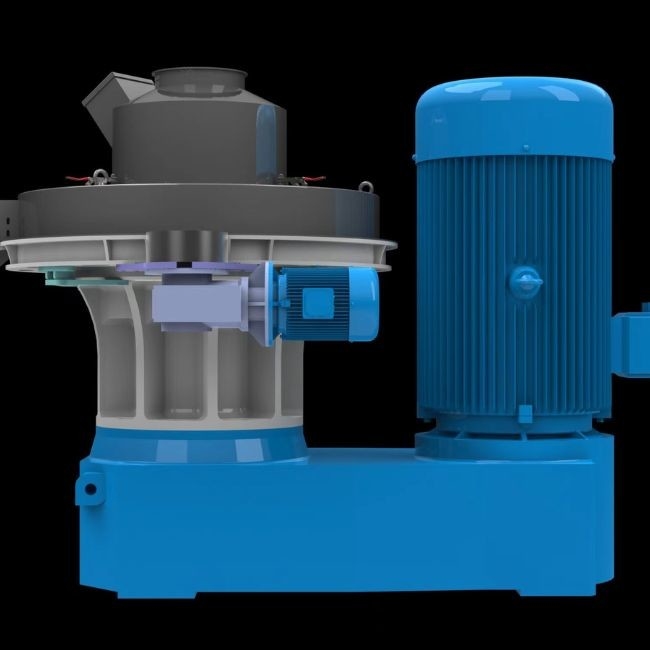

Large Capacity Wood Pellet Machine  Biomass Wood Pellet Production Line Vertical ring die Wood Pellet Machine 0

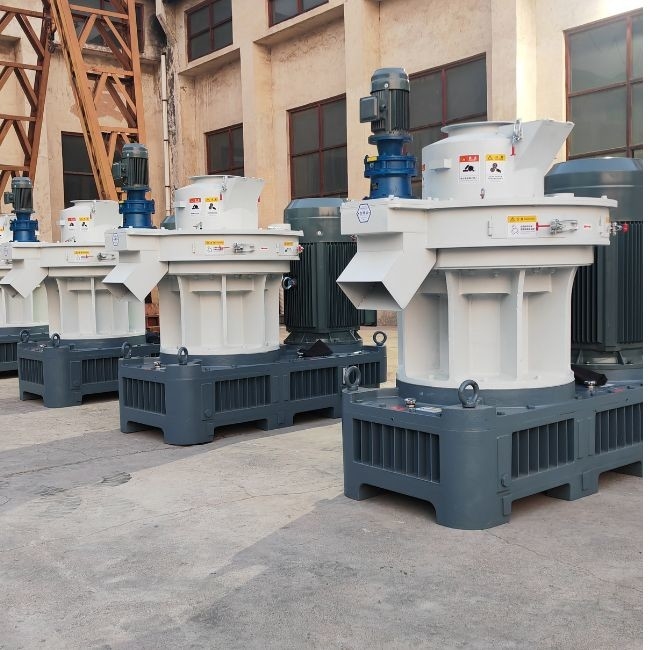

Large Capacity Wood Pellet Machine  Biomass Wood Pellet Production Line Vertical ring die Wood Pellet Machine 1

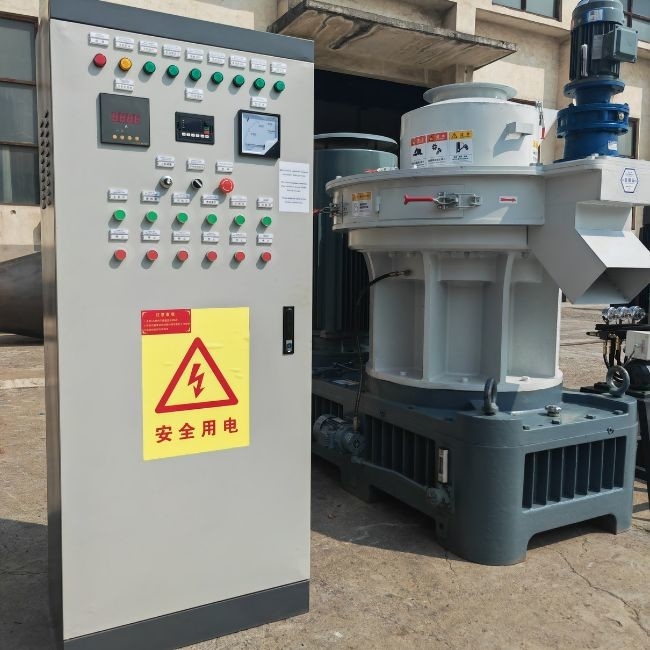

Large Capacity Wood Pellet Machine  Biomass Wood Pellet Production Line Vertical ring die Wood Pellet Machine 2
