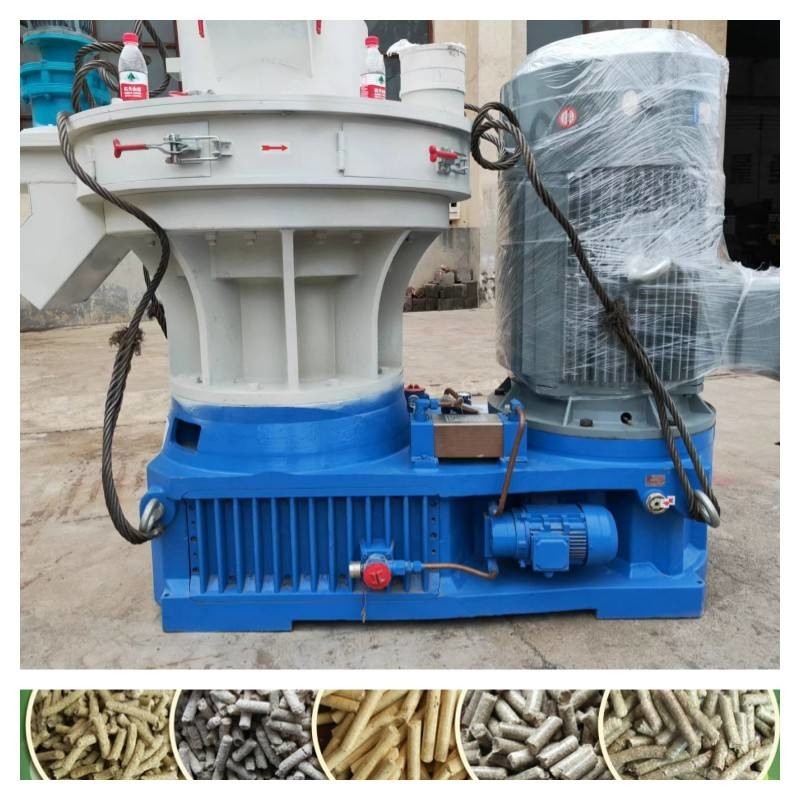

6mm-12mm Wood Pellet Production Line 1-1.5ton/H Vertical Ring Die Pellet Mill

                                          Vertical Ring Die 1-1.5ton/H Wood Pellet Production Line With 6-12mm

  Product Description

1. Adopt unique forced feeder, reinforced transmission parts, special ring die, roller, high-pressure pump, etc.

2. High-precision main gear transmission, stable and reliable operation.

3. Imported high-quality bearings and oil seals, high-efficiency, stable operation, low noise, and the cutting chamber is equipped with a suction

cooling system.

4. The forced feeding machine adopts frequency conversion motor to ensure the quality of the final material.

5. The compensating Fokker elastic coupling has a novel and compact structure, good sales performance, low noise during operation, and low

failure rate.

Ring Die wood pellet production line are he modification machine from feed pellet mill , after doing some research based on the characteristics of

biomass fuel pelletizing, they are mainly used to compress the crushed biomass materials like sawdust ,grass, straw and other flammable

materials into pellets.Researched show that when the final pellets are 8,10 or 12mm in diameter, they are in the best condition for buring, but if

you need any other ring die in thickness and diameters, we can customized that for you . they are adopted with frequency control motor feeding,

overload protectiion device, outside discharging mechanism and automatic lubrication system .

Features
1. Vertical feeding, directly in place.

2. The mold is stationary, the pressure wheel rotates, and the material is centrifugal and evenly distributed around.

3. The mold is double-layered, up and down, reducing costs, high production and energy saving.

4. Annular mold, vertical structure, using granulation chamber for heat dissipation and cooling.

5. Independent discharge device ensures the molding rate of pellets, reasonable design, low consumption and high efficiency.

6. The main stress components are made of high-alloy wear-resistant materials, and the life of wearing parts is twice that of similar products.

7.24 hours working, fully automatic lubrication.

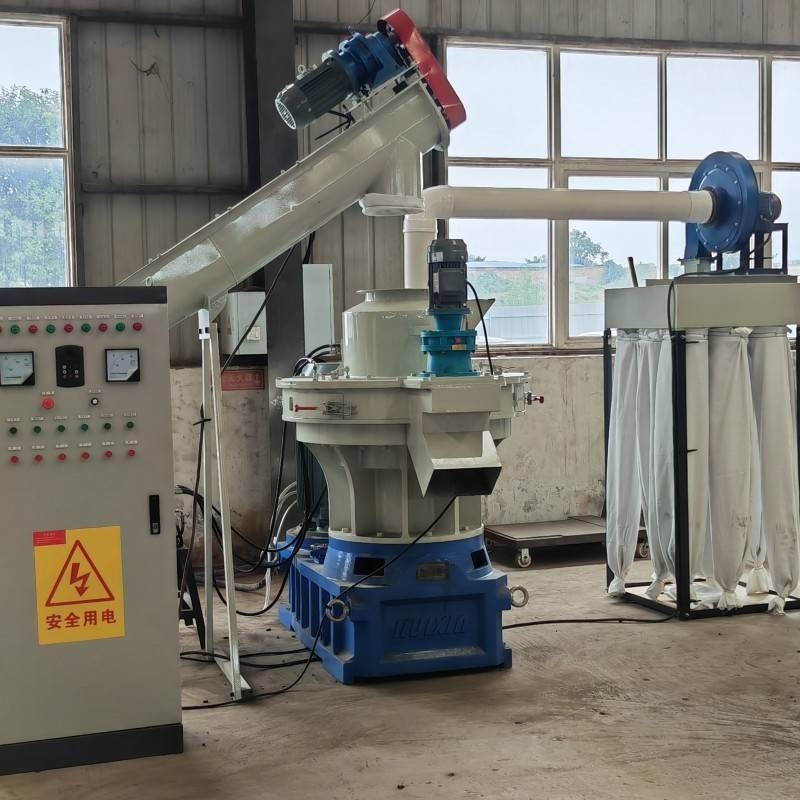

Process of pellet making

Hammer mill crusher → Dryer → Conveyor → Dosing machine → Conveyor → Pellet machine → Package machine

Our project

Scope of application:

Main accessories:
