Flat Die Wood Pellet Granulator Wood Log Sawdust Crusher Machine

Flat Die Wood Pellet Granulator Wood Log Sawdust Crusher Machine

Flat Die Wood Pellet Granulator

Wood Pellet Granulator Wood Log

Wood Log Sawdust Crusher Machine

Place of Origin:

China

Brand Name:

ZHONGDEBAO

Certification:

CE, SGS

Model Number:

EWPM

Contact Us
Request A Quote
Product Details
Product Name:
Moving Roller Wood Pellet Mill
Voltage:
380V Or Accoding To Your Requirement
Style:
Flat Die Pellet Machine
Package:
Wooden Case
Type:
Moving Roller Pellet Machine
MOQ:
1 Set
Usage:
Wood Pellet Making
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard export wooden box packing
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 sets/year
Product Description

Flat Die Wood Pellet Granulator Sawdust Wood Crusher Wood Pellet Mill For Wood Log

Product Description:

The main products produced by our company are: ring die granulator, organic fertilizer granulator, wood pellet machine, straw granulator, biomass granulator, sawdust granulator, wood shredder, wood chipper and other briquetting equipment. Biomass pellet machine is a kind of pellet fuel molding machine that uses various branches, wood, wood chips, corn straw, rice straw, wood bran, wood powder, sawdust and other agricultural waste as raw materials. The pellets made by this machine can be used For use in fireplaces, boilers, biomass power plants.



Features:



1. Wide adaptability of raw materials

The flat die compression molding technology has a large die hole and adopts a large-diameter pressing roller, which can forcefully crush raw materials with large volume and long fibers such as straw, rice husk, and wood chips, and then press them into shape. The crushing requirements for raw materials are not high. In addition, when applying this technology to compress fibrous materials, the moisture content of the raw materials can be compressed and molded at 15%-25% (preferably about 18%). In most cases, it is not necessary to dry the raw materials.



2. High output

When the molding density is constant and the power is the same, the output of flat die compression molding technology is 20%-35% higher than that of other compression molding technologies.



3. Low power consumption per ton of material

On the one hand, due to the large pressing space and the large diameter of the pressing roller in the flat die compression molding equipment, it is necessary to compress and form the raw material with a relatively large particle size, which overcomes the limitations of the ring die extrusion technology and the screw extrusion technology in this respect, and reduces the Reduce the energy consumption of materials in the crushing section. On the other hand, compared with the ring die compression molding technology, the flat die hole area ratio is higher, the material holes are more, and the output density and size are consistent.



4. Long service life of roller mold

Due to the difference in working principle, the linear speed of the pressure roller of the flat die forming compression technology is lower than that of the ring die, so the wear of the roller die is slower, and one side of the working surface can be turned over to use the other side after wear. Improved service life.



5. Molding density can be adjusted

The working gap and pressure between the pressing roller and the die can be adjusted by adding or subtracting shims on the flat shaft and the wheel frame. So as to decide the density of the raw material to be produced. The operation is convenient and time-saving. It can produce medium and low-density compression molding products, and can also produce high-density compression molding products. One machine is multi-purpose.





Technical Parameters:

Parameter Value
Usage Wood Pellet Making
Product Name Wood Pellet Mill
Package Wooden Case
Voltage 380V Or Accoding To Your Requirement
Style Flat Die Pellet Machine
Type Moving Roller Pellet Machine
MOQ 1 Set
Keywords Wood Pellet Machine, Sawdust Pellet Machine, Pellet Mill Machine


Applications:

Applicable to: rice husk, sunflower seed husk, peanut husk and other melon and fruit shells; various wood wastes such as branches, trunks and bark; various crop straws; various chemical raw materials such as rubber, cement and ash. Applied in feed mills, wood processing plants, fuel plants, fertilizer plants, chemical plants, etc., it is the most ideal compression and densification equipment with small investment.



Details And Related Products:

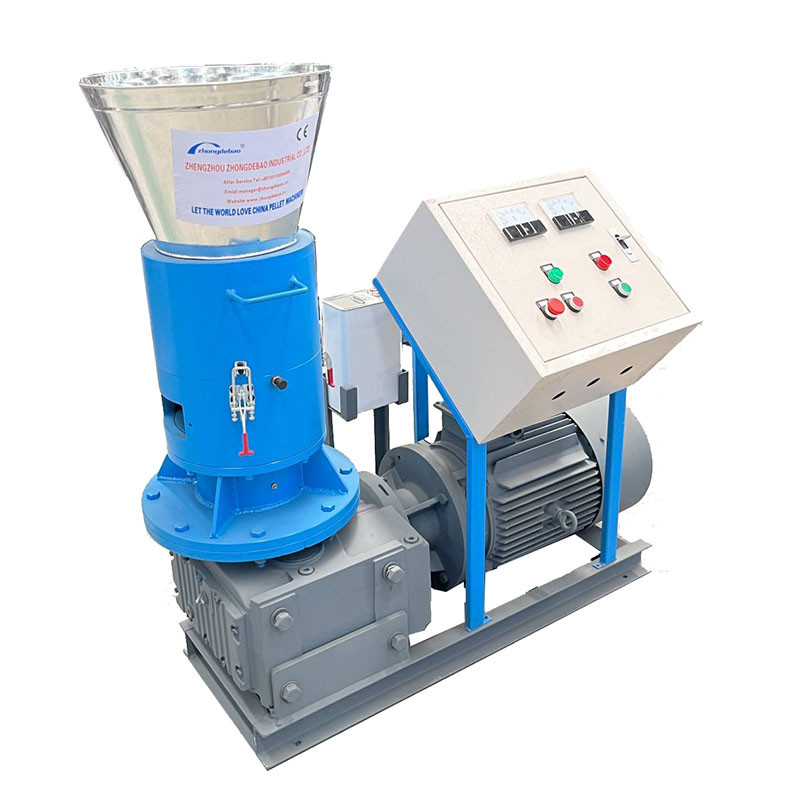

Flat Die Wood Pellet Granulator Wood Log Sawdust Crusher Machine 0

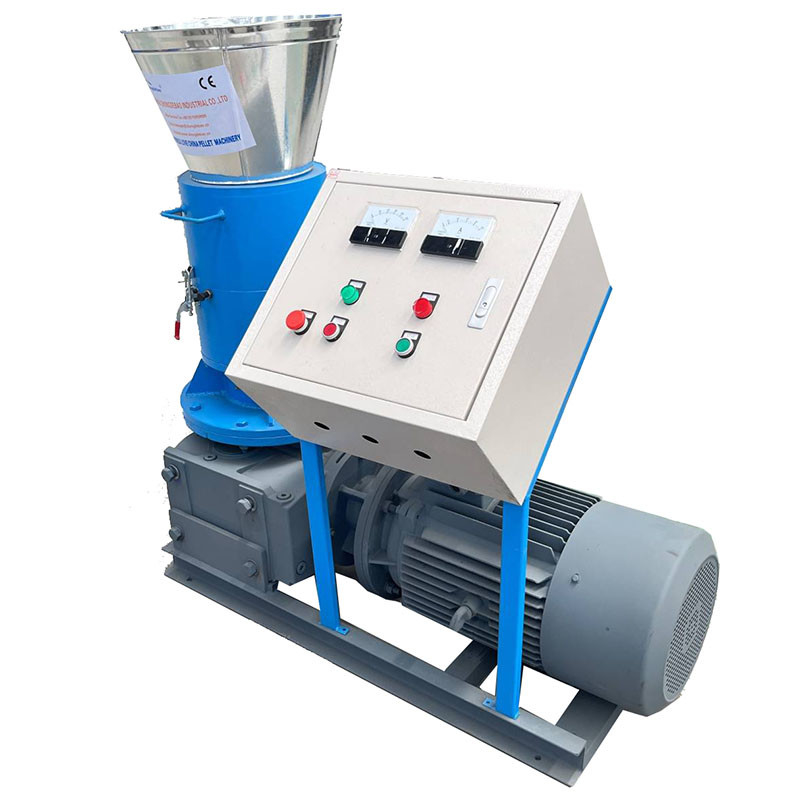

Flat Die Wood Pellet Granulator Wood Log Sawdust Crusher Machine 1

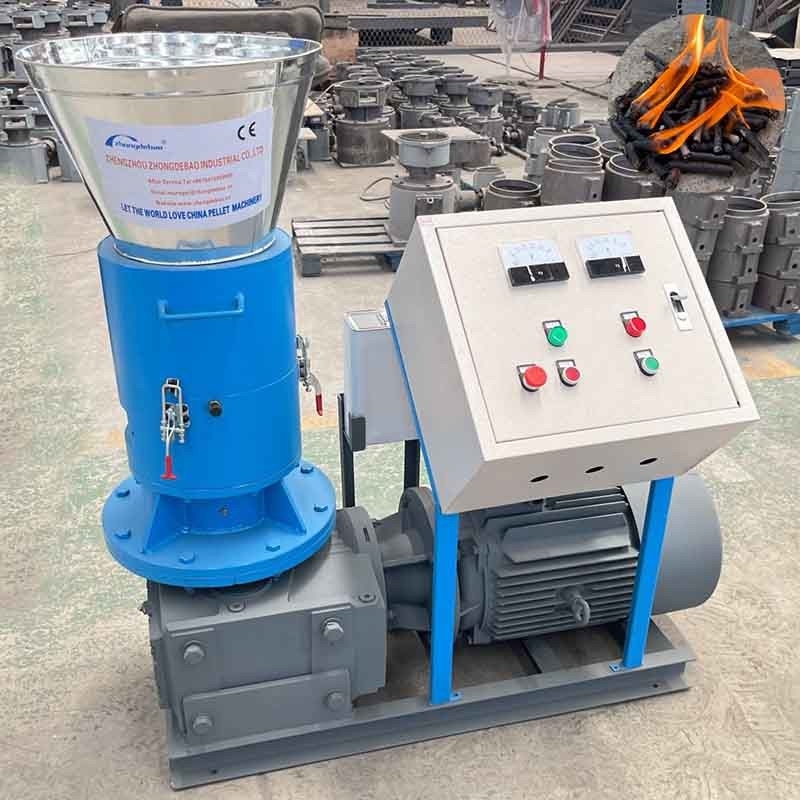

Flat Die Wood Pellet Granulator Wood Log Sawdust Crusher Machine 2Flat Die Wood Pellet Granulator Wood Log Sawdust Crusher Machine 3
