Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line

Biomass Wood Chips Pellet Line

Wood Chips Pellet Line Eucalyptus

Birch Complete Pellet Production Line

Place of Origin:

China

Brand Name:

Zhongdebao

Certification:

CE BV

Model Number:

EWPL-420R

Contact Us
Request A Quote
Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line
Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line
Product Details
Application:
Chips, Biscuit, Snack, Puff Snack/Corn Snack/Extrusion Snack Process Line, Frying Snacks Pellet Making Extruder Machine / Production Line
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Overseas Service Center Available, Video Technical Support
Voltage:
380V/50HZ, 380v, 50hz, 380V/50HZ/Three Phase, 220V/50HZ/Single Phase Or Change As Rquired
Power(w):
45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw
Warranty:
1 Year, One Year, 12 MONTHS
Weight:
500kg, 6000kg, 1200kg, 2-10TON, 2000
Dimension(l*w*h):
30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, As Per Capacity
Condition:
New
Capacity:
100kg/h 200kg/h 500kg/h 1000kg/h To 20tons /h
Material:
Carbon Steel Alloy Steel
Motor:
Simens, Chinese Motor Or Simense
Product Name:
Biomass Wood Pellet Production Line
Color:
Blue White Green Any Color Can Be Customized
Type:
Biomass Wood Pellet Producing Line
Raw Material:
Wood Chips Eucalyptus Pine Birch Poplar Rice Husks, Peanut Husks, Melon Seed Husks, Bamboo Shavings, Bagasse, Palm Husks, Twigs, Branches, Bark, Leaves, Wood Scraps; Large Furniture Factory, Wood Factory, Wood Chips Produced By Various Kinds Of Wood In The
Main Motor:
22kw 30kw 37kw 55kw
Output:
300kg/h 500kg/h 800kg/h 1000kg/h 1.5ton/h 1.8-2tons/h 2.5-3tons/h
Year:
2023
Payment & Shipping Terms
Minimum Order Quantity
1
Price
price negotiable
Packaging Details
with wooden case package or directly loaded in the container
Delivery Time
5-8 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
999 sets per month
RELATED PRODUCTS
Good price New Arrival 1000-5000kg/h Wood Pellet Making Machine High Productivity Set Wood Mill Production Line online Video

New Arrival 1000-5000kg/h Wood Pellet Making Machine High Productivity Set Wood Mill Production Line

Get Best Price
Good price Commercial Automatic wood pellet production line for fuel sale online Video

Commercial Automatic wood pellet production line for fuel sale

Get Best Price
Good price 1Ton / Hour Custom Biomass / Wood Pellet Production Line With CE online Video

1Ton / Hour Custom Biomass / Wood Pellet Production Line With CE

Get Best Price
Good price Complete 1~5T/H Biomass Sawdust Wood Pellet Production Line For Heating online Video

Complete 1~5T/H Biomass Sawdust Wood Pellet Production Line For Heating

Get Best Price
Contact Us
86-371-86546711
Contact Now
Product Description

500kg/h Biomass wood chips Eucalyptus pine birch poplar complete pellet production line

The sawdust pellet machine is a biomass new energy equipment and a granulation equipment for the production of sawdust pellets; Using eucalyptus, birch, poplar, fruit wood, bamboo shavings, and crop straw as raw materials, finished wood shavings are produced through processes such as crushing, drying, granulation, cooling, and packaging. Its finished products are used in biomass power generation, boilers, fireplaces, household equipment, etc.

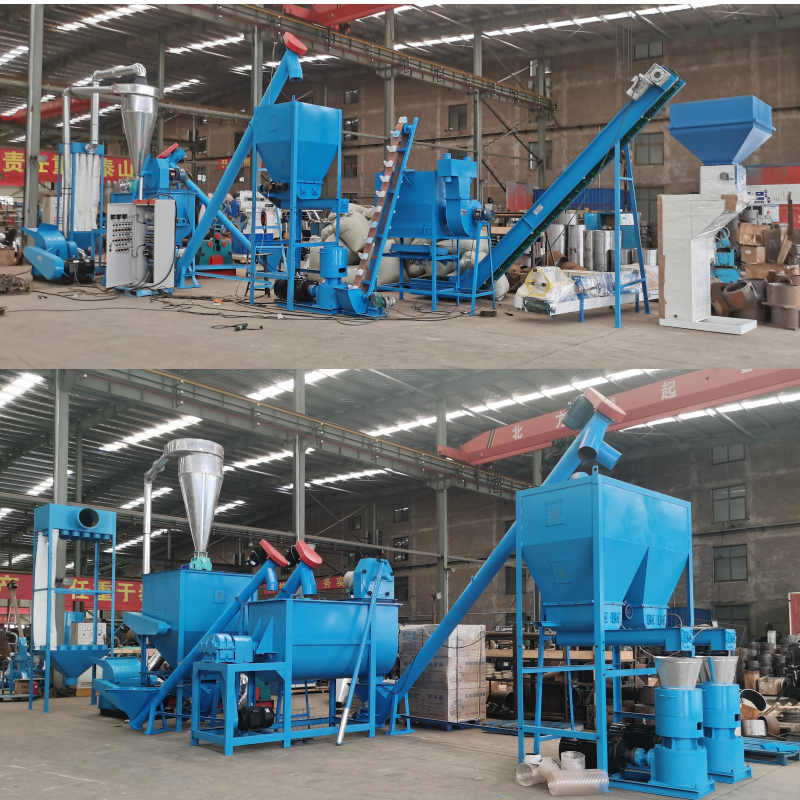

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 0

This 500kg/h Biomass wood chips Eucalyptus pine birch poplar complete pellet production line with total power : 79.91kw



Crushing system :
Cutter grinder : 22kw

Drying system :



Conveyor : 3kw



Drying machine : 4kw


Granulation system :
Screw feeder : 4+0.55kw with broken arch
Stock bin
Feeder : 0.75kw with broken arch
pellet machine : 55kw
Cooling system :
Trommel screen : 5.15kw
Packing system :
Conveyor : 2.2kw
packing machine : 1.26kw
Control system :
Electric control cabinet
Total power : 79.91kw





For the wood biomass pellet mold/die the diameter generally will be 6mm or 8mm .



We also have animal feed pellets machines line , so we can also offer you animal feed pellet line machines . here it is the flat die for making different kinds of animal feeds .

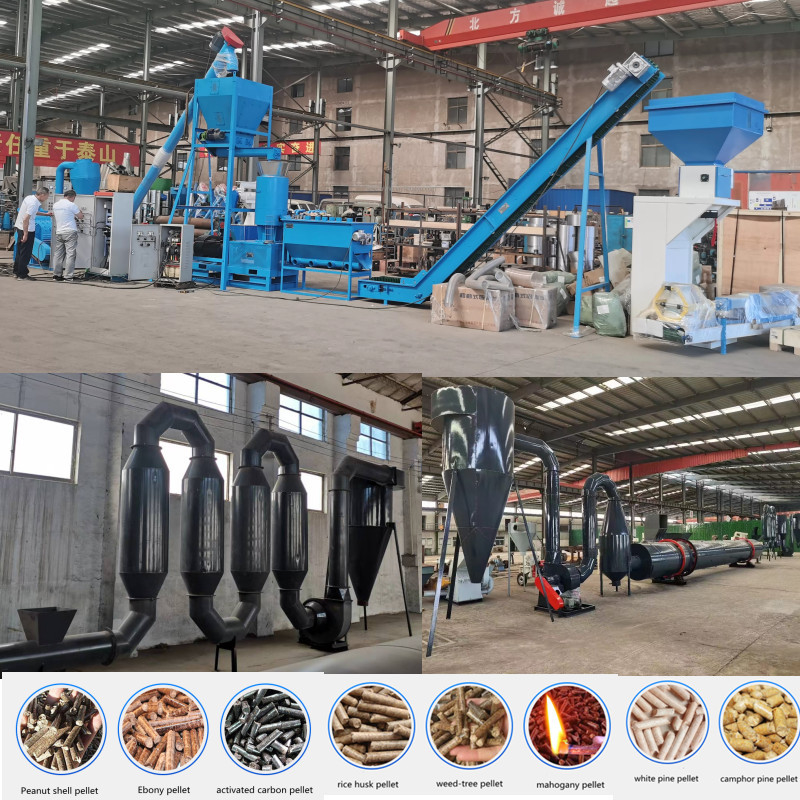

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 1





The finished sample wood biomass pellet for your reference :

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 2



Pellet machine details picture :

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 3

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 4

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 5

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 6

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 7



Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 8

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 9

Biomass Wood Chips Pellet Line Eucalyptus Pine Birch Complete Pellet Production Line 10
