CE Industrial Wood Pellet Machine Commercial Wood Pellet Maker High Density

CE Industrial Wood Pellet Machine Commercial Wood Pellet Maker High Density

CE Industrial Wood Pellet Machine

Industrial Wood Pellet Machine 160kw

Commercial Wood Pellet Maker High Density

Place of Origin:

China

Brand Name:

Zhongdebao

Certification:

CE, BV

Model Number:

EWPL-420, EWPL-550, EWPL-1T

Contact Us
Request A Quote
Product Details
Item Name:
Wood Pellet Production Line
Color:
Customize
Main Market:
Italy, Chile, France, Germany, Poland, Portugal, America, And So On
Spare Part:
Give Away Depending On The Situation
Certificate Of Origin:
Provided For Free
Warranty:
1-2 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Full container
Delivery Time
25-35 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description



                         Industrial Wood Pellet Production Line to make high density pellets for heating

Product Description



The wood pellet production line uses wood chips, bamboo chips and other agricultural and forestry waste as raw materials, through professional machinery, special technology, without any chemical additives, high-pressure cooling and compression molding of granular fuel. Biomass pellet fuel has high calorific value, clean and non-polluting. Compared with traditional fuels, it not only has economic advantages but also has environmental benefits. It is a high-quality environmental protection product that replaces fossil energy.



First of all, because the shape is granule, the volume is compressed, which saves storage space, is also convenient for transportation, and reduces transportation costs. Secondly, the combustion efficiency is high, it is easy to burn out, and the amount of residual carbon is small. Compared with coal, it has high volatile content and low ignition point, and is easy to ignite; the density is increased, the energy density is high, and the combustion duration is greatly increased, so it can be directly applied to coal-fired boilers.





The wood pellet production line is an environmentally friendly, economical and efficient production method, which can effectively utilize wood resources, reduce environmental pollution, and improve economic benefits. It has a very broad application prospect. It is believed that with the continuous advancement of technology and the continuous improvement of society's demand for environmental protection and clean energy, wood pellet production lines will be more widely used and promoted.

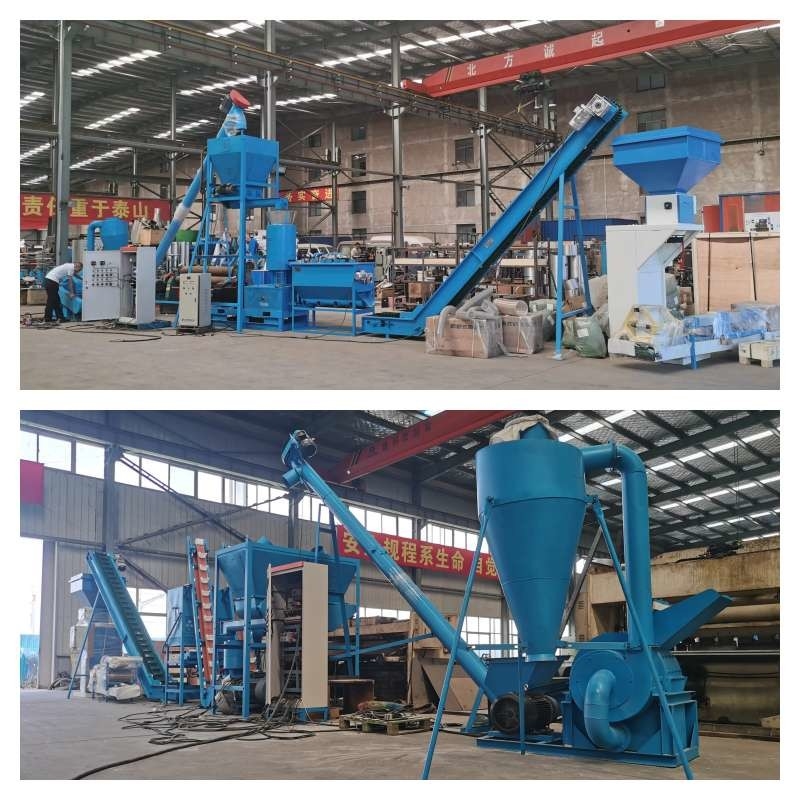

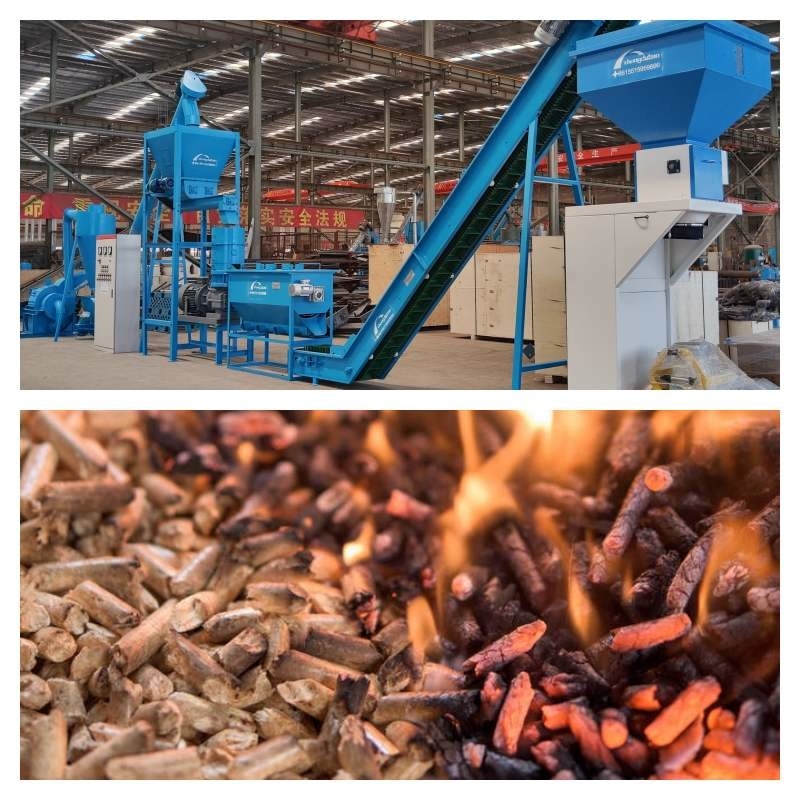

The following is a 2.5-3t/h wood pellet production line including wood chipper, sawdust crusher, conveyor belt, dryer, screw conveyor, ring die pellet machine, belt conveyor, countercurrent cooling machine, packaging machine.

CE Industrial Wood Pellet Machine Commercial Wood Pellet Maker High Density 0
Specification

The following are the parameters of main machines in the production line

Crusher Sawdust Crusher Tumble Dryer Ring Die Pellet Mill  Counterflow Cooler



Packing Machine



600


1300 φ1.2*12m 700 SKLN11 BZJ50



55kw

110kw 15kw 160kw 17kw 1.26



3.5-5t/h



4-6t/h 2-3t/h 2.5-3t/h -

15-50kg,

3-4bag/min


Raw Materials


  • The raw materials that can be used as pellet processing are as follows:



1. Crop straw: crop straw includes cotton stalk, wheat stalk, straw, corn stalk, corn cob and some other grain straw.

2. Sawdust: sawdust has the best particle size, stable production particles, smooth particles, high hardness, low energy consumption.

3. Small wood chips from furniture factory: because the particles are relatively large, it is not easy to enter the wood pellet machine, so it is easy to block, so the wood chips need to be crushed before use.

4. Board mill: Usually these wood board need to be crushed into fine sawdust first before granulating.

5. Wood chips, wood scraps: they also must be broken before use.

6. Coconut shell, peanut shell, rice husk, palm fruit shell, wood shavings, etc.

CE Industrial Wood Pellet Machine Commercial Wood Pellet Maker High Density 1

After-sales Service



1. All products purchased in our company are guaranteed to keep in good repair for one year.

2. We provide technical support for life, and provide video guidence to help you solve the problems.

3. If the parts are broken, we provide replacement parts.

4. If any problems, our technicians and engineers are ready to answer your questions.



FAQ



1. When can I get your quotation?

Basically, a formal quotation can be offered within 48 hours after we get your specific requirements.



2. How long will it take to produce?

Usaually, 25-35 working days after receipt of deposit but balance payment must be paid before shipping.



3. How to pay after confirming an order?

T/T, wire transfer, credit card, paypal, LC, etc.



4. What are your payment terms?

30% deposit before production, 70% balance before shipping.



5. How long is your warranty?

1~2 years not including spare parts and human misuse.

CE Industrial Wood Pellet Machine Commercial Wood Pellet Maker High Density 2

CE Industrial Wood Pellet Machine Commercial Wood Pellet Maker High Density 3
 CE Industrial Wood Pellet Machine Commercial Wood Pellet Maker High Density 4
