600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die

600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die

800kg/H Wood Pellet Production Line

600kg/H Wood Pellet Production Line

Biomass Pellet Making Machine Flat Die

Place of Origin:

HENAN

Brand Name:

Biomass/Wood Pellet Production Line

Certification:

CE/SGS/BV

Model Number:

EWPL-1T

Contact Us
Request A Quote
600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die
600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die 600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die 600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die 600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die
Product Details
Product Name:
Biomass/Wood Pellet Production Line
Component:
Crusher, Pellet Machine, Cooler, Packing
Raw Material:
Wood Chips, Sawdust, Rice Husk, Etc.
Pelletizing System:
Flat Die Pellet Mill
Material Moisture:
10%-20%
Line Color:
Customized
Final Pellet Diameter:
6-12mm
Wearing Parts:
Die , Roller , Blade , Screen
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Packaging Details
20ft or 40ft container
Delivery Time
15-30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 lines every month
RELATED PRODUCTS
Good price New Arrival 1000-5000kg/h Wood Pellet Making Machine High Productivity Set Wood Mill Production Line online Video

New Arrival 1000-5000kg/h Wood Pellet Making Machine High Productivity Set Wood Mill Production Line

Get Best Price
Good price Commercial Automatic wood pellet production line for fuel sale online Video

Commercial Automatic wood pellet production line for fuel sale

Get Best Price
Good price 1Ton / Hour Custom Biomass / Wood Pellet Production Line With CE online Video

1Ton / Hour Custom Biomass / Wood Pellet Production Line With CE

Get Best Price
Good price Complete 1~5T/H Biomass Sawdust Wood Pellet Production Line For Heating online Video

Complete 1~5T/H Biomass Sawdust Wood Pellet Production Line For Heating

Get Best Price
Contact Us
86-371-86546711
Contact Now
Product Description

600-800kg/H Biomass Pellet Making Machine Wood Pellet Production Line With Flat Die Pellet Mill

Product Description:

  • Energy-saving and environment-friendly biomass pellet fuel is mainly for the purpose of seeking new energy, comprehensive utilization of crop waste, reducing environmental pollution, and reducing combustion costs. It provides the general public, enterprises, institutions, and users with special requirements. A new type of fuel with different combustion plants. Its main features are small size, no new pollution, low cost of environmental protection and regeneration, easy transportation and storage, sanitation and convenience, and no garbage production


Production process and operating conditions:

  • Technological process: transport the purchased biomass raw materials such as sawdust, bark, and branches from the raw material site to the workshop by car, input the biomass into the cutting machine by manual feeding, cut into 15-20mm long needle-shaped and foamy fragments, and then send the fragments to the screw conveyor through the cyclone separator, and then use the screw conveyor to preprocess the machine and send them to the granulator for granulation, and then the particles fall into the cooler for cooling. The qualified granules are weighed by the granule storage hopper to the seam machine for packaging, and the packaged granules are sent to the finished product warehouse by the vehicle. The crushed material under the sieve is returned to the granulator for re-granulation


Technical Parameters:

Parameter Description
Product Name Biomass/Wood Pellet Production Line
Component Crusher, Pellet Machine, Cooler, Packing
Final Pellet Moisture 8-12%
Material moisture 10%-20%
Final Pellet Diameter 6-12mm
Line Color Customized
Raw Material Wood Chips, Sawdust, Rice Husk, Etc.
Wearing Parts Die , Roller , Blade , Screen


Operating conditions of biomass wood pellet production line:

  • As the production of biomass fuel pellets, the sources of these sawdust and wood chips are generally wood, branches, straw, corncobs, plates, peanut shells, straw, bark, waste templates, waste fungus bags, roots, scraps, scraps, etc.
  •
  • (1): Material state before granulation: Contains 15-20mm long needle-shaped and foamy straw materials
  • (2): The moisture content of raw materials before entering the granulator is 16-18%
  • (3): The temperature of the pellet fuel before cooling is 130°C
  • (4): After the pellet fuel is cooled, the temperature is 30°C
  •

 Details

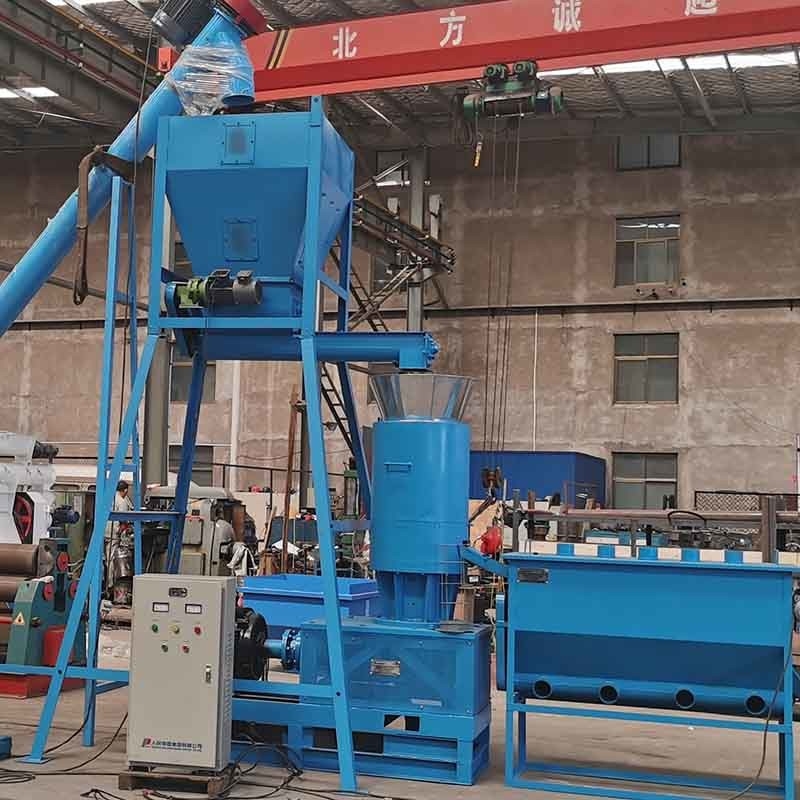

600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die 0

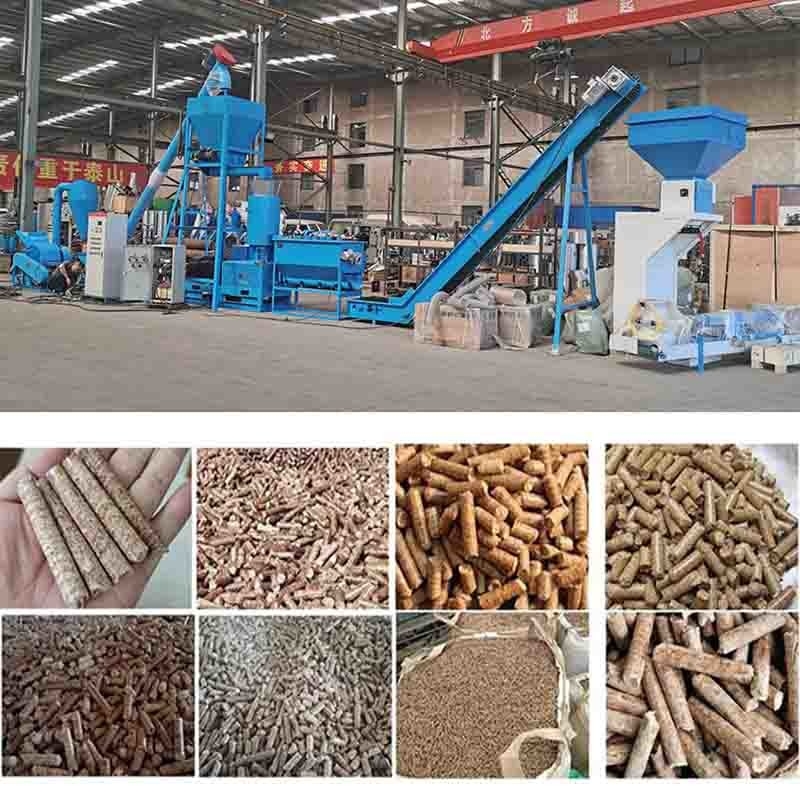

600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die 1

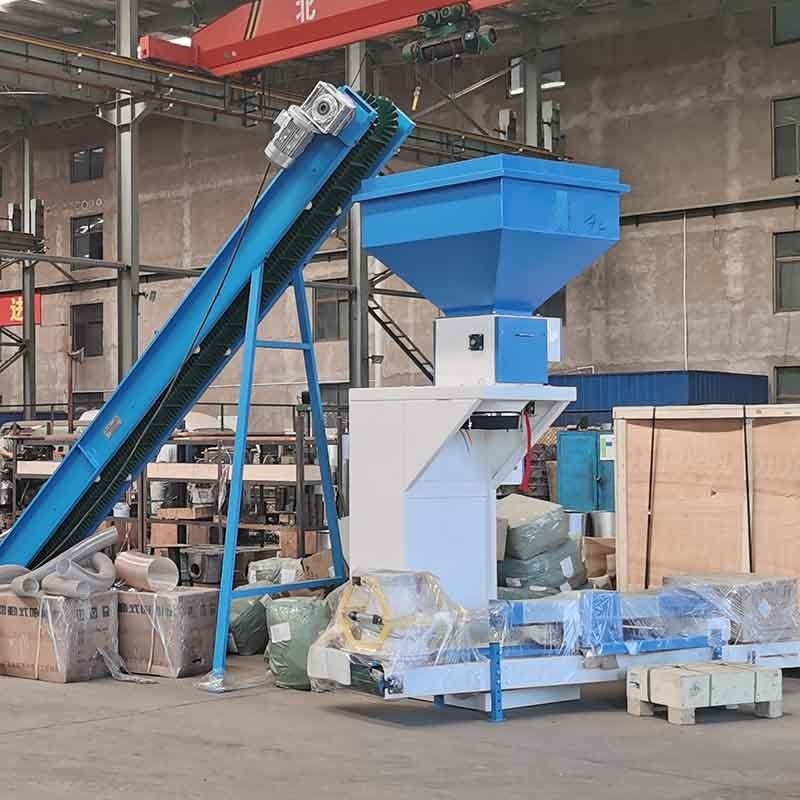

600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die 2

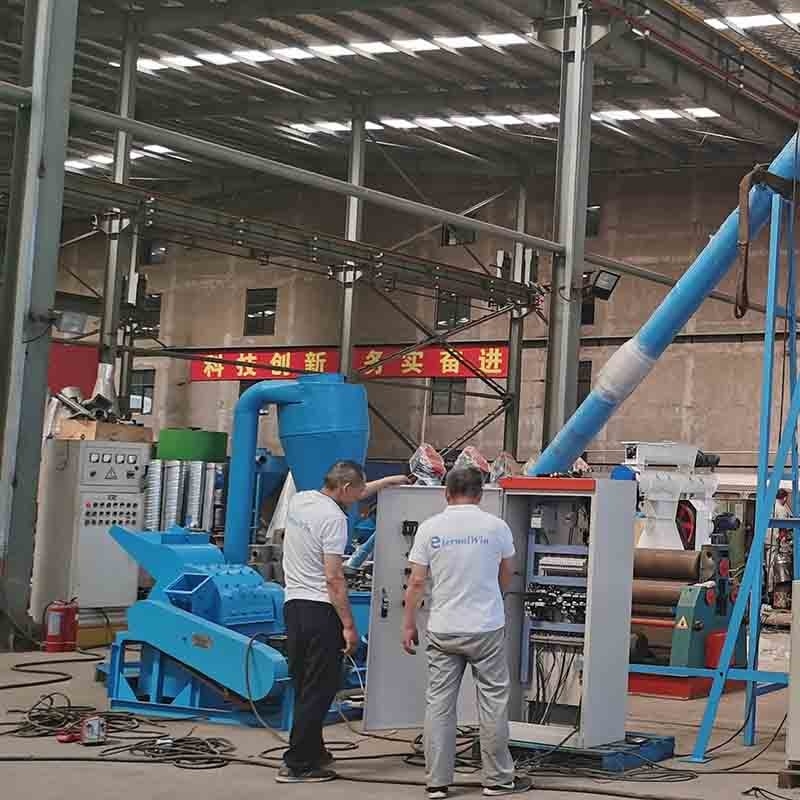

600-800kg/H Wood Pellet Production Line Biomass Pellet Making Machine Flat Die 3
