500-600kg/H Wood Pellet Making Machine Sawdust Wood Pellet Plant

500-600kg/H Wood Pellet Making Machine Sawdust Wood Pellet Plant

600kg/H Wood Pellet Making Machine

Wood Pellet Making Machine Sawdust

Sawdust Wood Pellet Plant

Place of Origin:

HENAN

Brand Name:

Biomass/Wood Pellet Production Line

Certification:

CE/SGS/BV

Model Number:

EWPL-500kg/h

Contact Us
Request A Quote
Product Details
Product Name:
Biomass/Wood Pellet Production Line
Raw Material:
Wood Chips, Sawdust, Rice Husk, Etc.
Capacity:
500 Kg/h
Condition:
New
Warranty:
12 Months
Voltage:
Can Be Customized
Application:
Make Biomass Pellets,Granules,produce Wood Pellet Production Line
Pellet Size:
6-12mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
customize
Packaging Details
20ft or 40ft container
Delivery Time
15-30 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 lines every month
Product Description
500-600kg/H Capacity Wood Pellet Making Wood Pellet Production Line For Wood Pellet Plant

Product Description:

  1. Wood pellet production line - including raw material screening, crushing, drying, mixing, granulation, cooling, dust removal, packaging and other links, easy to operate, stable in performance and easy to maintain. The whole line has a high degree of automation. The production line adopts imported noise reduction equipment and pulse dust removal system. In addition, it has the functions of strong iron removal, automatic lubrication, overload protection, mechanical and electrical chain insurance, etc. It is suitable for granulating waste crops such as corn stalks, flower stalks, rice stalks, wood chips, rice husks, peanut shells, melon seed shells, rapeseed meal, alfalfa, bark, etc. The finished particles are smooth and beautiful. It is a complete set of sawdust production equipment.


Features:



  1. Product main features:
  2. 1. This series is mainly used to press crushed sawdust and pasture into granules, fed by forced feeder, type transmission parts, ring die, pressure roller and hoop.
  3. 2. The main transmission adopts high-speed gear transmission, and the output is about 20% higher than that of the belt transmission type.
  4. 3 Imported bearings and oil seals ensure efficient, stable and low-noise operation of the whole machine. The pressing room is equipped with a suction cooling system.
  5. 4. The feeder adopts a frequency conversion motor to ensure the quality of the pellets.
  6. 5. A variety of aperture ring dies are available for selection. The ring die has a long service life, smooth grain output and high quality.
  7. 6. International level compensating serpentine spring coupling with novel structure, compactness, safety, low noise and low failure performance



Technical Parameters:

Parameter Description
Pelletizing System Flat Die Pellet Mill
Final Pellet Moisture 8-12%
Final Pellet Diameter 6-12mm
Final Pellet Length 10-30mm
Component Crusher, Pellet Machine, Cooler, Packing
line color Customized
wearing parts Die, Roller, Blade, Screen
Product Name Biomass/Wood Pellet Production Line
Material moisture 10%-20%
Raw Material Wood Chips, Sawdust, Rice Husk, Etc.


Applications:

  1. The wood pellet machine is a new biomass energy equipment and a pelletizing equipment for the production of wood pellets. It uses eucalyptus, birch, poplar, fruit wood, bamboo chips, and crop straw as raw materials to produce finished wood pellets through processes such as crushing, drying, screening, granulating, cooling, and packaging. Its finished products are used in biomass power generation, boilers, fireplaces, household equipment, etc.

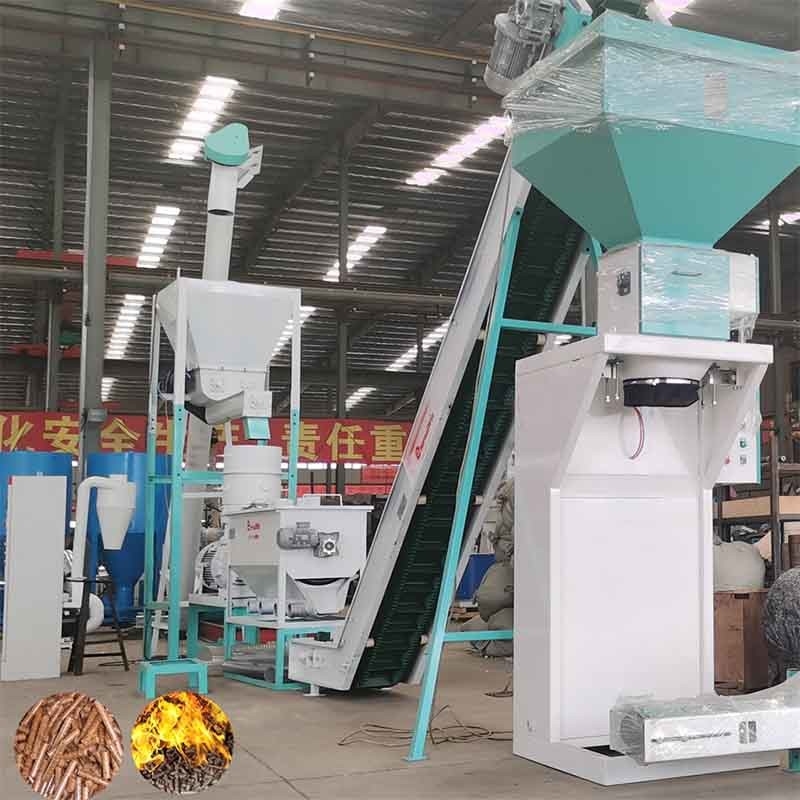

500-600kg/H Wood Pellet Making Machine Sawdust Wood Pellet Plant 0

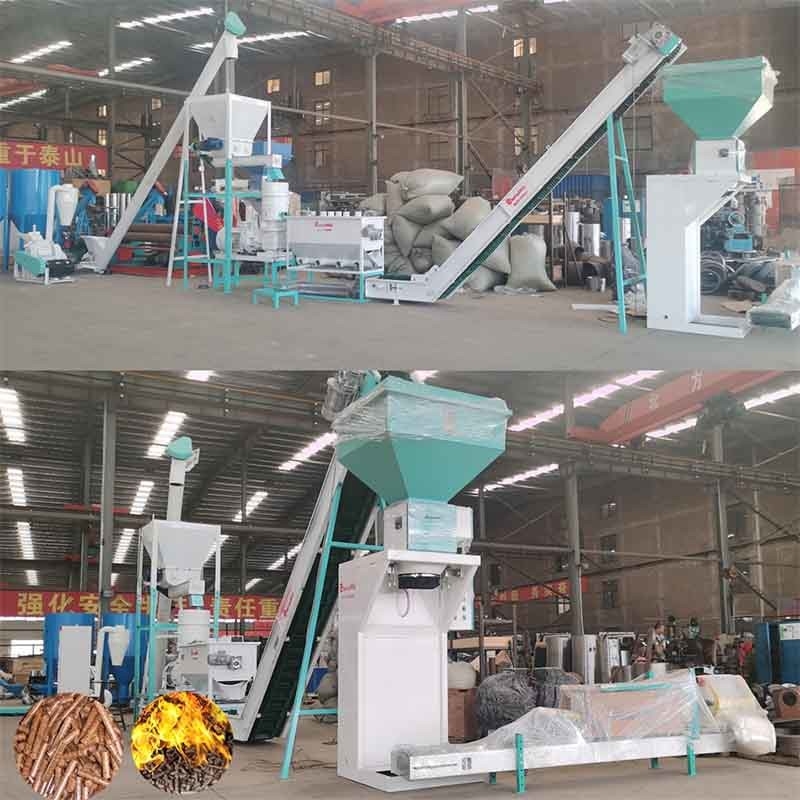

500-600kg/H Wood Pellet Making Machine Sawdust Wood Pellet Plant 1

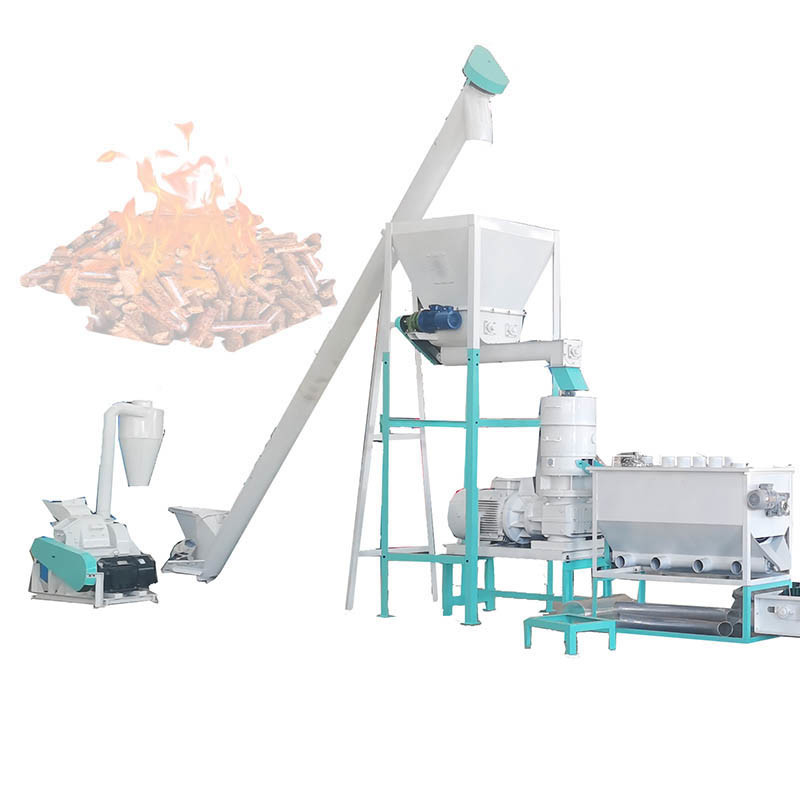

500-600kg/H Wood Pellet Making Machine Sawdust Wood Pellet Plant 2

500-600kg/H Wood Pellet Making Machine Sawdust Wood Pellet Plant 3
