Corn Stalks Biomass Power Plants Pellet Mill Machine Wood Pellet Fuel Making Machine
Product Description:

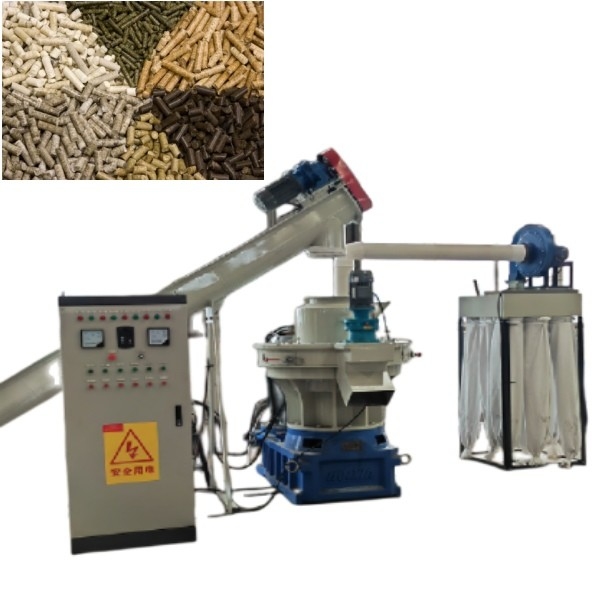

Biomass Pellet Machine
The biomass pellet machine is a new type of pellet fuel molding machine which utilizes various branches, wood chips, corn stalks, rice straw, wood bran, wood powder, sawdust and other agricultural waste as raw material.
The pellets produced by this machine are widely used in fireplaces, boilers and biomass power plants to provide high-quality renewable energy.
The biomass pellet machine also has the advantages of high fuel value, low smoke emission, complete burning, convenience and environmental protection. Therefore, with its wide application, the biomass pellet machine is playing an important role in providing renewable energy.
Features:

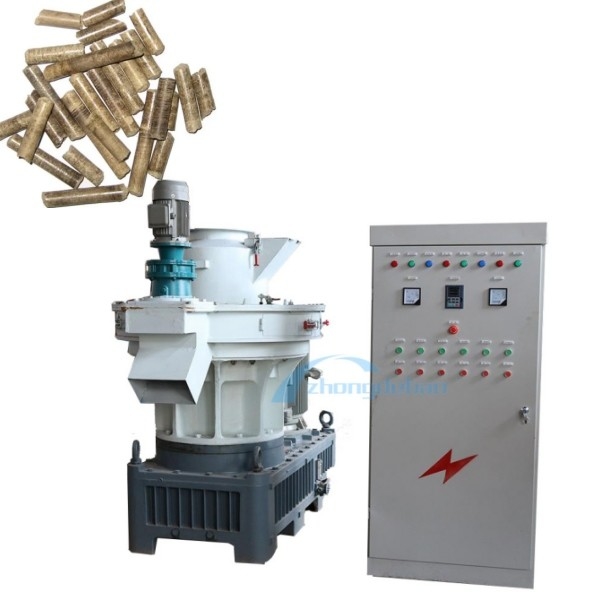

Advantages of the Vertical Ring Die Pellet Machine
The pellet machine that we manufacture adopts a mature vertical ring die pellet machine in the market, which has many advantages over the flat die one. Primarily, four elements make this model a much better choice for applications.
First of all, the vertical direction of the mold. In vertical feeding, the mold is placed flat and mouth is pointing upward. Whereas the sawdust's specific gravity is light, it flows directly from top to bottom. The pressure wheel then rotates and throws it around the mold to make the particles evenly compressed.
Secondly, the machine is easy to fix due to its static and vertical installation, and it runs smoothly as well. Thirdly, the performance of the vertical ring die granulator is stable as it divides the material via the rotation of the pressure wheel, thus producing no heavy material or vibration.
Fourthly, the machine has an open upward structure and an air-cooled cloth bag for dust removal as well as automatic refueling, both of which contribute to efficient heat dissipation. Also, its large cast steel bearing seat and enlarged shaft can bear no pressure, is not easy to break and ensures a long life span.
Furthermore, the two-layer mold allows the above- and below-level uses, reducing the cost and increasing the efficiency.
Technical Parameters:
| Model |
Motor(KW) |
Ring die inner diameter(MM) |
Capacity(T/H) |
| EW450 |
55 |
450 |
0.8-1 |
| EW560 |
90 |
560 |
1.2-1.5 |
| EW600 |
110 |
600 |
1.8-2 |
| EW600A |
132 |
600 |
2-2.5 |
| EW700A |
160 |
700 |
2.5-3 |
| EW850 |
250 |
850 |
3-4 |
Applications:Uses and Prospects
In recent years, Europe has dominated the global industrial wood pellet market with a wood pellet market value of USD 2.76 billion. At the same time, in Denmark and Sweden, pellets were used in large power plants, medium-sized district heating systems and small residential heating. In Germany, Austria, Italy and France, pellets are mainly used for small residential and industrial heating. At this stage, wood pellets have become a necessity in the lives of people in European countries.
The finished pellets are mainly used for biomass power generation, which can be used for large-scale power generation and heating in power plants and heating for private houses.
