CE Approve Floating Fish Feed Pellet Production Line Pet Feed

CE Approve Floating Fish Feed Pellet Production Line Pet Feed

Floating Fish Feed Pellet Production Line

Pet Floating Fish Feed Production Line

Place of Origin:

Henan, China

Brand Name:

Zhongdebao

Certification:

CE, SGS, BV

Model Number:

DGP40-DGP200

Contact Us
Request A Quote
Product Details
Name:
Floating Fish Feed Production Line
Capacity:
50-8000kg/h
Component:
Grinder, Extruder Machine, Dryer, Cooler, Seasoning Machine, Packing Machine
Feed Pellet Size:
0.6-18mm. Customized
Raw Materials:
Meal, Grain...
Main Motor Power:
5.5-132kw
Voltage:
380V/50HZ/3Phase, Could Be Customized
Package:
Wooden Box For Import Parts
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 2000-30000 set
Packaging Details
Wooded package, full container
Delivery Time
15-25 days
Payment Terms
T/T/western union ect, L/C, D/A, D/P, MoneyGram
Supply Ability
200unit/month
Product Description

Product Description



The Floating Fish Feed Production Line is the perfect solution for fish feeder production. It is a complete production system that can automatically produce fish food of different sizes.   The extruder is widely used in aquatic products, pet feed aquaculture farmers, large, medium and small feed factories.

The various functions of the extruder make it widely used in the fields of feed, food and industry. Based on the extruder (dry method, wet method, single-screw or twin-screw), a complete production line can be prepared according to customer needs. The production line mainly includes crushing system, puffing system, drying system, cooling system, seasoning system and packaging system. There is a general power distribution cabinet, which is easy to operate and saves labor costs.

It is a great solution for large farms and feed manufacturers who need a high-performance fish feeder production line.

The main working principle of extrusion puffing is to extrude the material from the die hole through extrusion friction under high temperature and high pressure. Part of the water in the material evaporates rapidly and causes puffing. High temperature processing can ensure the hygiene and safety of the feed, and also improve the The degree of maturity of starch is conducive to the digestion and absorption of feed by fish. A good fish feed has a float time of up to 12 hours, with at least a 6 hour float time. The feed floats on the water surface, which can directly observe the feeding situation of the fish and adjust the feeding amount in time. Secondly, the floating fish feed will not dissolve in the water for a long time, which can reduce the pollution of water quality and is very beneficial to the growth of fish.

We are a OEM & ODM factory, we could customize the extruder feed line according to your requirement.



Features



  • Reliable work, sturdy and durable, low failure rate, easy operation and maintenance.
  • The main components are made of special alloy materials through heat treatment, and have a long service life. Only a few manufacturers in China use special wear-resistant alloy precision casting. Although it is 2-3 times higher than conventional materials, the overall production cost is greatly reduced.
  • The screw design has a powerful self-cleaning function, and the screw channel can be purified by itself
  • In the process of food or feed puffing, raw materials can be pasteurized or sterilized by puffing technology
  • Easy to use and save labor cost. The transmission is stable and the noise is low.


Specification



Parameter Value
Main Motor Power 5.5-132kw
Screw Conveyor Power 0.75kw-3kw
Feeding System Automatic
Capacity 50-5000kg/h
Material Stainless Steel
Feed Pellet Size 0.6-18mm
Voltage 380V/50HZ/3Phase, customized
Dimension The layout could be offered after confirm the proposal


Applications



The feed pellet size could be customized according to different animals.

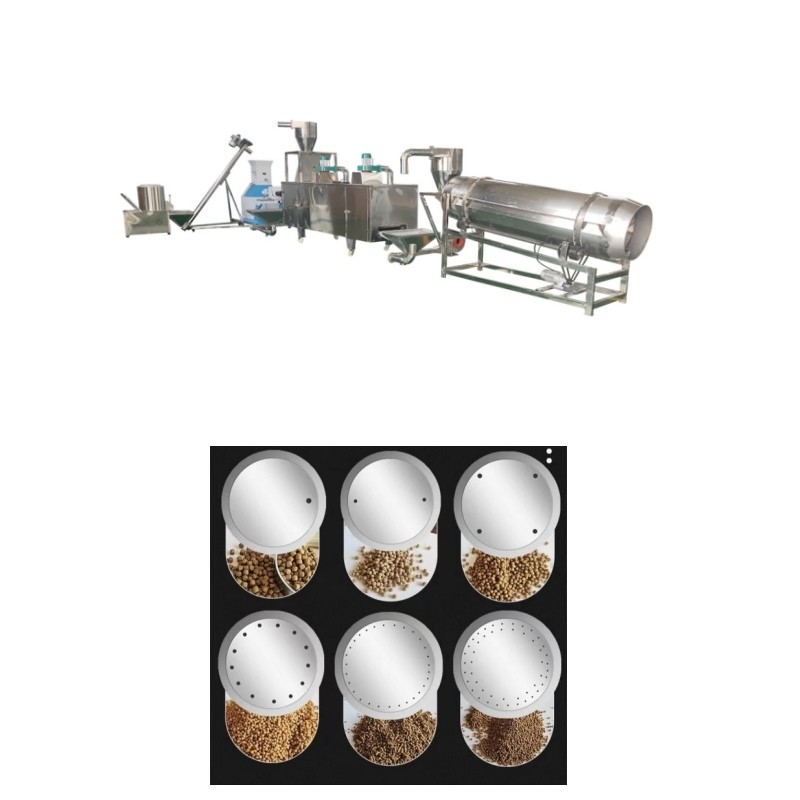

CE Approve Floating Fish Feed Pellet Production Line Pet Feed 0

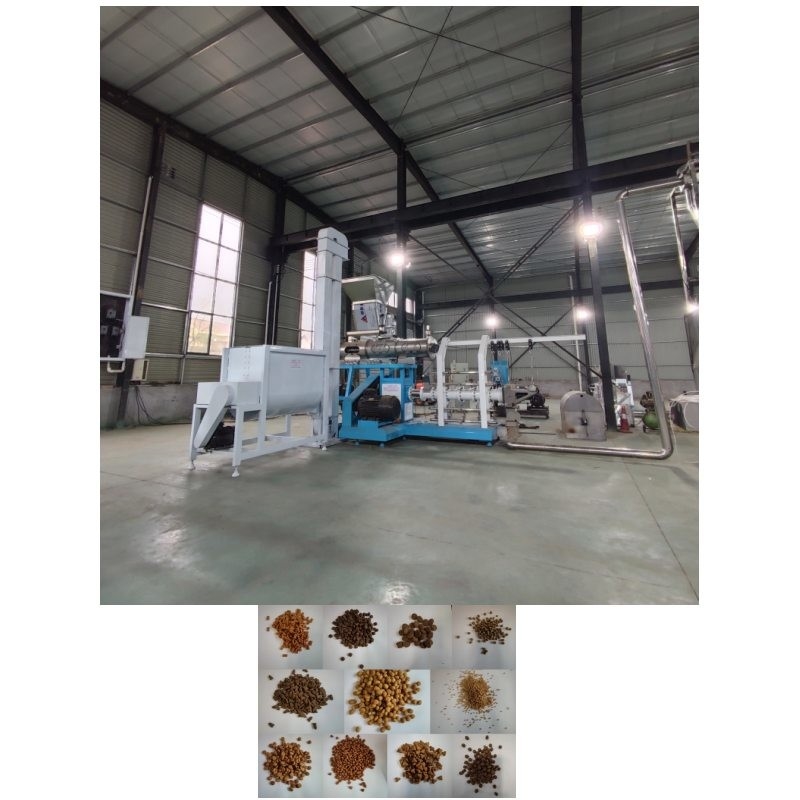

Factory Pictures



CE Approve Floating Fish Feed Pellet Production Line Pet Feed 1

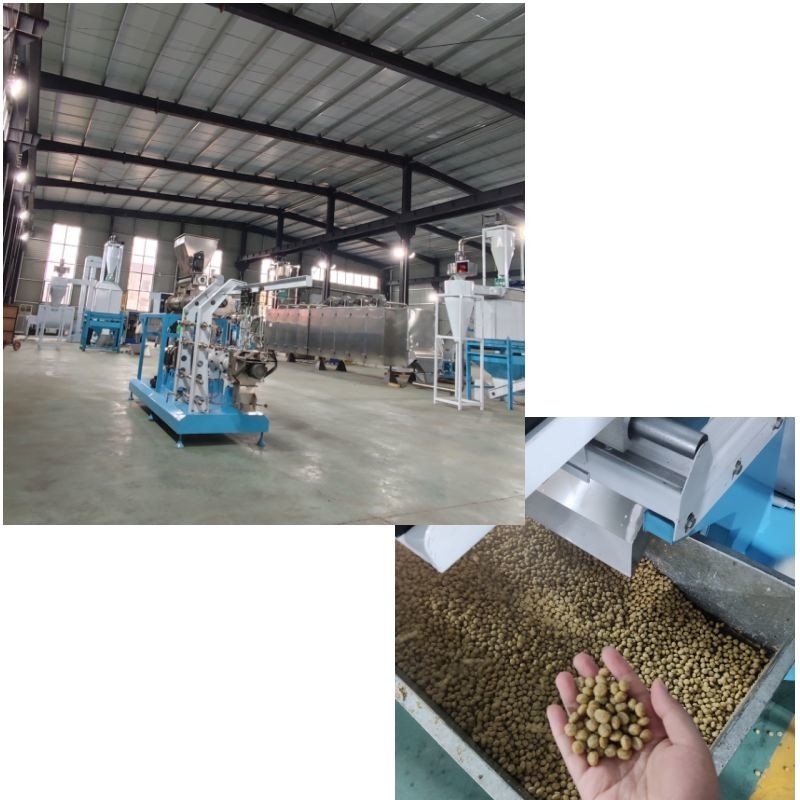

Packing and Shipping



CE Approve Floating Fish Feed Pellet Production Line Pet Feed 2
