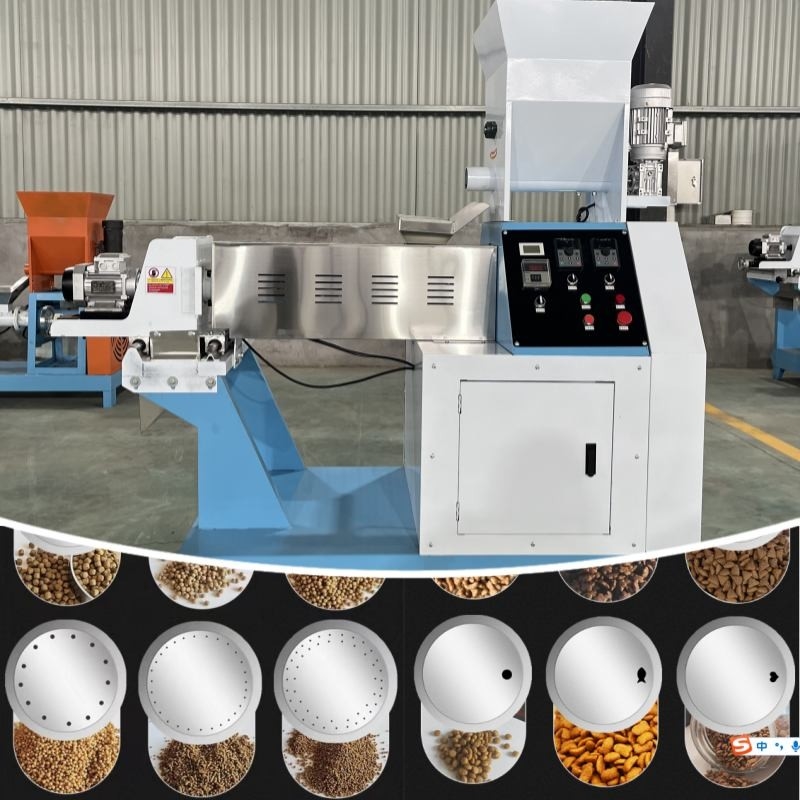

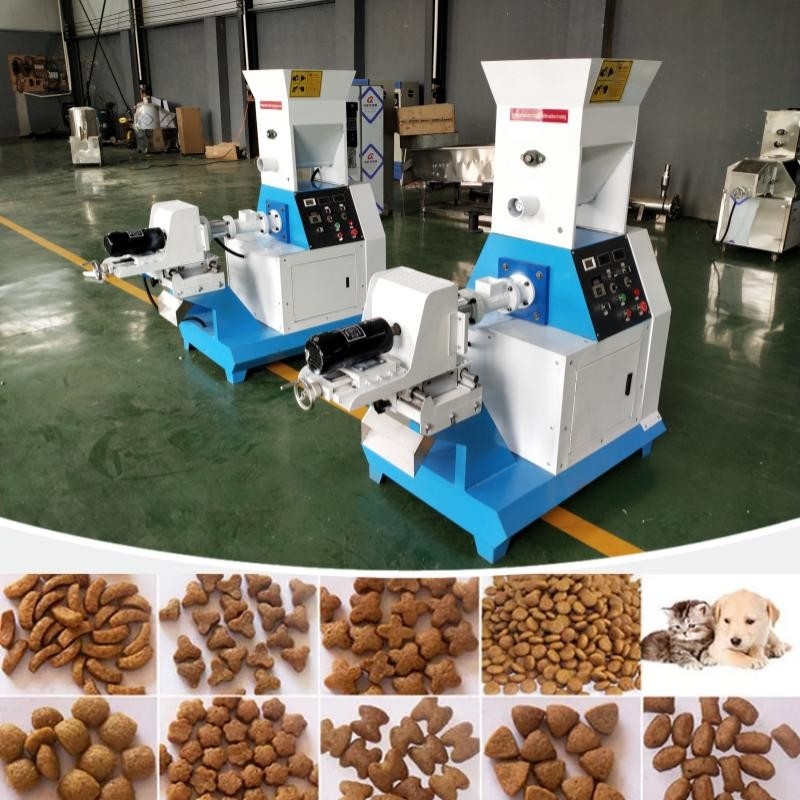

Electric 300-350kg/H Fish Feed Extruder Pellet Food Extruder Dog Food Extruder
Product Description:
The extruder is mainly composed of a barrel and a screw that rotates and expands in the barrel of the extruder. There are two types of extruders: single-screw extruder and twin-screw extruder. During the extrusion process, the material enters the mold cavity from the feeding port, and when it is pushed forward by the screw, it is squeezed, mixed, compressed and sheared. Due to the action of driving force, frictional force, shearing force and external heating, the material becomes heated under pressure, reaches a state of high temperature and high pressure, and matures into a modified paste. When the material is extruded from the front die hole, the temperature and pressure suddenly drop to normal temperature and normal pressure, causing the moisture in the material to vaporize and evaporate rapidly, and the volume expands rapidly to become a puffed product.
The structure of the single-screw extrusion extruder is relatively simple, and the price is relatively low. Its development is early, the technology is relatively mature, and the equipment is stable. It has been used as the main equipment in the production of extruded aquatic feed for more than 40 years. It is widely used in Luo It is used in the production of low-protein adult fish feed for non-fish, squid, grass carp, carp, etc. In addition, in the production of low-grade feed such as mixed fish feed in ponds, the single-screw extrusion extruder has obvious advantages. Its raw materials do not need to pass through ultrafine powder, and 95% of the particle size can pass 30-50 mesh, which greatly reduces equipment investment costs. Increased production efficiency.
Advantages:
1. Integrated control panel, electric cabinet box, easy to operate safely
2. Better materials
3. The frame steel plate is folded, and the stability is better
4. Ball bearings, easy to disassemble and clean
Technical Parameters:
| Model |
Lx50 |
Lx65 |
Lx75 |
Lx80 |
Lx100 |
| Main Power(kw) |
11 |
15 |
18.5 |
22 |
37 |
| Capacity(kg/h) |
80-90 |
150-200 |
200-250 |
300-350 |
400-500 |
| Feeding Power(KW) |
0.4 |
0.55 |
0.55 |
1.1 |
1.1 |
| Cutting Power(kw) |
0.4 |
0.55 |
0.55 |
0.75 |
1.5 |
| Packing Size(cm) |
180*80*112 |
180*97*124 |
200*97*134 |
230*107*142 |
290*120*160 |
| Weight(kg) |
380 |
480 |
680 |
800 |
1100 |
Applications:
This extruder is suitable for the production of fish and shrimp, turtles, dogs, cats, birds and animal feed, because the equipment investment is small, is the ideal choice for small and medium-sized manufacturers.
Support and Services:
1. Quality Warranty 1 year
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. Our technicians will give you professional advice and guidance when you encounter problems, and we can show you a video if necessary
5. When you got the goods, test them, and give me a feedback.If you have any questions about the machine, contact with us, we will offer the solution for you.
