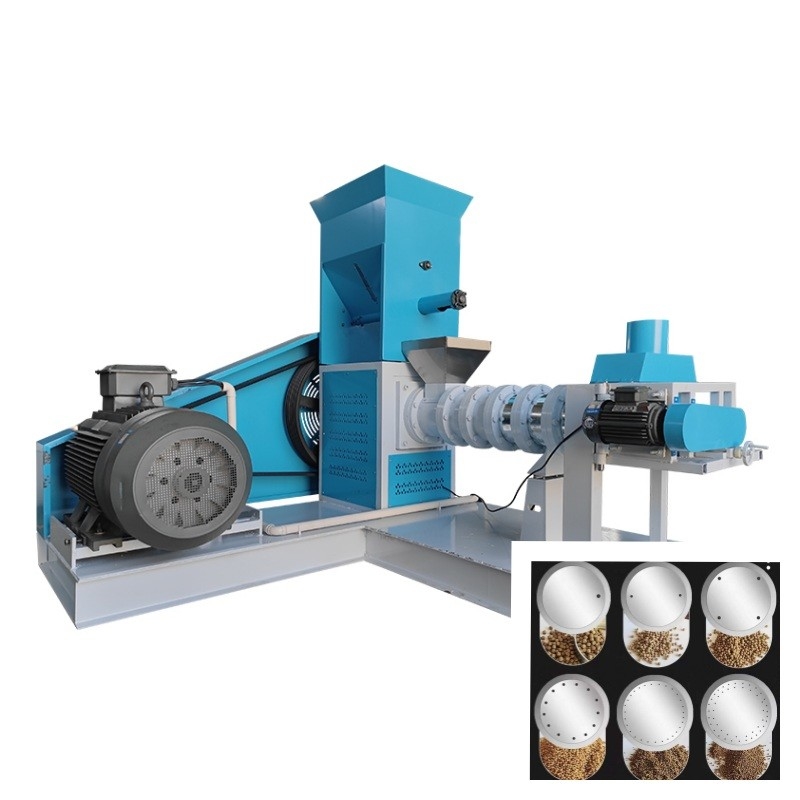

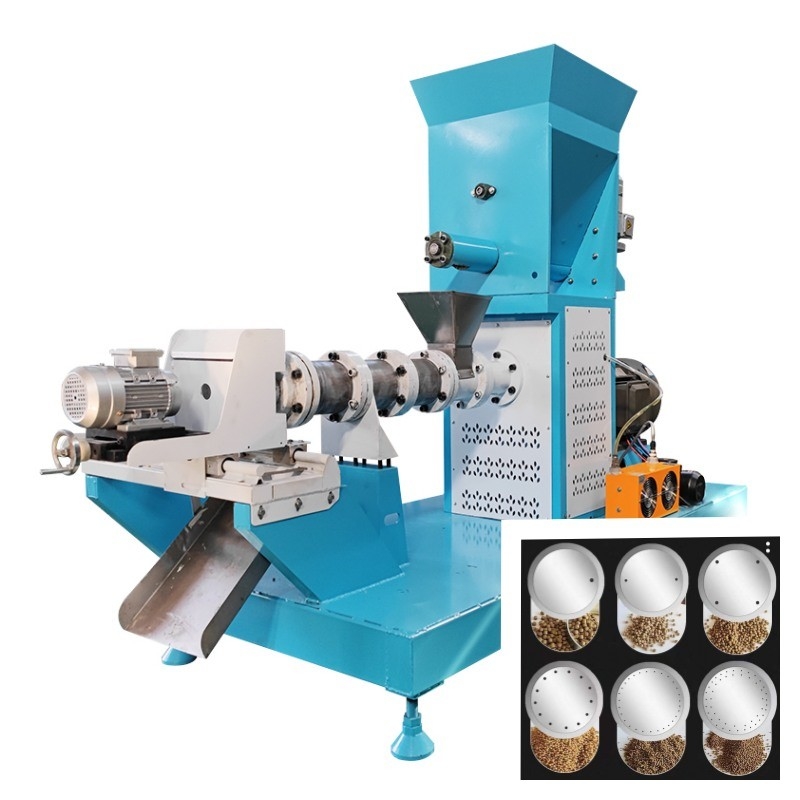

500kg/H Floating Fish Feed Extruder With 1-12mm Pellet Pet Food Extruder With CE
Product Description:
The feed extruder is suitable for professional farmers, small and medium-sized feed factories and research institutions. Under the condition of the same feed formula, the cost of self-made extruded feed is about 60%-80% lower than the market price; the extruded feed pellets produced by this machine are neat and smooth, and the floating water surface does not sink for more than 12 hours, and does not pollute the water source. After sterilization, it is beneficial to reduce fish disease.
Feed extruder is divided into dry method and wet method two kinds, wet extruder is in the dry method extruder on the basis of adding a conditioner, its purpose is to raise the temperature of the material, soften and mature the material, add a certain moisture. The efficiency of wet extruding is higher than that of dry extruding, and the service life of spiral and extruding cavity wearing parts is longer.
Principle of pellet feed extruder:
This machine is pellet feed extruding equipment. It adopts cutter shaft positioning spring and cutting mode, realizes stepless speed change, and can cut the output material into required length products at will. The design structure is simple, easy to assemble and disassemble, and easy to operate. The screw and the screw are made of wear-resistant, high-temperature and high-humidity materials, which are first tempered and then heat-treated to form, which has the advantages of wear resistance and long life. A new pressurized die device is installed inside to ensure the feed output and quality; the electric heating device improves the feed expansion rate, and the main shaft bearing ensures the safety and reliability of the extruder.
Features:
- Novel design, high output, stable operation
- Easy to disassemble, easy to clean the screw
- Low equipment investment and high production efficiency
- The main components are made of special alloy materials and refined through heat treatment, which has the characteristics of high wear resistance and long service life.
- The main engine adopts frequency converter speed regulation technology, which makes the equipment powerful, stable operation and energy saving;
Technical Parameters:
Dry Type Single Screw Feed Extruder Technical Parameters:
| Model |
DGP70 |
DGP80 |
DGP100 |
DGP135 |
DGP160 |
| Capacity(kg/h) |
200-250 |
300-350 |
500 |
750-800 |
1000-1200 |
| Main Power(kw) |
18.5 |
22 |
37 |
75 |
90 |
| Feeding Power(kw) |
0.4 |
1.5 |
1.5 |
1.5 |
1.5 |
| Cutting Power(kw) |
0.4 |
0.75 |
1.5 |
2.2 |
2.2 |
| Packing Size(mm) |
1340*1510*880 |
1360*1950*900 |
1800*2600*1150 |
2200*2800*1200 |
2300*3000*1300 |
| Weight(kg) |
490 |
600 |
800 |
950 |
1200 |
Applications:
The feed extruder production equipment can adjust the process parameters such as raw materials, temperature, moisture, etc., so that the product has the characteristics of novel shape, unique taste, rich nutrition, and fine tissue, which is suitable for the taste of different pets. This dry feed extruder is widely used in the production of dog, cat, fish, shrimp, fox, bird and various pet feeds, and is an ideal choice for different manufacturers.
Support and Services:
Dry fish feed extruder machine technical support and service:
We are committed to providing customers with the best quality technical support and service for dry fish feed extruder. Our team of experts is available 24/7 to help answer questions, provide troubleshooting and technical advice, and fix any defects in your product.
We offer a variety of support options, as follows:
Phone support: Our knowledgeable technicians are available to answer any questions you may have about the product.
Email support: Our experts can provide technical advice and troubleshooting help via email.
Repair: If your product needs repair, our technical can guide you how to repair.
Warranty: All of our products are covered by a one-year warranty, so you can rest assured that if anything goes wrong, your product will be covered.
Our team is committed to providing the best service and support for our dry fish feed extruders. If you have any questions or concerns, please feel free to contact us.
Packing&Shipment
We are all packed in standard export wooden cases, and we will take photos and video before delivery.
