Product Description:
Our company developed a complete feed production line for domestic and foreign livestock and poultry farmers, farmers, rural cooperatives and feed manufacturers. This production line consists of various operations, namely crushing, mixing, granulation, cooling, screening, packaging, and conveying equipment. The process flow is designed to be comprehensive and efficient with high adaptability, serving different types of users. The feed it produces satisfies the needs of livestock, cattle, sheep and other animals with both a full price formula feed and a grass feed.
Features:
Advantages of Granulation in Feed Industry
With the development of animal husbandry and the advancement of feed industry technology, granulators are important equipment in the granulation process. The production efficiency of pelletizers seriously affects the economic benefits of feed factories. In order to improve production efficiency, it is not only necessary to have good equipment, but also to design a reasonable granulation machine production process. Granulation is widely used in livestock and poultry industries such as pigs, broilers, cows, sheep, and fish.
Advantages of feed pellets
- Increase particle density, reduce transportation costs, and facilitate transportation.
- Improve feed digestibility. In the process of feed granulation, the combined effects of dry moisture, temperature, and pressure make starch gelatinize, enhance enzyme activity, and enable animals to digest feed more quickly, improving feed conversion rate.
- Prevent animals from being picky eaters, ensure a good nutritional formula, and reduce feed loss.
- Sterilization reduces the activity of microorganisms. Steam high-temperature tempering and granulation can kill Salmonella in animal feed.
- Increase animal feed intake and reduce feeding waste.
- Every time the formula is changed, animals are more receptive.
Feed Production Machine

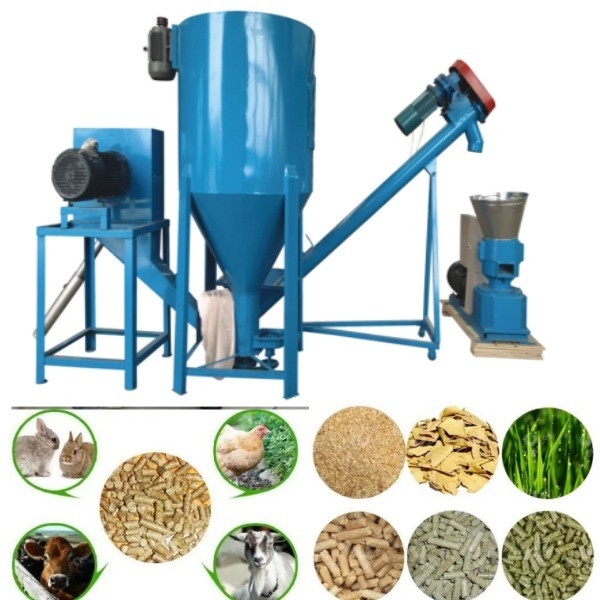

In order to provide you with the most refined, simplified, and cost-effective products, we have launched a newly developed feed small unit feed production machine with two designs to choose from:
- Mixing and crushing integrated machine (for grains and grains) - Spiral feeding machine - Particle machine - Cooling machine (optional or optional)
- Crusher - Horizontal Mixer - Spiral Feeding Machine - Particle Machine - Cooling Machine (optional or optional)
Technical Parameters:
| Model |
Capacity (KG/H) |
Motor (KW) |
| ZLSP120B |
60-90 |
3 |
| ZLSP150B |
90-150 |
4 |
| ZLSP200B |
200-300 |
7.5 |
| ZLSP230B |
300-400 |
11 |
| ZLSP260B |
400-600 |
15 |
| ZLSP300B |
600-800 |
22 |
| ZLSP400B |
800-1200 |
30 |
Applications:

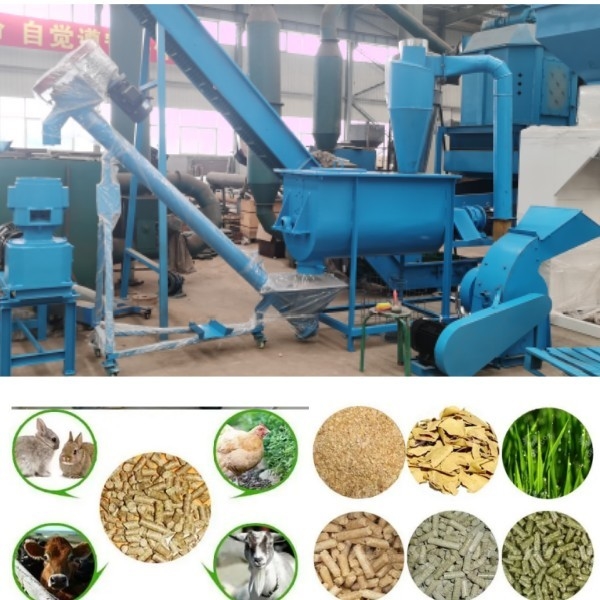

The operational principle of a small feed complete set of small units is quite simple. It consists of several key components, starting with a pulverizer, which is used to crush various feed raw materials into powder-like particles. These particles are then transported to a mixer, although some powder materials that do not require being crushed can be directly fed into the mixer through a screw conveyor.
Once the raw materials are in the mixer they are evenly mixed through double screw belts. Afterward, they are transported to the granulator through a screw elevator. The particles produced by the granulator are subsequently cooled and screened by a cooling and screening machine, and any unqualified particles are re-pelletized.
Finally, the qualified finished granules are packaged via a packaging machine.
