100-1200kg/h Animal Feed Flat Die Pellet Mill Animal Feed Pellet Production Line 1-12mm Final Pellet Size
Product Description:
Our company has developed a comprehensive feed processing production line to fulfill the needs of domestic and foreign livestock and poultry farmers, farmers, rural cooperatives and feed manufacturers. This production line consists feeding, crushing, mixing, granulation, cooling, screening, packaging, and conveying equipment. It has a complete, reasonable process flow, and can meet the needs of users with different requirements in terms of design.
These production lines fulfill all the requirements of animals, such as cows, sheep, and other species, in terms of creating a variety of feed formulas. The process includes full price formula feed and grass feed production. The line is designed to be flexible and adaptive, tailoring to customer needs.
Features:
With the development of animal husbandry and the advancement of feed industry technology, granulators have become increasingly important in the granulation process. The production efficiency of pelletizers seriously affects the economic benefits of feed factories. Therefore, in order to improve production efficiency, it is necessary to not only have good equipment, but also to design a reasonable production process.
The granulation machine is widely used in livestock and poultry industries such as pigs, broilers, cows, sheep, and fish. In addition to promoting feed production efficiency, it also has the following advantages:
- Increase particle density, reduce transportation costs, and facilitate transportation.
- Improve feed digestibility. In the process of feed granulation, the combined effects of dry moisture, temperature, and pressure make starch gelatinize, enhance enzyme activity, and enable animals to digest feed more quickly, improving feed conversion rate.
- Prevent animals from being picky eaters, ensure a good nutritional formula, and reduce feed loss.
- Sterilization reduces the activity of microorganisms. Steam high-temperature tempering and granulation can kill Salmonella in animal feed.
- Increase animal feed intake and reduce feeding waste.
- Every time the formula is changed, animals are more receptive.
In order to provide you with the most refined, simplified, and cost-effective products, we have launched a newly developed feed small unit feed production machine with two designs to choose from:
- Mixing and crushing integrated machine (for grains and grains) - Spiral feeding machine - Particle machine - Cooling machine (optional or optional)
- Crusher - Horizontal Mixer - Spiral Feeding Machine - Particle Machine - Cooling Machine (optional or optional)
Technical Parameters:
| Model |
Capacity (KG/H) |
Motor (KW) |
| ZLSP120B |
60-90 |
3 |
| ZLSP150B |
90-150 |
4 |
| ZLSP200B |
200-300 |
7.5 |
| ZLSP230B |
300-400 |
11 |
| ZLSP260B |
400-600 |
15 |
| ZLSP300B |
600-800 |
22 |
| ZLSP400B |
800-1200 |
30 |
|
Applications:

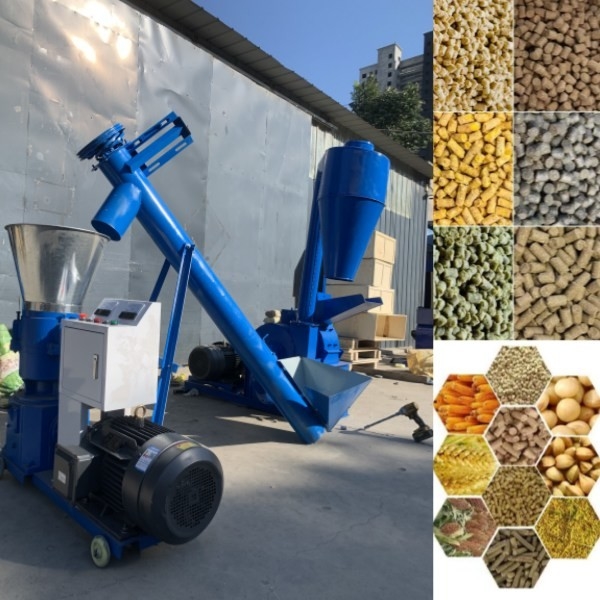

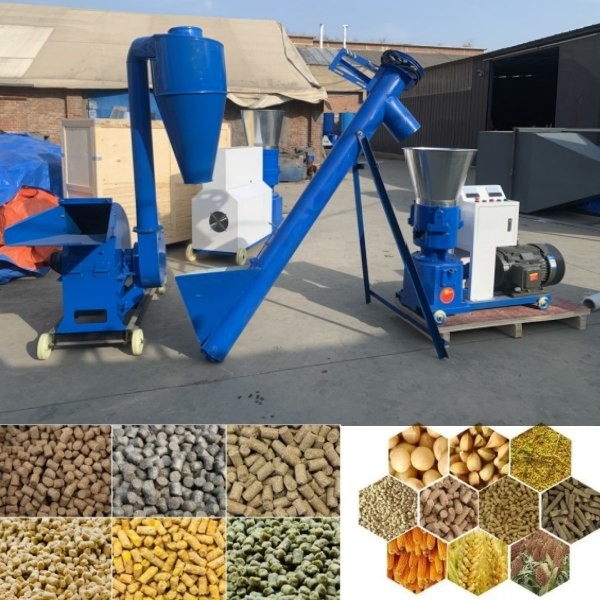

The operational principle of small feed complete sets is that a pulverizer is used to crush various feed raw materials into powderlike particles. Materials that do not need to be crushed can be fed directly into the mixer with a screw conveyor.
The mixer has double screw belts that are used to evenly mix the raw materials. Afterword, the mixed material is then transported to a granulator with a screw elevator.
The finishing products are cooled and screened via a cooling and screening machine where unqualified products are sieved out.
