2 Year Warranty Dry Type Fish Feed Extruder Machine With CE Certificate

2 Year Warranty Dry Type Fish Feed Extruder Machine With CE Certificate

Fish Feed Extruder Machine

Dry Type Fish Feed Extruder Machine

Place of Origin:

China

Brand Name:

Zhongdebao

Certification:

CE, SGS

Model Number:

DGP40-DGP200

Contact Us
Request A Quote
Product Details
Name:
Dry Type Fish Feed Extruder
Capacity:
50~2000kg/h
Warranty:
2 Years
Power:
7.5-132KW
Voltage:
220V/380V. Customized
Dimension:
Once Confirm Model. The Dimension Provided
Material:
Stainless Steel, Carbon Steel
Package:
Export Wooden Box
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD 1500-3000set
Packaging Details
Export Wooden box
Delivery Time
10-20 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2000 set per month
Product Description

Product Description



The Dry Type Fish Feed Extruder is designed to offer a reliable and efficient fish feed extrusion process. It is equipped with electric heating method which ensures optimum efficiency and high-quality product. This  feed extrusion machine is perfect for producing pet food and fish feed . With its advanced technology and high-end components, the Dry Type Fish Feed Extruder is the perfect choice for any fish feed production line.

The feed puffing machine adopts advanced puffing technology, processes the feed under high temperature and high pressure, and makes it easier for animals to absorb through puffing, sterilization and digestion. It is mainly composed of screw, feeding system, puffing chamber and cutting device.

During the working process, the feed enters the extruder through the feeding system and is affected by the high-speed rotation of the screw and the high-temperature and high-pressure environment. When exposd to high temperature for a short period of time, the starch in the feed is gelatinized, the protein is denatured, and the cellulose becomes easier. Digestion. Next, the feed passes through the expansion chamber and rapidly expands under the action of the cutting device to form pellet feed. Finally, through the cooling device, the material is solidified and cooled to obtain the desired product.

This small-scale extruded feed equipment is specially designed for family breeding or small and medium-scale livestock farms. It can extrude feed, improve the output and quality of meat, eggs and other products, and effectively reduce food waste rate. The small feed extruder is mainly composed of a feeding barrel, a pressure system, a heating system, and a nozzle system. It has the characteristics of simple processing technology, safe and easy operation, and good feed extruding effect. It can be widely used in various livestock and poultry feeds. during production process.

2 Year Warranty Dry Type Fish Feed Extruder Machine With CE Certificate 0

Features



  • Reliable, sturdy and durable, easy to operate and maintain
  • The screw has a strong pumping effect, the material has a strong diffusion effect, the advancing speed is fast, and the product quality is relatively stable.
  • Processing floating feed does not require adhesives and can maintain stability in water for more than 2 hours
  • The palatability of the feed is improved. After the feed raw material is extruded, the flavor is increased, the palatability is improved, and it can stimulate the appetite of animals



Specification



Model Size (M) Weight Capacity (KG/H) Power
EW-40 1.36*1.6*0.85 320 40-50 5.5
EW-60 1.36*1.67*0.85 450 120-150 15
EW-70 1.36*1.67*0.85 500 180-200 18.5
EW-80 1.36*1.77*0.95 580 280-300 22
EW-100 1.97*2.9*1.15 750 500-600 37
EW-120 2.2*2.9*1.2 850 600-700 55
EW-135 2.35*2.9*1.35 950 800-900 75
EW-160 2.45*3.2*1.6 1100 1000-1200 90



Applications



The feed size could be customized.

The feed suitable for various animals. the sinking and floating fish feed could be produced.

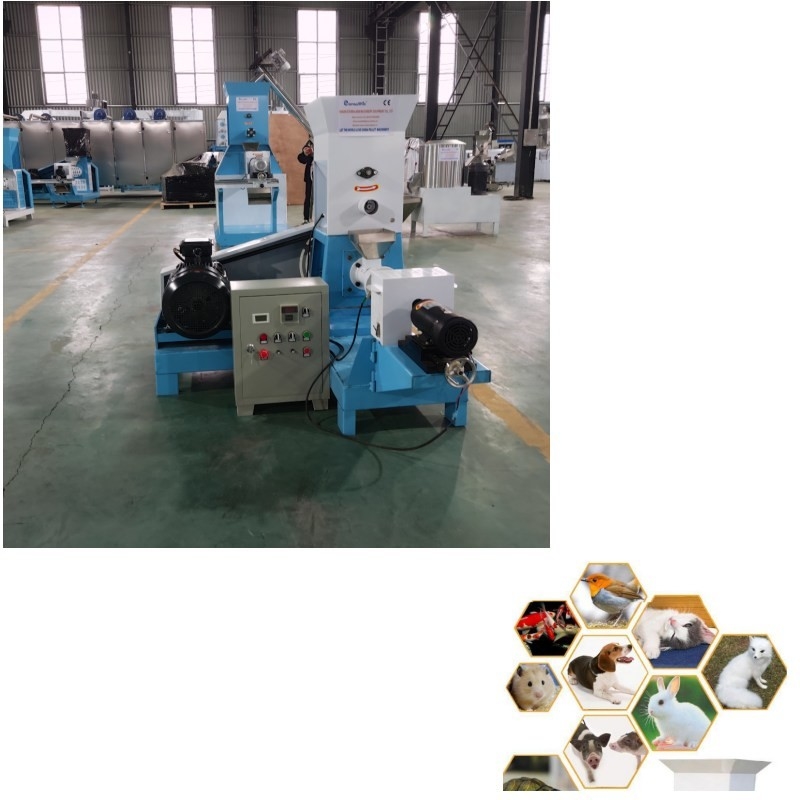

2 Year Warranty Dry Type Fish Feed Extruder Machine With CE Certificate 1



Factory Picture:

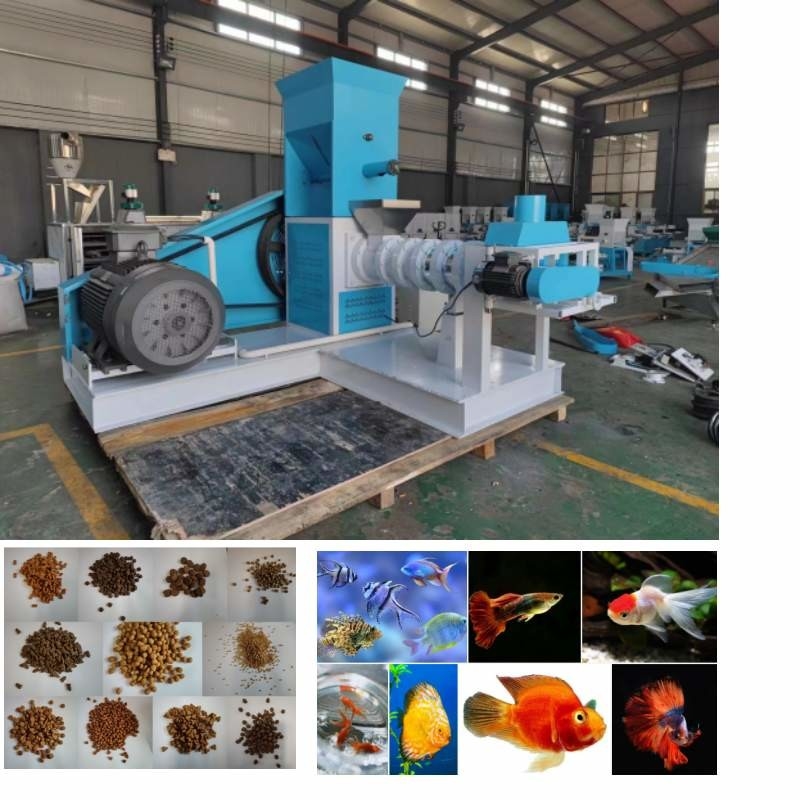

2 Year Warranty Dry Type Fish Feed Extruder Machine With CE Certificate 2



Packing and Shipping

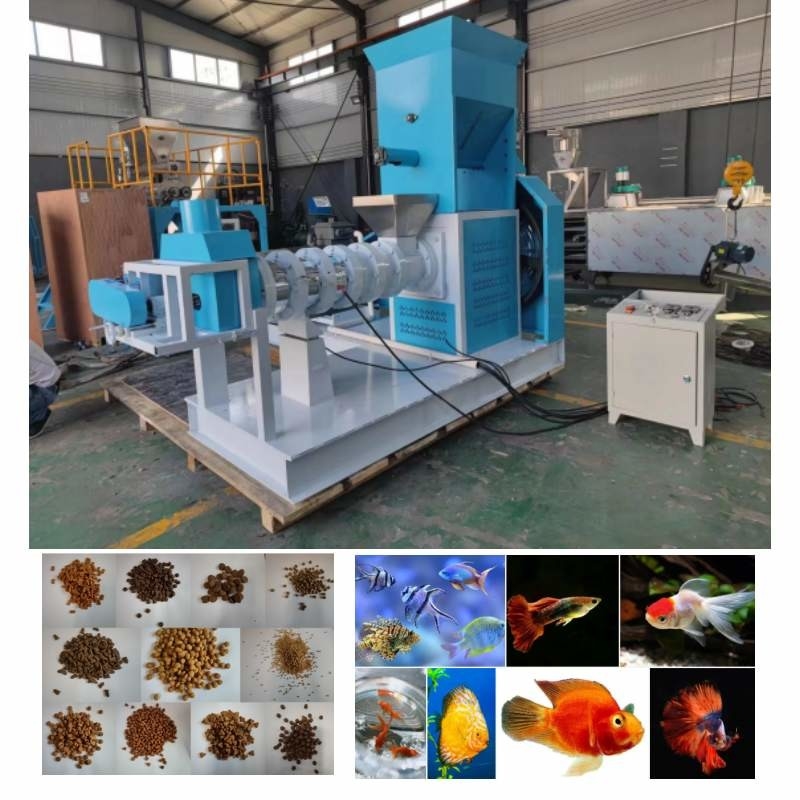

2 Year Warranty Dry Type Fish Feed Extruder Machine With CE Certificate 3

Our Dry Type Fish Feed Extruder is packaged and shipped according to the following standards:

  • Carefully inspect all parts of the machine before shipping.
  • Pack the machine in standard wooden cases or in accordance with customer requirements.
  • Shipment is handled with care and shipped by sea.
  • The machine will be delivered to the customer's address safely and on time.
