Tractor Driven PTO Pellet Mill / Feed Pellet Machine Pelletizer For Animal Feed
Product Description:

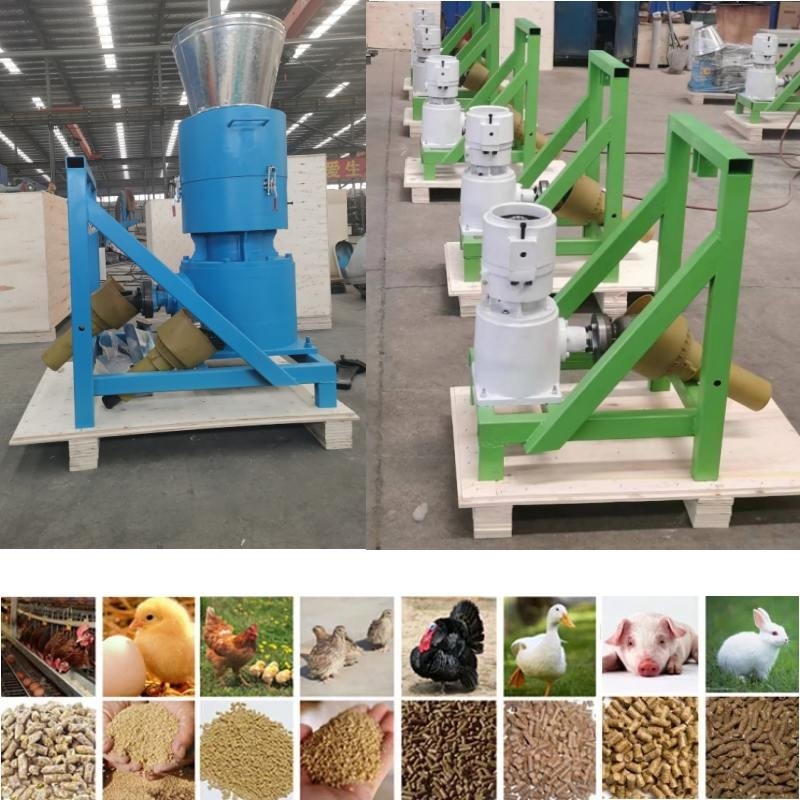

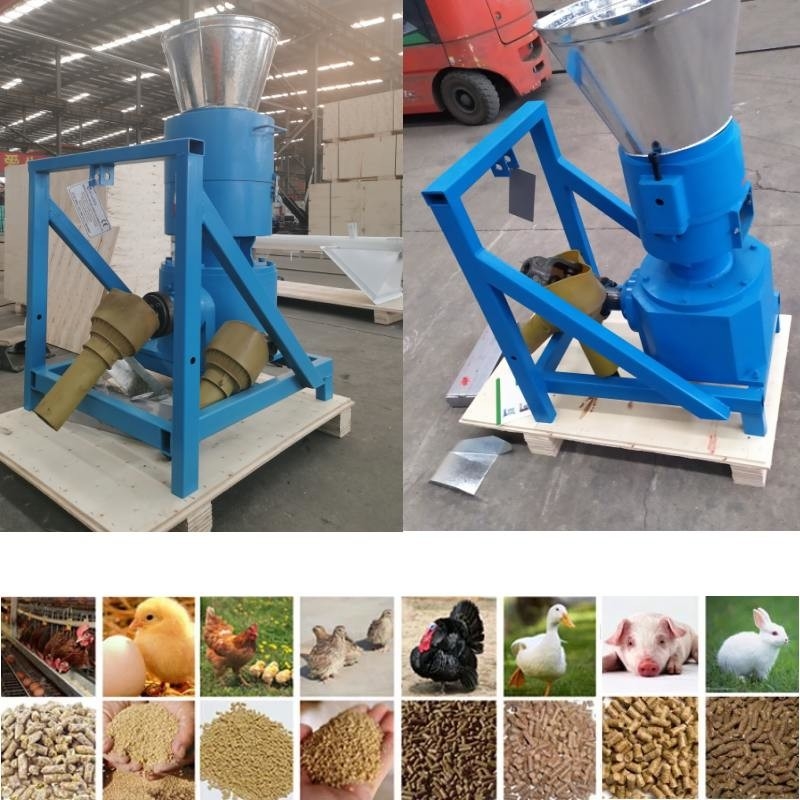

PTO Pellet Mill
This Small feed pellet making machine chicken feed making machine is suitable for medium and small scale farming households processing various livestock and aquatic feeds, it can reduce production cost. It can be used for raise rabbit, chicken, duck, goose, fish, pig, aquatic products, etc.
Feed pellet machine can make the animal feed pellets from corn , bean, bran , wheat etc , the raw material can add some grass , the max percentage is 50%. at the same time , the capacity of feed pellet reduce the pellet diameter is 2.5-6mm, 3mm is popular for chicken.
Advantage:
1.Widely choice on different kind of biomass materials.
2.Pellet in different diameter can customized.
3.animal feed press machine Can equipped with Mixer ,conveyor into production line.
4.Can working in group,improve the working efficient.
5.Different Model to meed client own request.
6.feed pellet making machine Customized designs for customers .
7.Offer Turn-key service on Pellet Production Project.
Features:
- 1. Powered by both diesel engine ,gasoline and motor,PTO driven
2. Direct Connection of motor shaft and belt drive
3. Pellet mill Machine Can run smoothly with few noises.
4. Pellet Machine can equipped wheel,move around
5. Machine can be used for making feed pellet,also make wood pellets
Technical Parameters:
| Model |
120P |
150P |
200P |
230P |
300P |
| Power |
3KW/8HP |
4KW/8HP |
7.5KW/15HP |
15KW/30HP |
22KW/55HP |
|
Output
Sawdust
|
40-60KG/H |
90-120KG/H |
100-150KG/H |
200-300KG/H |
300-400KG/H |
| Output Feed |
60-100KG/H |
150-220KG/H |
200-300KG/H |
400-600KG/H |
600-800KG/H |
| Dimension |
75*31*62CM |
77*34*68KG |
100*43*95CM |
120*50*103CM |
132*53*107CM |
| N.W (kg) |
80KG |
95KG |
190KG |
330KG |
430KG |
| G.W(kg) |
100KG |
115KG |
210KG |
360KG |
470KG |
| Humidity % |
12-20% |
10-15% |
10-15% |
10-15% |
10-15% |
Applications:
Pellet Die Size:
Our Pellet mill have 2.5mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm mould for your choice.
The 6mm and 8mm are the most common size. very suitable for making wood fuel pellets.
2.5mm and 3mm are very suitable for making animal feeds.Advantages of
our machines' output pellets is high density, high fuel value, low moisture and low ash content.
Packing and Shipping:
Package:
1.Machines will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.
2.Packaging details standard export wooden case or in container.
If you are looking for animal feed press machine , or want build your own pellet plant , tell us below request:
What’s your raw material is ?
Raw material size mm,
Moisture content %
Final pellet diameter mm
Output capacity kg/h ?
Upon we get your exactly request, we propose our offer in short time.
