CE Biomass Wood Chip Pellet Maker Sawdust Pellet Press Machine

CE Biomass Wood Chip Pellet Maker Sawdust Pellet Press Machine

Biomass Wood Chip Pellet Maker

CE Wood Chip Pellet Maker

Biomass Sawdust Pellet Press Machine

Place of Origin:

China

Brand Name:

ZHONGDEBAO

Certification:

CE, SGS, BV

Model Number:

EW-SERIES

Contact Us
Request A Quote
Product Details
Name:
Wood Pellet Machine
Raw Materials:
Wood, Straw, Rice Husk, Grass Etc.
Moisture Content:
10-20%
Application:
Wood Pellet For Fuel
Pellet Density:
1.1-1.3t/m3
Diameter Of Pellet:
4-12mm
Warranty:
2 Year
Package:
Wooden Case
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 1000-5000set
Packaging Details
Standard export wooden box packing
Delivery Time
15 days
Payment Terms
D/A, D/P, D/P, L/C, Western Union, MoneyGram
Supply Ability
2000 set per month
Product Description

Customized Biomass Wood Chips Sawdust Pellet Mill Machine With CE



Description


Wood pellet mill, also known as biomass pellet mill and sawdust pellet machine, is a type of mill or machine press used to create pellets from powdered material. It is designed to be used for fuel, and is used to process materials such as sawdust, wood chips and other biomass materials into granules with a diameter of 6-12mm and a moisture content of 10-20%. It is powered by a 380V voltage and is packaged in a wooden case.

By means of physical extrusion, the crushed and dried wood chips are squeezed into the holes of the mold through the pressure wheel, and after the wood chips are squeezed through the holes of the mold, a granular finished product is formed. The solid forming of the wood pellet machine is to prevent the material from bouncing back to its original shape, so that it can maintain a certain shape and strength. The compression process does not need to add any binder, which belongs to the physical forming of fiber materials, from biomass such as straw and wood chips. In terms of composition, it is mainly composed of cellulose, hemicellulose, lignin, resin, wax and other components.

Among the various components that make up biomass, lignin is generally considered to be an inherent and good intrinsic binder in organisms. At normal temperature, the main part of lignin is insoluble in any organic solvent, but lignin is amorphous, has no melting point but has a softening point. When the temperature reaches about 70°C to 110°C, it softens and the adhesive force begins to increase. At this time, a certain amount of external pressure can be applied to make it bond closely with cellulose, hemicellulose, etc., and at the same time glue with adjacent biomass particles. connected together. After the briquette fuel is cooled, its strength increases, and the combustion performance of the rod, block, and granular biomass solid briquette fuel is similar to that of wood.





Features



  • Widely applicable. Small footprint.
  • Production environment optimization. The dust removal system was added to the internal design of the equipment, the noise is low, the high noise is lower than 72 decibels, and there is no smoke, dust and sewage discharge;
  • High operating efficiency. Low mechanical wear, simple operation, and no need to stop production for maintenance and overhaul
  • The wood pellet machine has a long service life, low maintenance cost, safe and reliable use, and can bring more economic benefits to users.
  • The wood pellet machine has the characteristics of high efficiency, energy saving, safety and reliability, which brings great convenience to users



Technical Parameters





Model Output capacity

Power

(kw)

Weight

(kg)

Wooden Packing Size(mm)
PM200B 80-120kg/h 7.5KW 300kg 1050*480*1120mm
PM300B 250-350kg/h 22KW 730kg 1300*600*1400mm
PM400B 400-600kg/h 30KW 900kg 1400*700*1600mm
PM500B 600-900kg/h 55KW 1800kg 2300*800*1900mm



Applications

Raw materials: Sawdust, shavings, bark, sanding powder, waste wood, branch wood produced in wood processing and wood-based panel production; various straws produced after harvesting crops, etc.

Pellet: 4-12mm , the length could be adjustable.

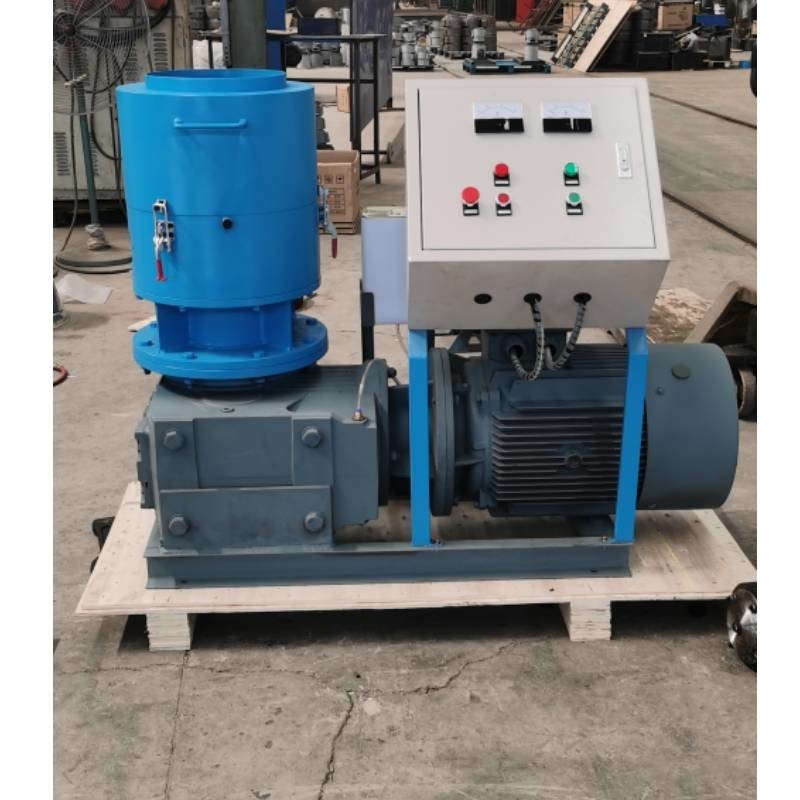

CE Biomass Wood Chip Pellet Maker Sawdust Pellet Press Machine 0

Factory Picture

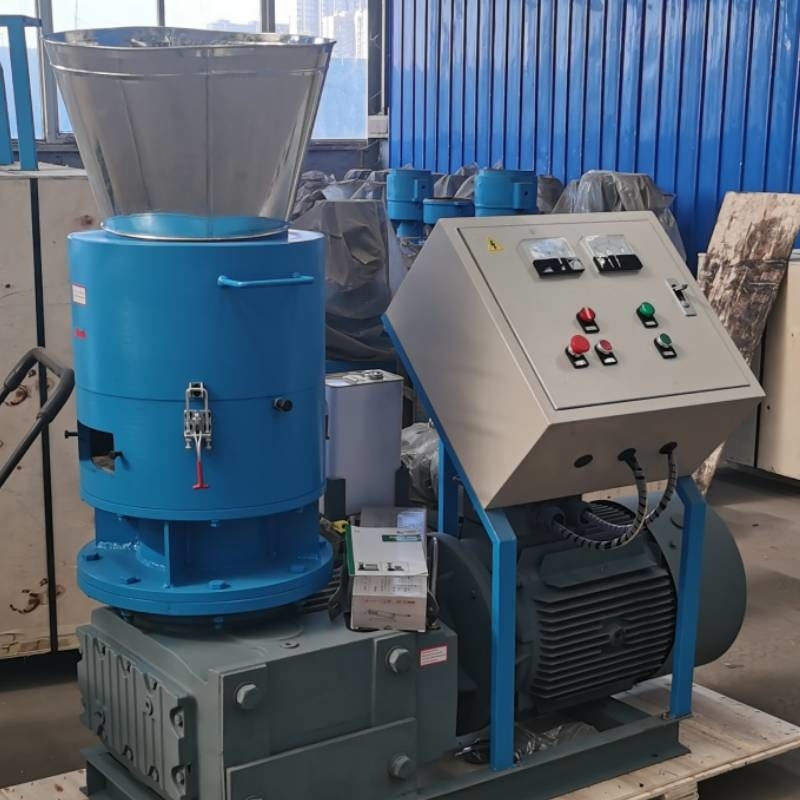

CE Biomass Wood Chip Pellet Maker Sawdust Pellet Press Machine 1



Support and Services





We also provide training services to ensure that our customers are able to properly operate their machines. Our experienced technicians will provide hands-on training, as well as written materials. Our training services are designed to make sure that our customers understand all aspects of machine operation and maintenance.

Our technical support and service staff is available 24 hours a day, seven days a week to answer any questions or provide assistance. We also offer a hotline for emergency situations, where our staff is available to provide immediate assistance.



Packing and Shipping:

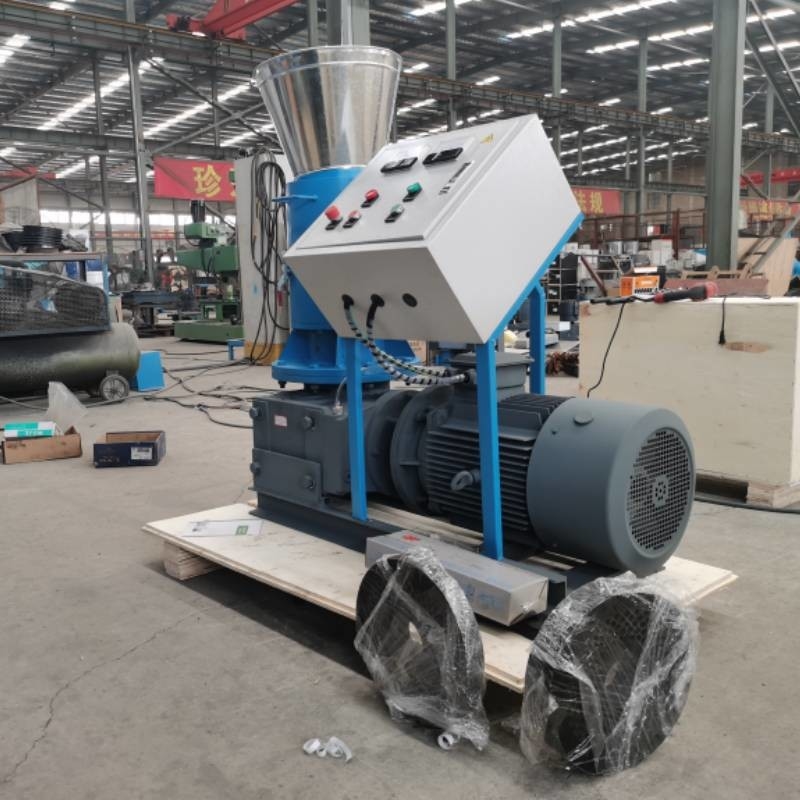

CE Biomass Wood Chip Pellet Maker Sawdust Pellet Press Machine 2
