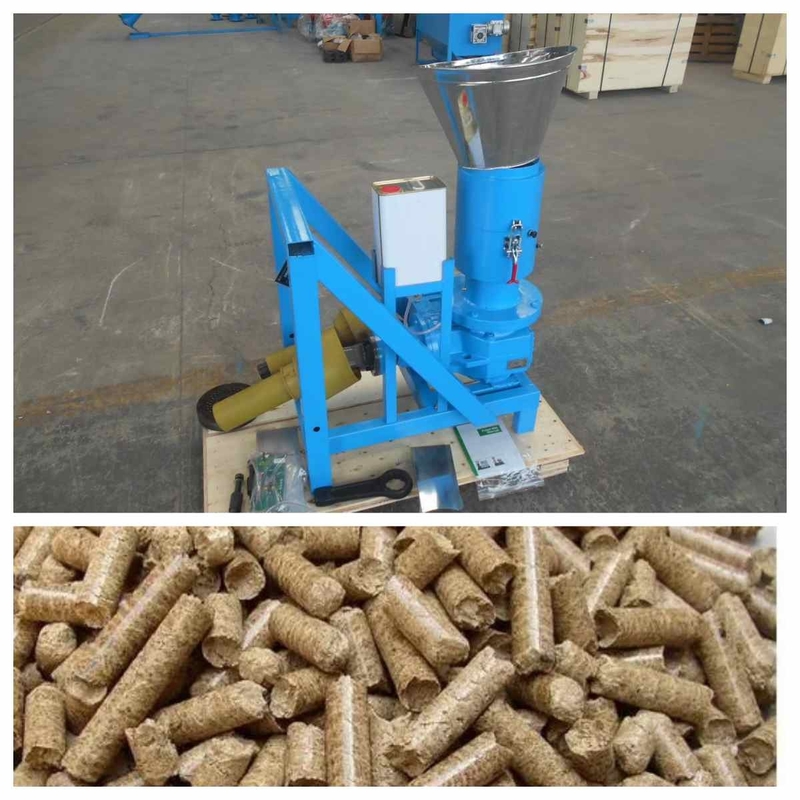

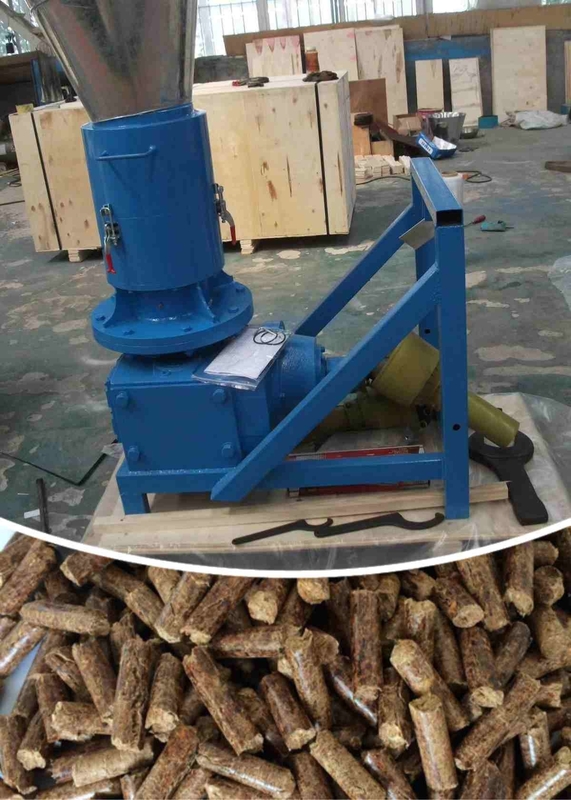

Moving Roller Sawdust Pelletizer Machine 200 400 PTO Tractor Sawdust Pellet Maker

Product Description:

Biomass fuel industry: All kinds of wood wastes, straws, rice husks, peanut shells, palm shells, corncobs, waste cloth and other materials can be compressed and granulated as environmentally friendly fuel particles instead of coal. At present, this kind of biomass fuel has been widely used in the whole country and is very popular in the market.

 Biomass fuel industry: All kinds of wood wastes, straws, rice husks, peanut shells, palm shells, corncobs, waste cloth and other materials can be compressed and granulated as environmentally friendly fuel particles instead of coal. At present, this kind of biomass fuel has been widely used in the whole country and is very popular in the market.

Instructions
1.Biomass granulator and motor should be installed on the base made of angle steel. If the biomass granulator is powered by diesel, the output power of the two should be matched, that is, the output power of the diesel is slightly greater than that of the pulverizer, the pulley grooves of the two should be consistent, and the outer end faces of the pulleys should be on the same plane.

2. After the installation of biomass granulator, check the fastening of fasteners everywhere, and tighten them if they are loose.

3. Check whether the tightness of the drive belt is appropriate and whether the motor shaft is parallel to the shaft of the sawdust granulator.

4. Before the biomass granulator operates, rotate the motor rotor by hand to check whether the claw, hammer and motor rotor operate flexibly and reliably, whether the shell collides, whether the rotating direction of the motor rotor is consistent with the direction indicated by the arrow on the machine, and whether the lubrication between the motor and granulator is good.

5. It is unnecessary to change the pulley at will to prevent the crushing chamber from exploding due to too fast speed or affecting the working efficiency due to too slow speed.

6. After the crusher runs, idle for 2-3 minutes first, and then feed after no abnormal phenomenon.

7. Pay attention to the running status of biomass granulator in time at work, feed evenly, prevent traffic jams and traffic jams, and don't overload for a long time. Vibration, noise, bearing and body temperature is too high, splashing, etc. You should stop and check before you can go on working.

Features:

• Product Name: PTO Pellet Mill
• Noise Level: ≤80dB
• Die Material: Alloy Steel
• Tractor Horsepower: 10-80hp
• Roller: 2 Or 3
• Tractor Powered Pellet Mill: Yes
• Portable Pellet Mill: Yes

Technical Parameters:

Applications:

The Zhongdebao PTO 200-400 Pellet Mill is an engine powered pellet mill that is ideal for biomass pelletizing. It is driven by a PTO (Power Take Off) or diesel engine, and is equipped with an alloy steel die for maximum pelletizing performance. This pelletizing machine also features 10-80hp tractor horsepower and is packaged in a wooden case to ensure maximum protection. It is certified by CE, SGS and BV, and is available with a minimum order quantity of 1. Customized prices are available and delivery time is 10 days from payment. The company is capable of producing up to 100units/month.

For those looking for a reliable and efficient biomass pelletizing solution, the Zhongdebao PTO 200-400 Pellet Mill is an ideal choice. This powerful engine powered pellet mill is ideal for producing a variety of pellets and is designed to provide maximum pelletizing performance. It is certified by CE, SGS and BV, and is packaged in a wooden case to ensure maximum protection. With a minimum order quantity of 1 and a customizable price, this pelletizing machine is a great option for those looking for a reliable and efficient biomass pelletizing solution.

Customization:

FAQ:
