100-500Kg/H Pet Feed Pellet Machine Dog Food Production Line Stainless Steel

100-500 kg/H Pet Dog Feed Pellet Mill Floationg Fish Feed Production Line With Stainless Steel Feed Extruder Machine

Product Description:

• The feed production line is a complete set of equipment mainly for the production of powdered feed, pelleted feed, premixed feed, and extruded feed. Dust removal equipment, cleaning equipment and other components can be customized according to user needs. Suitable for farms, farms, and feed processing plants.

• This production equipment is suitable for producing floating fish feed and ornamental fish feed. The feed floats for a long time and is not easy to disperse. By adjusting the process parameters such as raw materials, temperature, and moisture, the product has the characteristics of novel shape, unique taste, rich nutrition, and fine texture, which is suitable for the taste of different fish. The floating time is about 20 hours.
• Process flow of large-scale floating fish feed production line: raw material preparation→mixing→transportation→extrusion puffing→transportation→drying→seasoning→cooling→screening→packaging

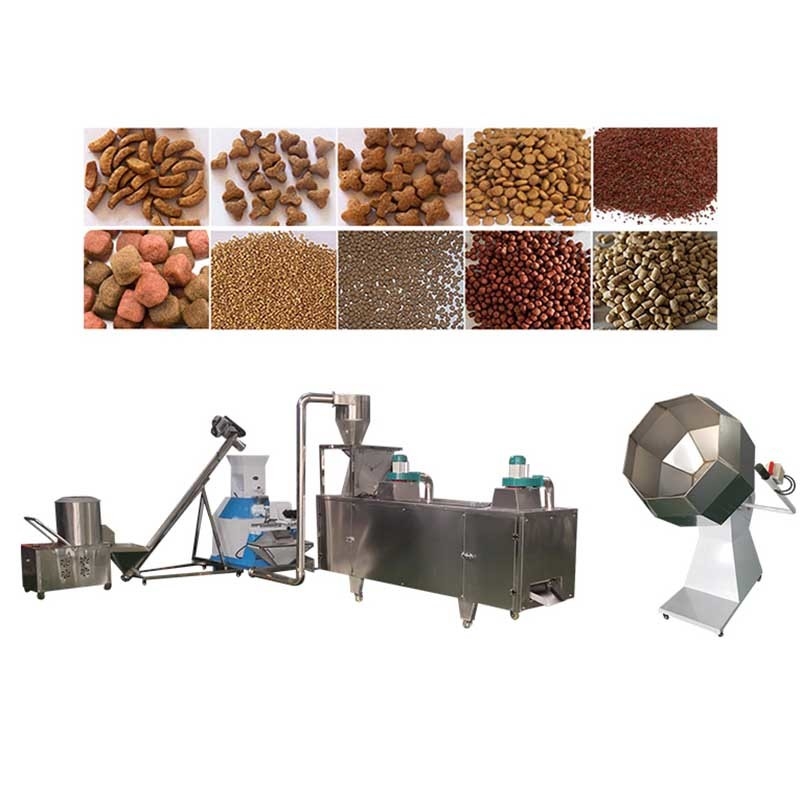

• Ornamental fish feed production line equipment configuration: Mixing machine→feeder→extruder→conveyor→multi-layer oven→seasoning line→cooling conveyor→vibrating screen→packing machine

Features:

• 1. Improve the utilization rate of feed. Improve the palatability, and thus increase the feeding rate.
• 2. Reduce environmental pollution. The extruded floating fish feed has good stability in water. Generally, the use of extruded floating fish feed can save 5%-10% compared with powder or pellet feed, and can avoid feed residue in water and reduce water pollution.
• 3. Reduce the occurrence of diseases. The high temperature, high humidity and high pressure of puffing can kill most harmful microorganisms.
• 4. Feeding management is convenient. Aquatic extruded feed can be suspended on the water surface (in water) for a long time, and there is no need to set up a special feeding platform when feeding, just fixed-point feeding is enough. The use of aquatic extruded feed is conducive to scientific feeding management, which not only saves a lot of time, but also improves labor productivity.
•

Technical Parameters:

Applications:

• Process composition of floating feed production line:
• 1. Flour mixing machine: add a certain proportion of water to raw materials such as corn flour, rice flour, soybean flour, fish flour, meat flour, grain flour, additives, etc. and mix them evenly.
• 2. Feeding machine: The motor is used as the power to convey the screw, and the mixed raw materials are conveyed to the feeding hopper of the extruder to ensure convenient and fast feeding.
• 3. Twin-screw extruder: Under the condition of high temperature and high pressure environment and screw extrusion, the mold can be replaced by adjusting the different feeds in the process production department, and the specific particle size and shape can be changed.
• 4. Conveyor: convey the feed to the oven,
• 5. Multi-layer oven: Most of the ovens are electric ovens. The temperature is adjusted between 0-200 degrees by the control cabinet. The interior is a stainless steel double-layer mesh bag, which reduces the moisture of feed particles, promotes the ripening rate, and increases the shelf life.
• 7. Seasoning line: the oil sprayer sprays oils, food attractants, etc. The seasoning cylinders include octagonal cylinders, cylinders, single-drum lifting, and double-drum seasoning lines. According to the output and product properties, the oil is sprayed on the surface of the feed. Sprinkle with minced meat and spices, spreading evenly.
• 8. Cooling and conveying: reduce the temperature of frying and feed, promote the solidification of oil, reduce the temperature of particles, and facilitate packaging.
• 9. Vibrating sieve: to sieve excess sprinkled materials and granules to ensure the quality and reuse of raw materials.
• 10. Packaging machine: manual sealing machine and automatic packaging machine can be used
