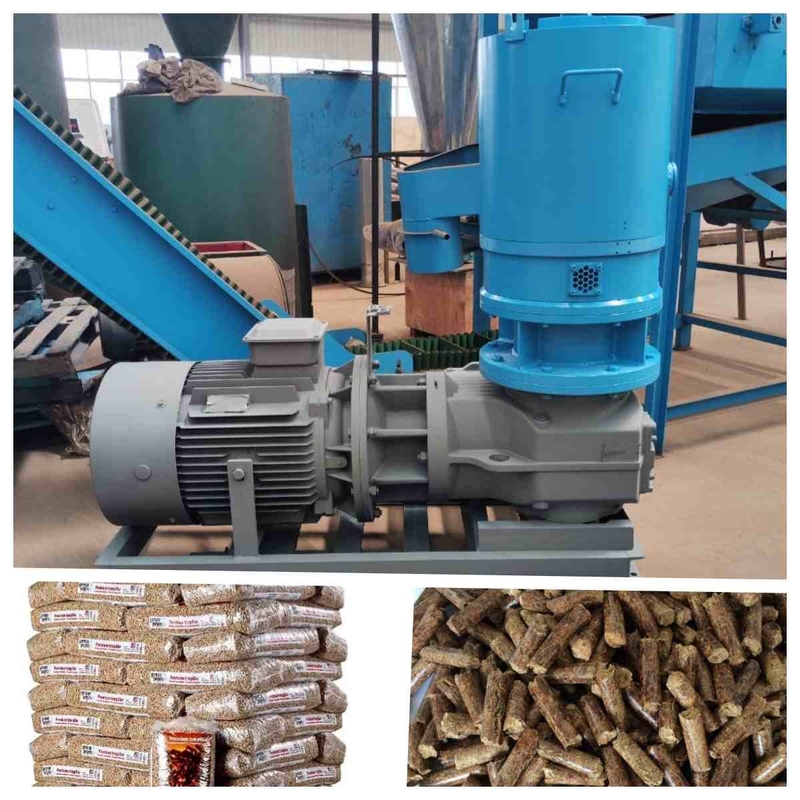

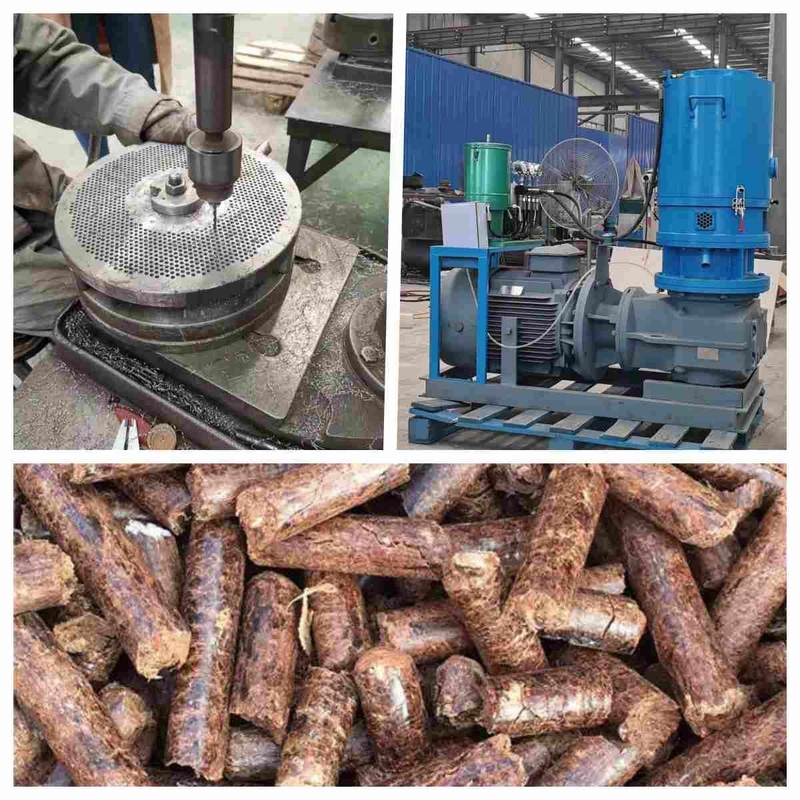

Product Description:
Wood pellet machine is a biomass new energy source equipment and the granulation equipment of wood chips production. It is eucalyptus, birch, poplar, fruit trees, bamboo chips and crop straw as raw materials. Through the crushing, drying, screening, granulation, cooling, packaging and other processes to produce finished wood chips. Its products are used in biomass power generation, boilers, fireplaces, household appliances and so on.
Wood pellet machine features and technical advantages:
All typical features of a conventional vertical ring mold particle machine:
1. Vertical feed, directly in place.
2. The mold is still, pressure roller rotation, material centrifugal, evenly around.
3. The mold has two layers, up and down dual-use, cost reduction efficiency; can also be dual-use, high-yield energy.
4. Annular mold, vertical structure, which facilitates the cooling of the granulation chamber.
5. Separate discharge device to ensure the formation rate of particles.
6. Independent automatic lubrication system brings a good bearing lubrication effect.
7. Feeding system has a frequency conversion device and achieves the adjustable of feeding speed. It can promise the different materials.
Features:
- Product Name: Wood Pellet Mill
- Package: Wooden Case
- Pellet Density: 1.1-1.3t/m3
- Warranty: 2 Year
- Application: Wood Pellet
- Name: Wood Pellet Machine
- Keywords: Pellet Mill Machine, Biomass Pellet Machine, Pellet Mill Machine
Technical Parameters:
| Model |
400R |
| Power |
30KW 380V 50HZ |
| Capacity for wood pellet |
400-600KG/H |
| Packing Size(mm) |
1400*700*1600 mm |
| Net/Gross Weight(kg) |
900/960KG |
| Model |
420R |
| Power |
37KW 380V 50HZ |
| Capacity for wood pellet |
400-600KG/H |
| Packing Size(mm) |
1400*700*1600 mm |
| Net/Gross Weight(kg) |
1200/1280KG |
| Model |
550R |
| Power |
55KW 380V 50HZ |
| Capacity for wood pellet |
600-900KG/H |
| Packing Size(mm) |
2300*800*1900 mm |
| Net/Gross Weight(kg) |
1800/1890KG |
Applications:
Scope of application of biomass particles/sawdust particles
Widely used in factories, heating boilers, hotels, sauna bath centers, leisure clubs, villas, office buildings, schools and enterprises, etc. It can also be used as a power plant to generate electricity instead of polluted coal and natural gas.
Product features
Quality selection
Select sawdust, which has hard and dense texture, small ash output and is not easy to coke.
High combustibility
Compared with coal, it has high volatile content, low ignition point, high ignition density, high energy density and long combustion duration.
Convenient transportation is due to the shape of particles, which reduces the volume, saves the storage space, and is also convenient for transportation and saves the transportation cost.
Support and Services:
Wood Pellet Mill Technical Support and Service
Our Wood Pellet Mill provides customers with a comprehensive technical support and service. We have a team of experienced professionals, who can help with installation, maintenance, repair and other services.
We provide free technical advice and troubleshooting, as well as on-site assistance when necessary. We also offer regular maintenance and inspection services to ensure that the equipment is functioning properly. In addition, we have a full range of spare parts available to customers.
We strive to provide the best customer service and support to ensure that our customers get the most out of their Wood Pellet Mill. If you have any questions or concerns, please feel free to contact us and our team of experts will be happy to help.
Packing and Shipping:
Wood Pellet Mill Packaging and Shipping
Wood Pellet Mills are shipped in a secure wooden crate. The crate is equipped with shock absorbing foam to protect the Mill from damage during transit. The crate is securely bolted together to ensure that the Mill is not damaged during shipping. The crate is also labeled with the product name, size, and weight for easy identification and handling.
Once the crate is filled with the Mill and securely closed, it is then strapped down to a pallet and shrink-wrapped. This provides extra protection during transportation and ensures that the Mill is securely held in place. The pallet is then loaded onto a truck and the Mill is shipped to its destination.
