High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack

Clean Feed Pellet Production Line

High Efficiency Feed Pellet Production Line

Crush Feed Pellet Production Line

Place of Origin:

China

Brand Name:

Zhongdebao

Certification:

CE BV

Model Number:

EWPL-1TPH

Contact Us
Request A Quote
High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack
High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack
Product Details
Application:
Cattle Sheep Grass Animal Feed Pellet Line Machines
After-sales Service Provided:
Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Overseas Service Center Available, Video Technical Support
Voltage:
380V/50HZ, 380v, 50hz, 380V/50HZ/Three Phase, 220V/50HZ/Single Phase Or Change As Rquired
Power(w):
45KW, 256kw, 195kw, 80KW, 22/30/55/75/90kw
Warranty:
1 Year, One Year, 12 MONTHS
Weight:
500kg, 6000kg, 1200kg, 2-10TON, 2000
Dimension(l*w*h):
30000*5000*3500mm, 3.2*1.1*2m, 21*2*3m, 3.5x1.05x1.96m, As Per Capacity
Condition:
New
Capacity:
100kg/h 200kg/h 500kg/h 1000kg/h To 20tons /h
Material:
Carbon Steel Alloy Steel
Motor:
Simens, Chinese Motor Or Simense
Product Name:
Biomass Wood Pellet Production Line
Color:
Blue White Green Any Color Can Be Customized
Type:
Biomass Wood Pellet Producing Line
Raw Material:
Wood Chips Eucalyptus Pine Birch Poplar Rice Husks, Peanut Husks, Melon Seed Husks, Bamboo Shavings, Bagasse, Palm Husks, Twigs, Branches, Bark, Leaves, Wood Scraps; Large Furniture Factory, Wood Factory, Wood Chips Produced By Various Kinds Of Wood In The
Main Motor:
22kw 30kw 37kw 55kw
Output:
300kg/h 500kg/h 800kg/h 1000kg/h 1.5ton/h 1.8-2tons/h 2.5-3tons/h
Year:
2023
Payment & Shipping Terms
Minimum Order Quantity
1
Price
price negotiable
Packaging Details
directly loaded in the container or packaged by wooden case
Delivery Time
5-8 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
100 sets per week
RELATED PRODUCTS
Good price CE 3000kg/H Poultry Animal Feed Pellet Production Line Customized Colour online Video

CE 3000kg/H Poultry Animal Feed Pellet Production Line Customized Colour

Get Best Price
Good price High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack online Video

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack

Get Best Price
Good price High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen & Pack online Video

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen & Pack

Get Best Price
Good price 2 Tons/Hour Feed Pellet Production Line For Animal Poultry Feed online Video

2 Tons/Hour Feed Pellet Production Line For Animal Poultry Feed

Get Best Price
Contact Us
86-371-86546711
Contact Now
Product Description

1-20TPH chicken poultry livestock feed pellet production line

Production application :

Type : Animal feed pellet production line

Capacity : 1-20TPH

Pellet size : 1.5-12mm ( 1.5-8mm generally for animal feed )

Application : Can be used for poultry , livestock , ruminants and aquatic pellet feed production .





                                                         HKJ Series Ring die pellet machine models :
Model
Main Power

Feeder Power
Conditioner Power
Dia.of Ring Die
Pellet Size
Capacity
HKJ-250
22KW
0.55KW
1.5KW
250mm
φ1.5-12.0mm
1-2T/H
HKJ-320
37KW
1.5KW
2.2KW
320mm
φ1.5-12.0mm
3-5T/H
HKJ-350
55KW
1.5KW
3.0KW
350mm
φ1.5-12.0mm
5-8T/H
HKJ-420
110KW
2.2KW
7.5KW
420mm
φ1.5-12.0mm
8-12T/H
HKJ-508
132/160KW
2.2KW
11KW
520mm
φ1.5-12.0mm
12-18T/H

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 0

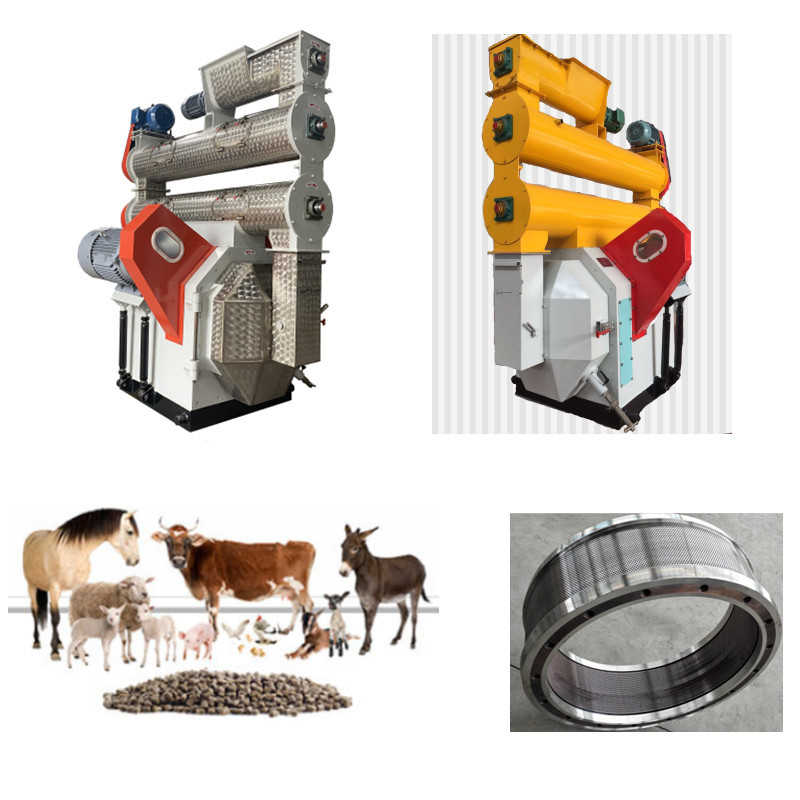

This one is double conditioners ring die pellet machine



High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 1

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 2

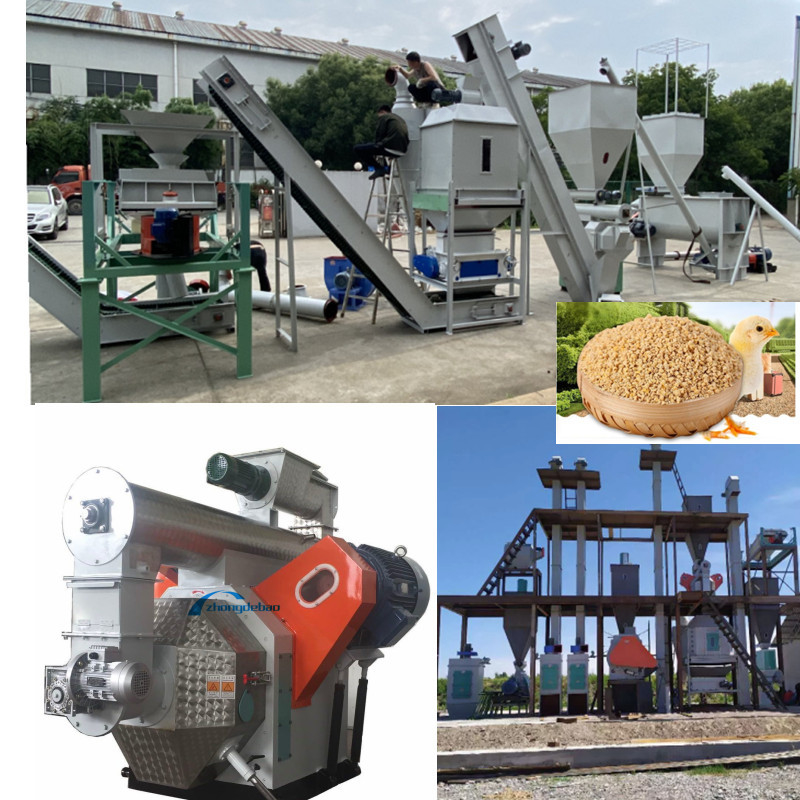

This above horizontal HKJ-250 chicken feed pellets line exported to Africa .



Process :
Main machines :
Function :
Crushing section
Hammer mill
Crush raw materials into powders
   Batching and Mixing section         Mixer   batching manual or automatic then mixing the crushed powder evenly for later making the animal feed pellets more comprehensive and nutritious.
Pelleting section
horizontal ring die pellet machine
Press mixed raw materials into pellets
Cooling section
counterflow cooling machine
Reduce temperature to room termperature and reduce moisture of pellets for later easily storage
Finished pellets crumbling system     roller crumbling machine    for crumbling finished pellets to very smaller particles for baby chick feed
Packing section
Automatic packing machine
Weigh and pack the final pellets into bags and sewing the bags
Electric control
Electric control cabinet
Control the complete line



The complete chicken feed line machine catalogue details :



                                                          Water drip hammer mill
High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 3 Model Power Productivity capacity
SDFP 70*30 37kw 2-4t/h
SDFP70*40 45(55)kw 3-6t/h
SDFP70*50 55(75)kw 4-10t/h
SDFP70*60 75(90)kw 5-12t/h



                                                         Counterflow cooling machine
High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 4 Model Productivity capacity
NKSL-3 3t/h
NKSL-5 5t/h
NKSL-7 7t/h
NKSL-8 8t/h
NKSL-10 10t/h
NKSL-15 15t/h
NKSL-20 20t/h



                                                                 Roller crumbling machine
High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 5 Model Power Productivity capacity
SSLG15*80 4kw 4t/h
SSLG15*100 5.5kw 6t/h
SSLG15*150 7.5kw 10t/h



                                                             Rotary vibrition screener
High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 6 Model Power  Productivity capacity
SFJH80*2C 1.5kw 5t/h
SFJH100*2C 2.2kw 10t/h
SFJH125*2C 3kw 15t/h



Our export cases :



High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 7

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 8

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 9



High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 10

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 11

High-Efficiency Feed Pellet Production Line Clean Crush Mix Granulate Cool Screen Pack 12
