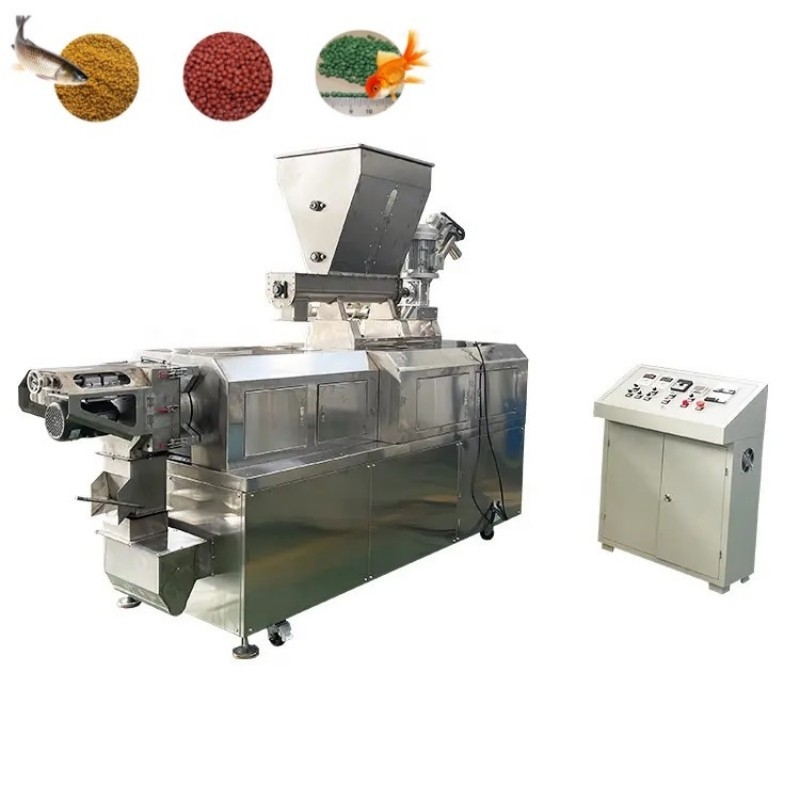

Dry Type Twin Screw Feed Extruder Machine Fish Feed Pet Food Making Machine
The twin screw extrusion machine is composed of several parts, including the feeding system, extrusion system, heating system, transmission system, rotary cutting system, and control system. The material is fed into the feeding machine, and the barrel undergoes high temperature, high pressure, and high shear to expand the material to meet the required quality requirements such as organizational state.
Main feature:
1. The main motor of this machine adopts frequency conversion control, which is energy-saving and easy to operate.
2. This machine adopts a variable frequency speed control feeder, which ensures uniform feeding.
3. The main gearbox is equipped with a gear oil pump cooling and lubrication system, a double screw extrusion pumping mechanism, and a double shaft extended differential modulator, which ensures sufficient maturation of the material and a gelatinization degree of over 98%.
4. There are a wide variety of raw materials, and the feed formula can contain more than 12% oil. The screw has excellent self-cleaning ability.
5. When restarting or changing material types, there is no need to clean the machine boring and screw. The host adopts variable frequency speed control to adapt to different types of raw materials, and the discharge cutting knife adopts variable frequency speed control to adjust the length of materials.
6. The screw sleeves are made of special materials and processes, which are wear-resistant and have high pressure.
7. Feed is sterilized under high temperature and pressure during processing, ensuring the hygiene and safety of feed products
8. The cylindrical aperture of the discharge mold is d=1mm -10mm, as well as other special shaped mold holes (which can be made according to customer requirements).
9. Suitable for processing aquaculture puffed materials (float sink, sink) with water floating stability of over 24 hours.
Technical Parameters:
| Model |
Motor power |
Production capacity |
Feeding power |
Cutting power |
| TSP-65 |
22KW |
200kg/h |
0.75kw |
0.75kw |
| TSP-70 |
37KW |
300kg/h |
1.5kw |
1.5kw |
| TSP-85 |
55KW |
500kg/h |
3kw |
3kw |
