Product Description:

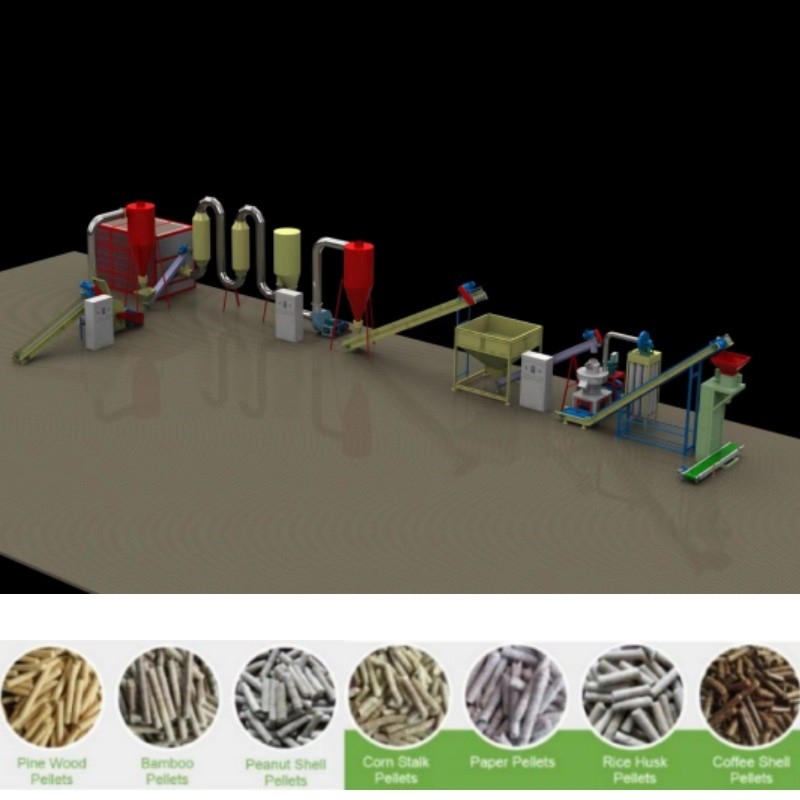

The biomass pellet production line is a highly efficient system used for the production of biomass pellets. It is designed to process raw materials such as wood chips, sawdust, and other biomass fuel into high-quality pellets with a density of 1.1-1.3g/cm3 and a durability of more than 95%. The production line is capable of processing up to 2-20t/h of raw materials, and is suitable for a wide range of biomass fuel sources including wood chips, sawdust, leaves, crop stalks, and other agricultural waste. The biomass pellet production line is equipped with advanced technologies such as automatic control systems and precision machining tools, ensuring high efficiency and reliable operation.
The biomass pellet production line is an excellent solution for wood pellet production. It is suitable for large-scale production, and can produce wood pellets with a consistent quality and a long-lasting durability. The line is designed to be easy to operate and maintain, and it can produce pellets with a wide range of sizes, shapes, and densities. The biomass pellet production line is an ideal choice for those who are looking for a reliable and efficient solution for their wood pellet production needs.
Features and details:
- Product Name: Biomass Pellet Production Line
- Fuel Type: Biomass Pellets
- Processing Capacity: 2-20t/h
- Durability: More Than 95%
- Main Equipment: Hammer Mill, Dryer, Pellet Mill, Cooler, Packing Machine
- Size of Pellets: 4-12mm
- Wood Pellet Production Line: High Efficiency, Low Energy Consumption, Easy Operation and Maintenance
- Wood Pellet Production Line: Automatic Control, Low Noise, Non-pollution
- Wood Pellet Production Line: Stable Operation, Long Service Life
| Crushing system |
1 |
Wood sawdust crusher |
500B |
1 |
22 |
Two inlets,with cyclone system |
| Drying system |
4 |
Belt Conveyor |
6m |
1 |
3 |
To convey wet sawdust to dryer |
| |
5 |
Rotary dryer |
Φ8*8m |
1 |
4+4 |
To dry sawdust to suitable moisture |
|
Granulation system
|
7 |
Screw conveyor |
U-type |
1 |
4 |
With anti-clogging function |
| |
8 |
Ring die Pellet Machine |
450VR |
1 |
55 |
Vertical feeding; with automatic lubrication system |
|
Cooling system
|
9 |
Skirt belt conveyor 1 |
QB380 |
1 |
2.2 |
Large-angle corrugated sidewall belt conveyor, conveyor belts with corrugated ribs and diaphragms |
| |
10 |
Counter-flow cooler |
SKLN11x11 |
1 |
0.75*2+0.2 |
Best cooling choice. Max output is 3t/h, and the pellet temperature after cooling is not higher than 3-5℃ of room temperature; |
| |
11 |
Medium pressure blower |
4-72-4.5A |
1 |
5.5 |
|
| |
12 |
Cyclone separator&Air network pipe |
D800/ |
1 |
0 |
|
| |
13 |
Air-Lock |
TGFY2.8L |
1 |
0.75 |
|
|
Conveyor
Packaging
|
14 |
Skirt belt conveyor 2 |
QB380 |
1 |
2.2 |
1) Integrate automatic weighing, filling and conveying into one 2) Automatic feeding compensation function 3) Full English control screen |
| |
15 |
Packing Machine |
BZJ50 |
1 |
1.26 |
|
|
Electric control system
|
16 |
Electric control cabinet |
/ |
3 |
105.61 kw |
|
Applications:
Biomass Pellet Production Line, a brand-name product with model EWP-450, is produced in HENAN and has obtained CE BV certification. It is a high-performance, reliable, and durable wood pellet production line that can be used for a long time, with a minimum order quantity of 1 set, a negotiable price, and wooden packing. Delivery time is 20 working days, and accepted payment terms are t/t, western union, money gram. The supply ability is 1000 sets per month. The main equipment includes hammer mill, dryer, pellet mill, cooler, and packing machine. The fuel type is biomass pellets and the raw materials can be wood chips, sawdust, rice husk, straw, etc. The moisture content should be between 15% and 25%.
Customization:
Biomass Pellet Production Line
Brand Name: Biomass Pellet Production Line
Model Number: EWP-450
Place of Origin: HENAN
Certification: CE BV
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden packing
Delivery Time: 20 working days
Payment Terms: t/t westerm union money gram
Supply Ability: 1000set per month
Finished Products: Biomass Pellets
Moisture Content: 15%-25%
Main Equipment: Hammer Mill, Dryer, Pellet Mill, Cooler, Packing Machine
Raw Materials: Wood Chips, Sawdust, Rice Husk, Straw, Etc.
Product Name: Biomass Pellet Production Line
Highlight Words:
wood pellet production line, wood pellet production line, wood pellet production line
Support and Services:
Biomass Pellet Production Line provides comprehensive technical support and service to ensure the smooth and stable operation of the pellet production line.
The technical support and service includes:
- Pre-sale technical support, including detailed product introduction, technical consultation and on-site inspection.
- Professional installation and commissioning guidance.
- Maintenance and repair services.
- Technical advice and guidance on production process optimization.
- Provide spare parts and accessories.
- Provide professional training and guidance on the operation of the production line.
Packing and Shipping:
Packaging and Shipping of Biomass Pellet Production Line:
The biomass pellet production line is packaged and shipped in standard packages. The packaging includes wooden cases, cartons, and pallets. The specific packaging and shipping plan will be tailored to meet the requirements of each customer.
We also provide door-to-door delivery service to ensure that the biomass pellet production line is delivered to the customer's address on time.
