1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Sawdust Pellet Mill Machine

1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Sawdust Pellet Mill Machine

2T/H New Wood Pellet Maker

Wood Pellet Maker Vertical Ring Die

Ring Die Sawdust Pellet Mill Machine

Place of Origin:

China

Brand Name:

Zhongdebao

Certification:

CE, SGS, BV

Model Number:

EWVR-600

Contact Us
Request A Quote
Product Details
Name:
New Wood Pellet Machine
Type:
Ring Die
Voltage:
220, 380, 415, 440V And Customize
Warranty:
24 Months
Color:
Customize As Your Like
Function:
Making Wood Fuel Pellets
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
20 ft container
Delivery Time
2-8 work days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
50 sets /month
Product Description

1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Biomass Sawdust Pellet Mill Machine



The vertical ring die pellet machine is currently a new type of granulator in China. This structure pellet machine adopts a large modulus hard tooth surface helical gear reducer, with reinforced main shaft, strong power output, stable equipment use, low failure rate, and low production cost. It is the main machine model in the biomass industry.



Features of the new wood pellet machine:

1. The feeding method is vertical material, which avoids material blockage due to the centrifugal force.

2. The grinding tool adopts multi processing to make it more durable, and the design is reasonable. The use of upper and lower layers of grinding tool holes not only reduces costs, but also increases production and efficiency.

3. The addition of an automatic lubrication system has changed the era of each oil injection, allowing for uninterrupted operation 24 hours a day, thereby increasing production.

4. A steam vent has been added to reduce the temperature inside the machine mold, resulting in longer mold usage time.

5. The use of thick steel plates greatly increases the self weight of the machine, making it more stable.

6. The exterior is painted to enhance the machine's corrosion resistance and aesthetic appeal

7. The length can be adjusted at any time, so that the length of particles can also be adjusted at any time.

8. The pressure wheel rotates to generate centrifugal force on the material, which is evenly distributed around it.



Main application:

1. Civil heating and domestic energy consumption: high fuel utilization rate, easy to store;

2. Biomass industrial boilers: As the main fuel for industrial boilers, they replace coal to reduce atmospheric emissions and pollution;

3. Power generation: It can be used as fuel for thermal power generation.



Technical Parameters:



Model Main power Inner diamater of ring mold Output capacity Weight Machine Size
EWVR-450 55KW 450mm 0.8-1 tons/hr 2.9 tons 2160*1000*1850mm
EWVR-560 90KW 560mm 1.2-1.5 tons/hr 5.6 tons 2300*1250*2000mm
EWVR-600 110KW 600mm 1.8-2 tons/hr 6.5 tons 3100*1300*2100mm
EWVR-600A 132KW 600mm 2-2.5 tons/hr 7 tons 2200*1200*1750mm
EWVR-700A 160KW 700mm 2.5-3 tons/hr 8 tons 2460*1400*2000mm

complete set including wood pellet mill, cyclone system to remove dust, automatic lubrication system, electric control cabinet and screw conveyor for feeding.

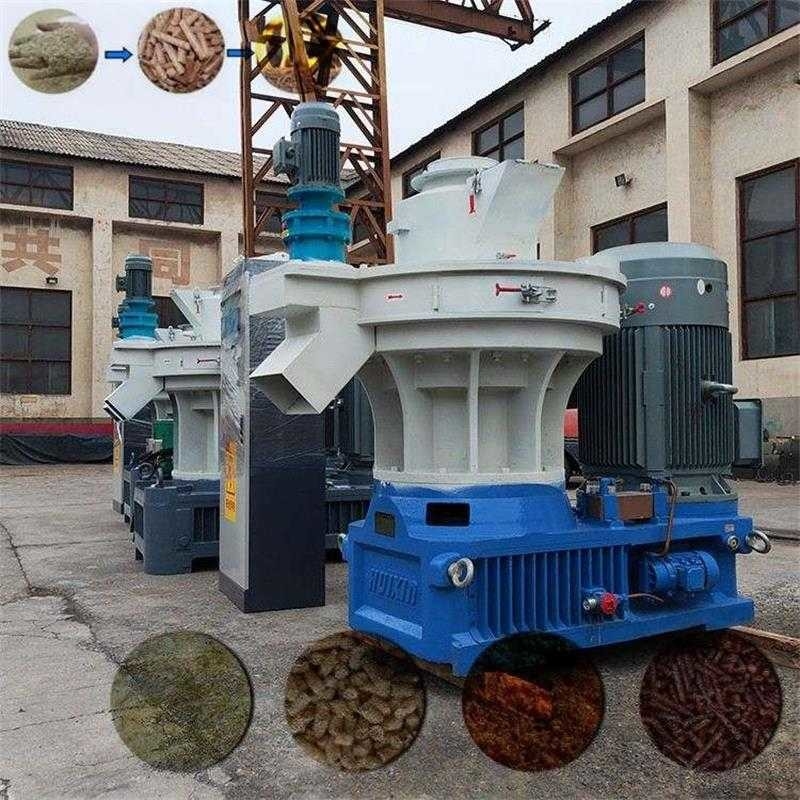

1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Sawdust Pellet Mill Machine 0

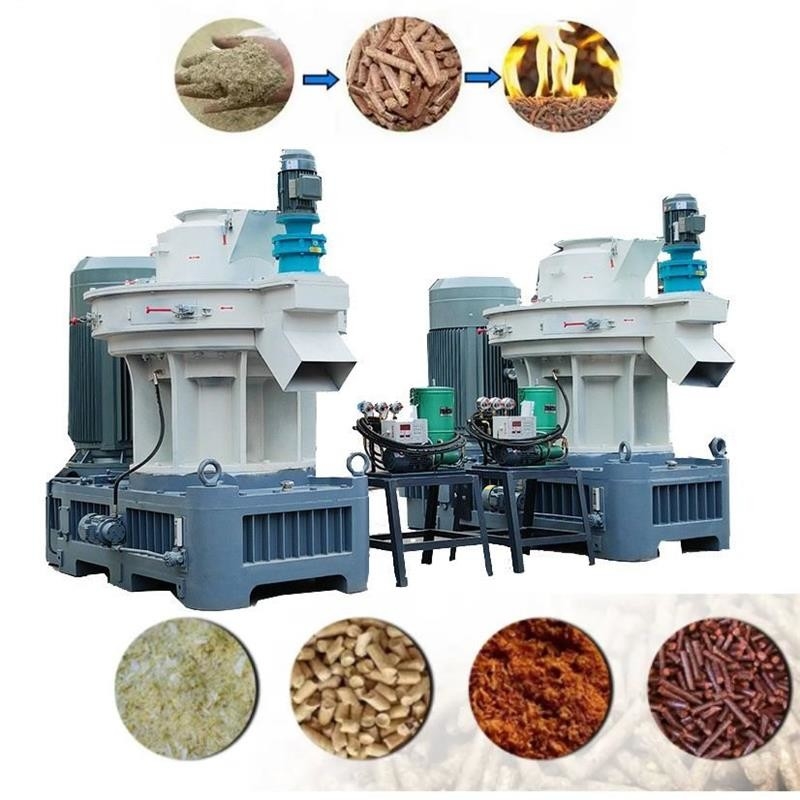

1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Sawdust Pellet Mill Machine 1

1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Sawdust Pellet Mill Machine 2

1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Sawdust Pellet Mill Machine 3

1.5-2 T/H New Wood Pellet Maker Vertical Ring Die Sawdust Pellet Mill Machine 4
