Wood Sawdust Pellet Mill Machine Roller Type Biomass Wood Pellets Machine

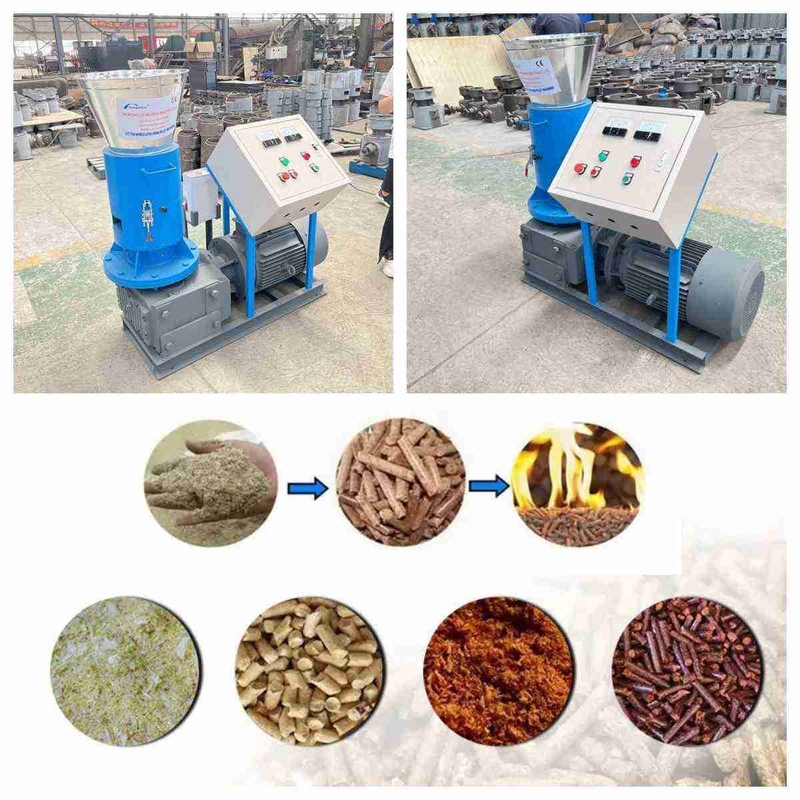

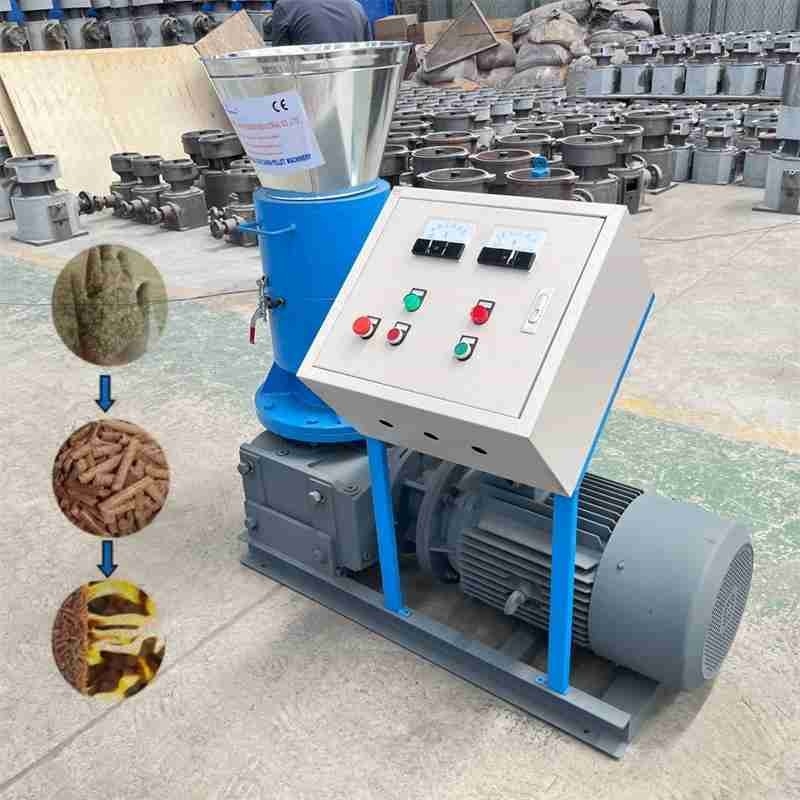

ZLMG420B Wood Pellet Mill Machine Roller Driven Type Biomass Wood Pellet Making Machine

The ZLMG420B wood pellet machine adopts a motor driven form and a flat mold moving roller design. Compared to previous pellet machines, the performance is more stable and the operation is smoother. The production capacity is 400-600 kilograms per hour, which is a very reliable, efficient, safe, and economical model!

Technical Parameters:

Model Meaning:

The model of the roller moving wood pellet machine is ZLMG 420B.

ZL: Product variety code: Refers to the granulation machine "granulation"

M: Professional code: Refers to sawdust (biomass) machinery and equipment

G: Product type code: represents the type of flat die moving roller

420: Product main specifications: represents the outer diameter of the flat mold mm

B: Product power form, B represents motor power

Installation, debugging and commissioning:

1. The entire machine is shipped from the factory and only needs to be installed directly. Due to the heavy weight of the equipment, the lifting strap must have sufficient strength and length, and the equipment should be in a horizontal state during lifting.

2. The equipment installation foundation should be flat and firm, and there should be a certain space left around the granulator for easy operation, maintenance, and repair.

3. In order to ensure the normal and stable operation of the granulator, users must be equipped with conveying equipment that can adjust the feeding speed to evenly feed the granulator.

4. The ZLMG420B equipment is equipped with an electrical control cabinet.

5. The equipment is equipped with an automatic lubrication device.

Auxiliary supporting products

1. The screw feeder belongs to the auxiliary product of the 420 type sawdust pellet machine. The pellet machine does not include the screw feeder, and can be purchased according to user needs.

2. The use of a screw feeder is for more efficient feeding of the particle machine, with uniform feeding and adjustable speed, reducing the impact of the particle machine motor current and providing protection for the motor.
