Full Automatic Floating Catfish Feed Pellet Making Machine Fish Feed Extruder Line
Product Description:

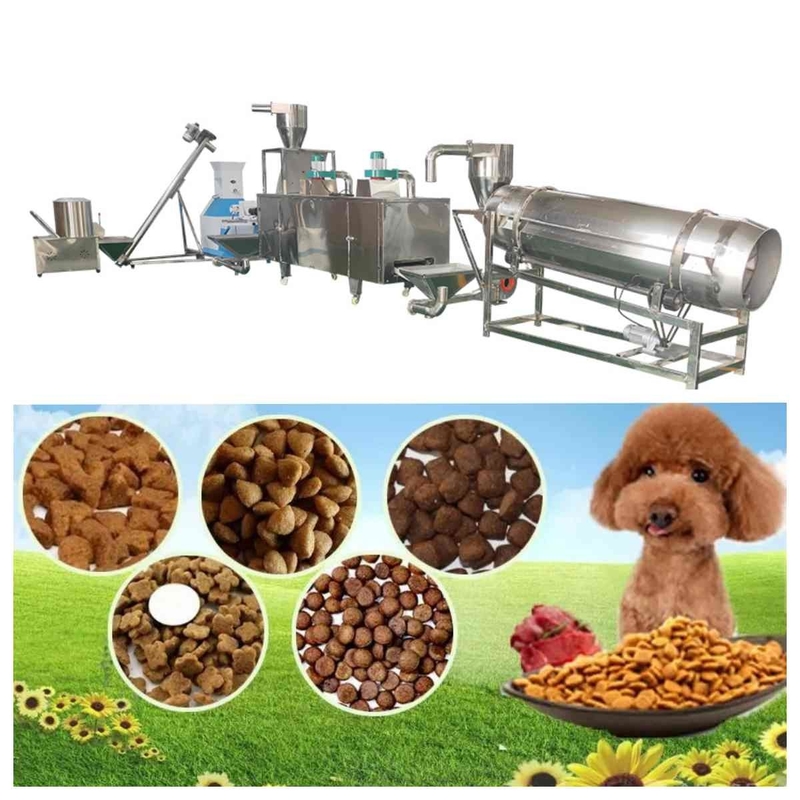

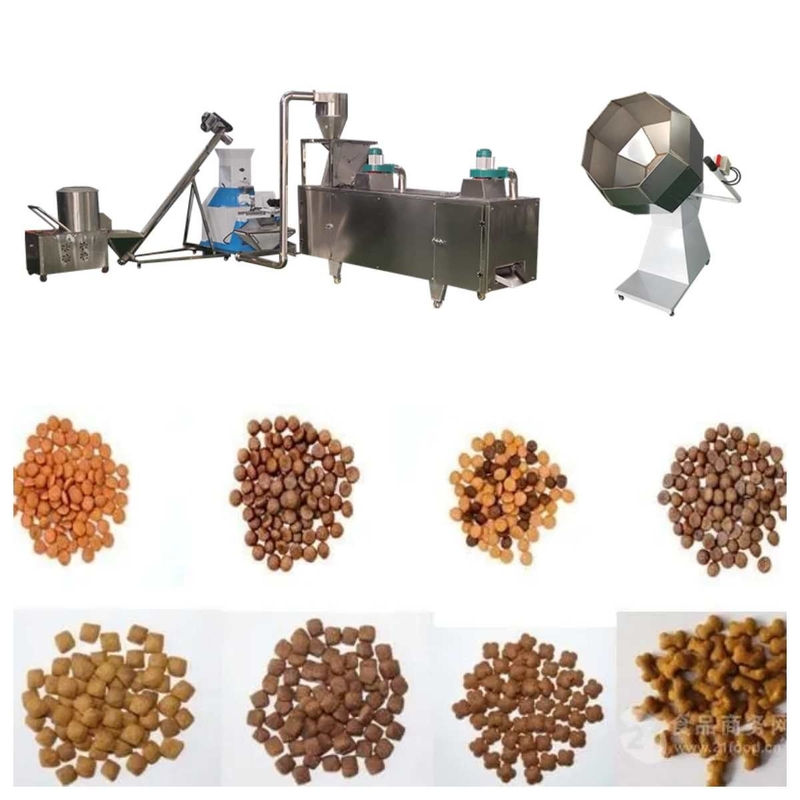

Mixer---Screw conveyor---Fish feed extruder---Air conveyor---Drying machine---Hoister---Flavor drum---Cooling conveyor
Features:
Materials :wheat/ corn flour, born powder and so on
Final feed: different shapes and sizes of dog food,cat food,fish food,shrim feed
Capacity of fish food equipment: 150kg/h, 250kg/h, 500-600kg/h
Consumption of fish food equipment: Low electricity and labor consumption
Design: With flexible design based on the client's demands, we provide turn key project.
Capacity:140-160kg/h,240-260kg/h,500-600kg/h
Technical Parameters:
| Parameter |
65
Pet Food ProcessingLine |
70
Pet Food ProcessingLine |
85
Pet Food ProcessingLine |
95
pet food processing line |
120
Pet food processing line |
135 pet food processing line |
| Power |
95KW |
120KW |
140KW |
180kw |
230kw |
280kw |
| Output |
100-160kg/h |
200-260kg/h |
500-600kg/h |
1-2t/h |
2-4t/h |
4-6t/h |
| Dimension |
22× 2× 4 |
24× 2× 4 |
28× 2× 5 |
32× 2× 5 |
35× 2× 5 |
38× 2× 5 |
Applications:
Aquatic Feed Processing Line can use meat meal, fish meal, corn powder, soya meal and other grains powder as raw materials to produce aquatic feed, such as fish feed, shrimp feed, etc. You can also use meat, bone, animal viscera, vegetable, fruit, etc to produce aquatic food.
Our aquatic feed process line can produce the different sizes of feed from 2mm to 10mm.
Our aquatic feed extruder machine can adjust the moulds, temperature, formula, etc to produce different shapes and tastes of dry pet food.
Support and Services:
1. OEM & ODM
2. One year guarantee and life-time maintenance service.
3. Consultation service before, during, and after sales.
4. Project planning and design services.
5. Debugging of machines until all are functional.
6. Training the customers how to operate and maintain the machines correctly.
7. Offer new product techniques and recipes timely
FAQ:
How to custom aquatic feed production line?
1. Tell us your target capacity
We can provide different capacities aquatic fed process line, like 140-160kg/h, 240-260kg/h, 400-500kg/h, 800-1000kg/h, 1-1.5T/h, 1.5-2T/h, 2-3T/h, etc.
2. Tell us the energy available in your workshop
We can provide the different energy of aquatic food drying equipment, like electric dryer, gas dryer, diesel dryer, steam dryer.
3. Tell us the industrial voltage in your workshop
Our aquatic food production line need both 3 phase voltage and single phase for. Please confirm it with your electrical engineer. For example, the industrial voltage in China is 3 phase 380V 50Hz and single phase 220V 50Hz.
4. We can also provide the material processing machines( like garins grinding machine, bone broker, meat grinder, colloid mill, etc) and packing machine.
