Name: 350kg/H Floating Fish Feed Production Line Pet Floating Fish Feed Pellet Machine
Brand: ZhengZhou ZhongDeBao Industrial Co., LTD
SKU: DGP-85 line
Price: 25,500.00 USD
Availability: InStock

Home > products > Floating Fish Feed Production Line >

350kg/H Floating Fish Feed Production Line Pet Floating Fish Feed Pellet Machine

350kg/H Floating Fish Feed Production Line

Floating Fish Feed Production Line SGS

Pet Floating Fish Feed Pellet Machine

Place of Origin:

China

Brand Name:

Zhongdebao

Certification:

CE BV

Model Number:

DGP-85 line

Request A Quote

Product Details

Warranty:

1 Year,

Certification:

CE ISO SGS

Voltage:

220V/380V, 380 V (accept Customized According To Your Local Voltage)

Condition:

New

Weight:

3200kg

Dimension(l*w*h):

According To Actual Wood Pellet Machine

Type:

Pet Fish Dog Cat Feed Pellet Line Machine

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Capacity:

350kg/h

Product Name:

Floating Fish Feed Pellet Making Machine

Application:

Floating Fish Pet Cat Dog Food Production Line

Power(w):

22kw 30kw 37kw 55kw

Material:

Stainless Steel

Motor:

Siemens, Chinese Brand Or As Clients Requirement

Raw Material:

Rice Flour, Corn Flour, Wheat Flour Soya Flakes Meal, Rice Bran , Wheat Bran, Fish Powder, Bone Powder

Name:

Floating Fish Pet Dog Cat Food Extruder Line

Color:

Blue Green And White , Customized , As Clients Requirements

Pellet Size:

1-12mm

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

price negotiable

Packaging Details

with wooden case package or directly loaded in the container

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union

Supply Ability

999 sets per month

Contact Now

Product Description

Fish feed making machine is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.

Equipment list in the fish feed production line:

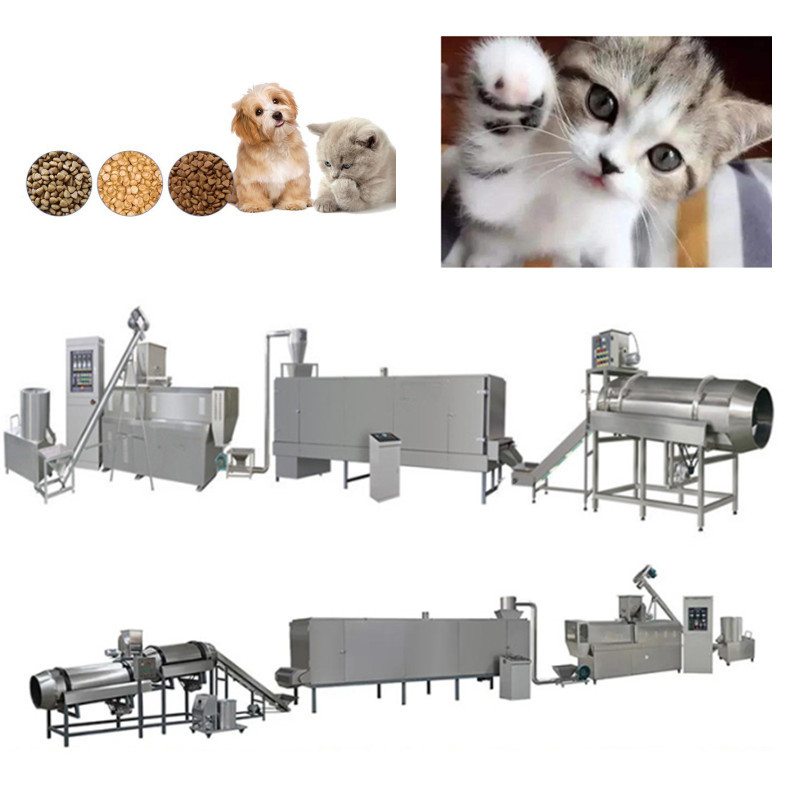

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

Raw material:
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

wet type screw extruder for floating fish feed pellet machine Pet food pellet making plant:

			Model

			Capacity t/h

			Main Power

			feeding power

			screw diameter

			cutting power

			conditioner power

			Weight

			DSP85

			0.35-0.4

			22kw

			1.1kw

			80

			0.75kw

			1.5kw

			1000kg

			DSP90

			0.5-0.6

			30kw

			1.1kw

			90

			1.1kw

			2.2kw

			2000kg

			DSP100

			0.6-0.7

			37kw

			1.1kw

			100

			1.1kw

			3kw

			2100kg

			DSP120

			0.7-0.8

			55kw

			1.1kw

			120

			1.5kw

			3kw

			2200kg

			DSP135

			1.0-1.5

			75kw

			1.5kw

			135

			2.2kw

			5.5kw

			3200kg

			DSP145

			2.0-3.0

			90kw

			2.2kw

			145

			2.2kw

			7.5kw

			4000kg

			DSP160

			3.0-4.0

			110kw

			2.2kw

			160

			3kw

			11kw

			4500kg

			DSP175

			4.0-5.0

			132kw

			3.0kw

			175

			3kw

			15kw

			5000kg

Sample of fish feed pellet:

			Name

			Twin screw extruder(wet type/dry type)

			Usage

			To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould

			model

			DSE65, 70, 75, 90, 95, 120, 135

			Motor

			22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.

			Capacity

			100kg/h to 10 ton/h

			Material

			Screw materials 38CrMoAl

			stainless steel, carbon steel

			Name

			Dryer (oven)

			Usage

			the expanded food go through the “s” passage, to be dried to increase the self life.

			Type

			electrical, steam, gas fired, diesel fired heating type

			Motor

			KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.

			Capacity

			100kg/h to 10 ton/h

			Material

			stainless steel, carbon steel

			Name

			Flavoring machine

			Usage

			To mix the oil and flavors on the surface of the fish feed

			Type

			single and double flavoring drum

			Motor

			0.75kw

			Capacity

			100kg/h to 10 ton/h

			Material

			stainless steel

			Name

			Packaging machine

			Usage

			To pack the fish feed with required weight

			Flowing Process

			Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing

			Weight range

			1-5kg/bag, 5-25kg/bag, 25-50kg/bag

			Material

			stainless steel, carbon steel

			Type

			Automatic

Equipment list in the fish feed production line:
mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine
