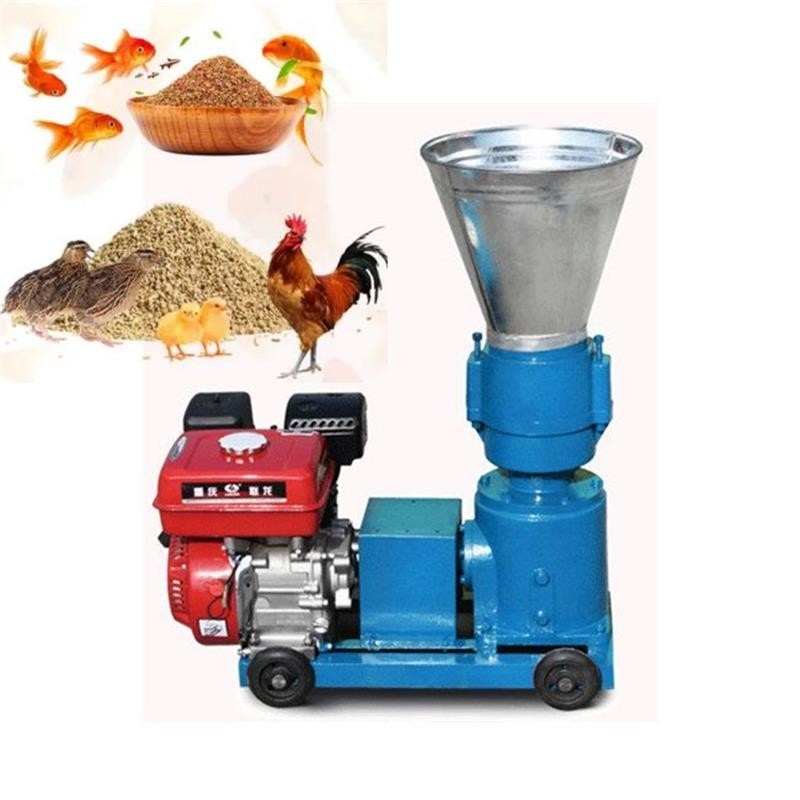

100-800KG/H Diesel Pellet Machine Poultry Chicken Feed Maker Machine

100-800KG/H Diesel Engine Driven Feed Pellet Machine Poultry Chicken Feed Maker Machine

Feed pellet machine - diesel engine driving model, compact in appearance, with a maximum output of 800Kg/h. Users can choose different pore sizes to produce particles of different sizes according to their own needs, or choose different compression ratios of molds based on their own materials to produce particles suitable for different poultry and livestock.

Technical Parameters:



Working principle:
The ZLSP series feed pellet machine uses an electric motor or diesel engine as the driving shaft for power, and operates in cycles based on this.
The main shaft, mold plate, and friction pressure roller are driven by gears, resulting in a friction temperature (between the pressure roller and mold plate) that can reach up to 80 ° C. Under the action of high temperature and pressure rollers, high-quality formed particles are rolled out of the discharge port through the holes on the mold plate. At the same time, the length of the particles can be set according to the position of the blade you adjust.
The flat mold equipped with the machine is processed based on a large amount of experimental data obtained from different raw materials, which will have a good effect on general raw materials. However, if the particles produced by your material are dusty and have low forming efficiency, you can adjust the compression ratio of the flat mold according to the material.

Main features:
1. Suitable for small and medium-sized users, with low energy consumption and low noise.
2. The floor area is small and only a small space is needed.
3. The particles are dried in and out, forming in one go, with high hardness, which is conducive to storage and transportation.
4. Common raw materials can be pressed and provide compression ratios of over 30 common raw materials, allowing you to make perfect particles.
5. Equipped with a diesel engine can save electricity and be used directly outdoors
6. The mold disc can be used on both sides, with multiple apertures of 2.5-12mm etc. making it more economical and practical.
