Pellets Plant 12mm Vertical Ring Die Pellet Machine Hardwood Pellet Mill Rice Husk

Pellets Plant 12mm Vertical Ring Die Pellet Machine Hardwood Pellet Mill Rice Husk

12mm Vertical Ring Die Pellet Machine

12mm Hardwood Pellet Mill

Hardwood Pellet Mill Rice Husk

Place of Origin:

China Henan

Brand Name:

ZHONGDEBAO

Certification:

CE, SGS,BV

Model Number:

EWVR

Contact Us
Request A Quote
Product Details
Capacity:
0.8-4t/h
Power:
55-160kw
Die Diameter:
450-700mm
Wood Pellet Diameter:
4-12mm
Voltage:
380V/50HZ/3Phase Or Customized
Material Of Die:
Alloy Steel
Product Name:
Wood Pellet Mill Machine
Lubrication System:
Automatic
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 2000-20000 set
Packaging Details
Standard export wooden box packing
Delivery Time
20-30 working days
Payment Terms
T/T/western union ect
Supply Ability
100unit/month
Product Description

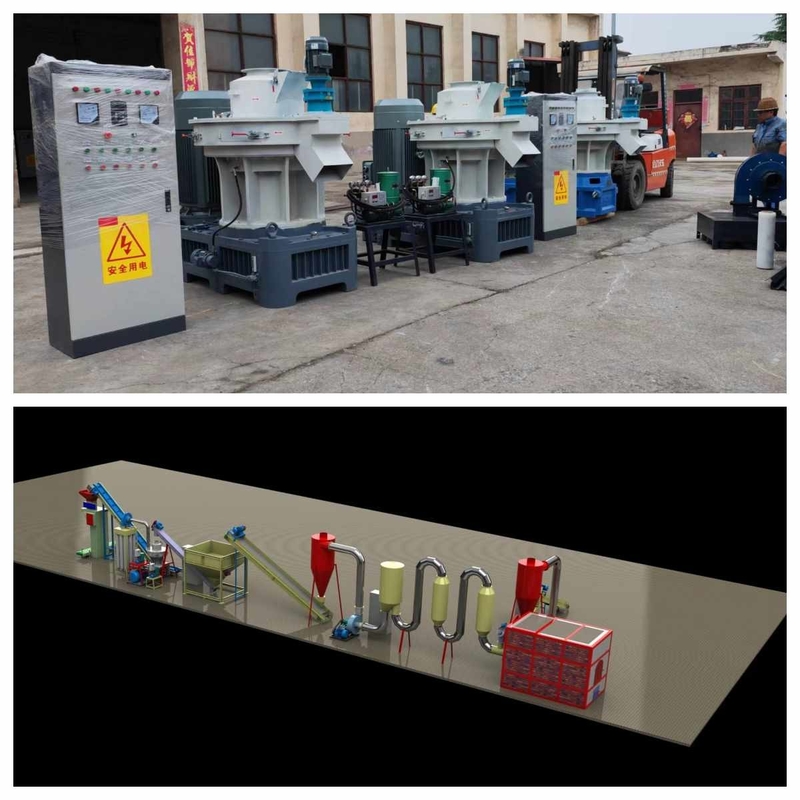

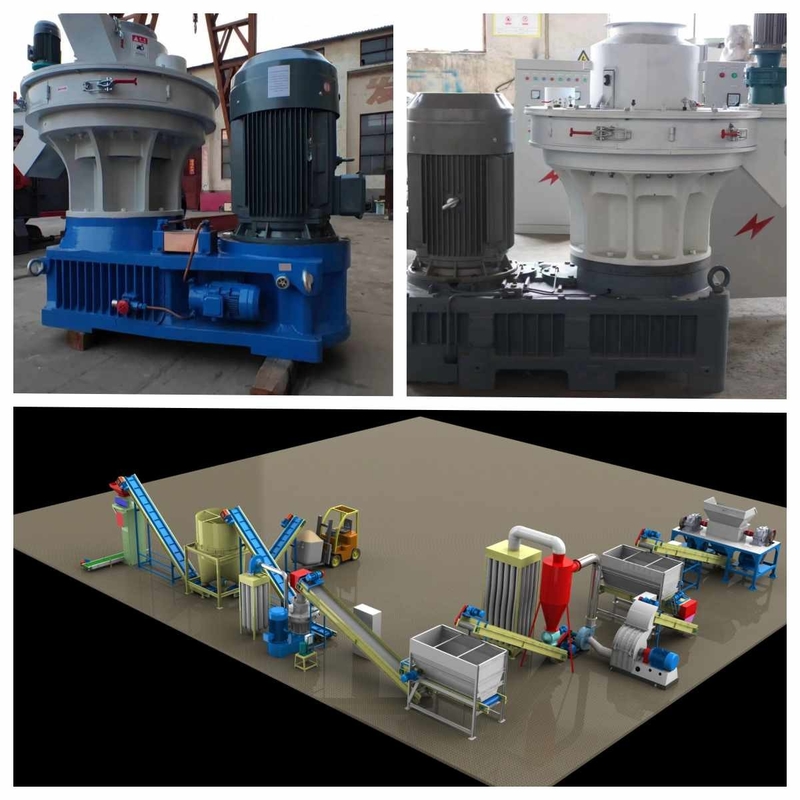

Pellets plant hot selling in Europe Vertical ring die wood pellet mill for hardwood rice husk

Product Description:

Our Wood Pellet Mill Machine for sawdust uses rice husk, peanut shell, melon seed shell, bamboo chips, bagasse, palm shell, branches, branches, bark, leaves and wood scraps; Large furniture factories, timber factories, sawdust produced by various kinds of wood in the production process, etc., are used as raw materials to be processed into renewable fuel particles instead of coal in the future.



Ring-die granulator is more suitable for hard and difficult-to-shape substances, such as sawdust, rice husk, palm silk, etc. Compared with the traditional ring-die granulator, it is more stable, highly automated, cleaner, simple to operate and convenient to maintain. But the price is also slightly higher.

But that advantage are also obvious:

1. This wood chip granulator in our factory is designed for hard-to-shape materials, and it is more suitable in terms of working principle.

2, timing quantitative dynamic automatic supply lubricating oil device. Free from manual lubrication, can work continuously.

3. Timing and quantitative feeding device. Avoid blocking the machine due to excessive manual feeding.

4, the mold is used twice, which reduces the cost of users.

5. The control system of power distribution cabinet is integrated with the host, and the dust removal system is integrated with the host.

6. Closed automatic breaking and discharging device. 7. The equipment is maintenance-free and the maintenance cost is low.



Features:

1. Low energy consumption. A set of equipment only needs 75 kilowatts of power supply, which produces 1 ton of material particles and consumes only 60 kilowatts of electricity;
2. Saving human resources. A set of equipment needs only two people from production to packaging, and the labor intensity is low;
3. Optimization of production environment. There is a dust removal system inside the equipment, which has low noise and no smoke and sewage discharge;
4. The operation efficiency is high. Low mechanical wear, simple operation and convenient maintenance;
5. Wide application. The occupied space is small, and it can be applied to both cities and rural areas. Not only can all kinds of agricultural and forestry wastes be processed into biomass granular fuel, but also sludge from sewage treatment plants, smoke residues from cigarette factories, drug residues from pharmaceutical factories, vinegar residues from vinegar factories and sugar residues from sugar factories can be processed into biomass granular fuel.



Technical Parameters



model die dia pellets dia(mm) dimension(mm) weight(ton) capacity(t/h) power(kw)
HR-450 450 φ4-12 2400*1000*2100 4.5 0.8-1 75
HR-600 600 φ4-12 2950*1300*2450 9.5 1.5-2 160
HR-700 700 φ4-12 3350*1450*3180 14.5 2.5-3.5 220


Support and Services:

Pellet Mill Machine Technical Support and Service

We provide technical support and service for our Pellet Mill Machine products. Our team of experienced technicians and engineers can provide you with various services to ensure that your Pellet Mill Machine is running optimally.

Installation and Setup

Our technicians provide installation and setup services for the Pellet Mill Machine. We can help you with the setup of the machine, as well as the installation of the necessary components and accessories.

Troubleshooting and Maintenance

Our technicians can provide you with troubleshooting and maintenance services for the Pellet Mill Machine. We can help you identify and resolve issues with the machine, as well as provide regular maintenance and upkeep.

Technical Support and Advice

Our team of experienced technicians and engineers can provide you with technical support and advice. We can help you with any questions or concerns you may have about the Pellet Mill Machine, as well as provide you with tips and tricks to ensure optimal performance.



FAQ:

Q1: What is the Brand Name of the Pellet Mill Machine?
A1: The Brand Name of the Pellet Mill Machine is ZHONGDEBAO.
Q2: What is the Model Number of the Pellet Mill Machine?
A2: The Model Number of the Pellet Mill Machine is EWVR.
Q3: Where is the Place of Origin for the Pellet Mill Machine?
A3: The Place of Origin for the Pellet Mill Machine is China Henan.
Q4: What are the Certifications the Pellet Mill Machine has?
A4: The Pellet Mill Machine has CE, SGS,BV Certifications.
Q5: What is the Minimum Order Quantity for the Pellet Mill Machine?
A5: The Minimum Order Quantity for the Pellet Mill Machine is 1 set.
