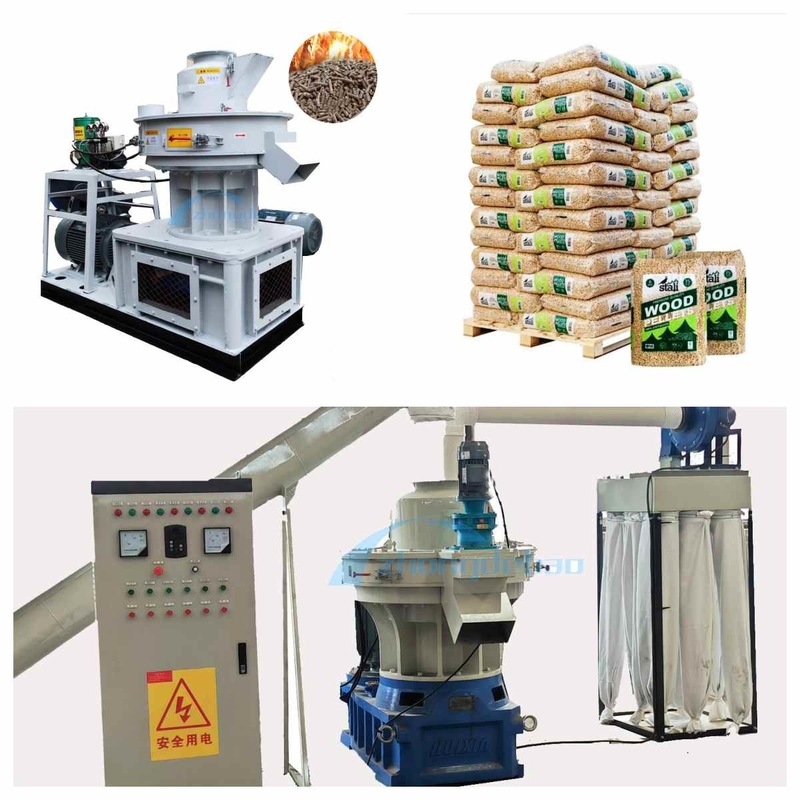

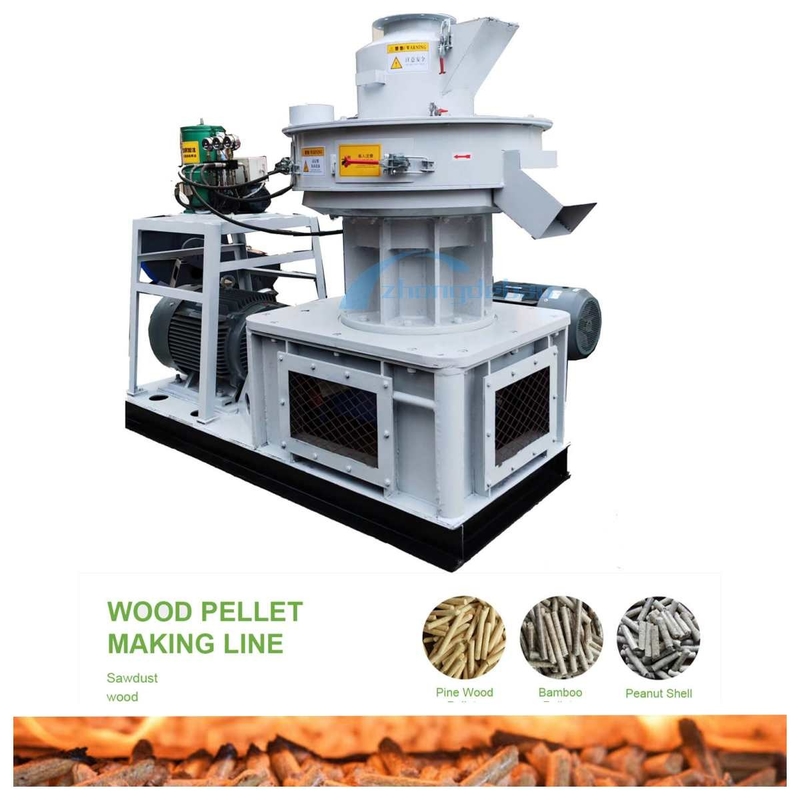

450 Model 1000kg/H Vertical Biomass Wood Pellet Mill With Automatic Lubrication System
Product Description:
This kind of wood pellet producing machine is our initiative product in China through meticulous research and development. And this machine with the Special design, rational structure, low power consumption and high efficiency, sturdy and durable, it achieves combining the advantage of both flat die pellet machine and horizontal ring die pellet mill and becomes the real professional pellet machine that is used to the materials with low adhesiveness and low shaping, such as the rice husk, sunflower husk, peanut shell and other fruit shell, branch, trunk, bark and other wood waste, a variety of crop straws, household waste, rubber, cement, ash and other chemical materials. is widely used in the biomass-energy fuels plant, power plant, wood processing plant, MSW processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping equipments with low investment and high profit.
Features:
A: Vertical die, feeding vertically; No arching of raw materials, easy for heating dissipation.
B: Die fixed, rollers rotating, better for even material distribution.
C: Independent lubrication; high pressure filtration, clean and unblocked
D: Independent and frequency changeable cutting device ensuring high pelletizing rate
E: The key parts are made of superior alloy steel with heat treatment by German vacuum furnace, so its service life is prolonged by 5-7times.
F: The machine with the automatic lubricating system that the grease is injected and filtrated automatically, which can ensure the long time working without stop.
G: The dust and cooling system that can reduce the dust during it working and improve the working environment.
Technical Parameters:
| Product Name |
Wood Pellet Mill Machine |
| Material of Die |
Alloy Steel |
| Wood Pellet diameter |
4-12mm |
| Voltage |
380V/50HZ/3Phase Or Customized |
| Die Diameter |
450-700mm |
| Lubrication System |
Automatic |
| Power |
55-160kw |
| Capacity |
0.8-4t/h |
Applications:
Wood, sawdust, crop straw(Rice straw, wheat straw, corn stalks, sorghum stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse etc.
Support and Services:
Pellet Mill Machine Technical Support and Service
Our experienced team of professionals provide technical support and service for Pellet Mill machines. We understand the importance of keeping your operation up and running and offer our expertise to help ensure that your Pellet Mill machines are running at peak performance.
We offer the following services for Pellet Mill machines:
- Preventive maintenance
- Troubleshooting and repair
- On-site installation and commissioning
- Minimizing downtime
- Post-installation service and support
Our team of technical experts are available to answer any questions you may have and provide the support you need to keep your Pellet Mill machines running smoothly. Contact us today to learn more about our comprehensive technical support and service for Pellet Mill machines.
FAQ:
Q1: What is the Brand Name of the Pellet Mill Machine?
A1: The Brand Name of the Pellet Mill Machine is ZHONGDEBAO.
Q2: What is the Model Number of the Pellet Mill Machine?
A2: The Model Number of the Pellet Mill Machine is EWVR.
Q3: Where is the Place of Origin of the Pellet Mill Machine?
A3: The Place of Origin of the Pellet Mill Machine is China Henan.
Q4: What Certifications does the Pellet Mill Machine have?
A4: The Pellet Mill Machine has CE, SGS, and BV Certifications.
