500kg/H Poultry Feed Pellet Making Machine Chicken Cattle Feed Pellet Plant

 500kg/H Chicken Cattle Poultry Small Feed Pellet Production Line For Farm

HomeuseProduct Description:

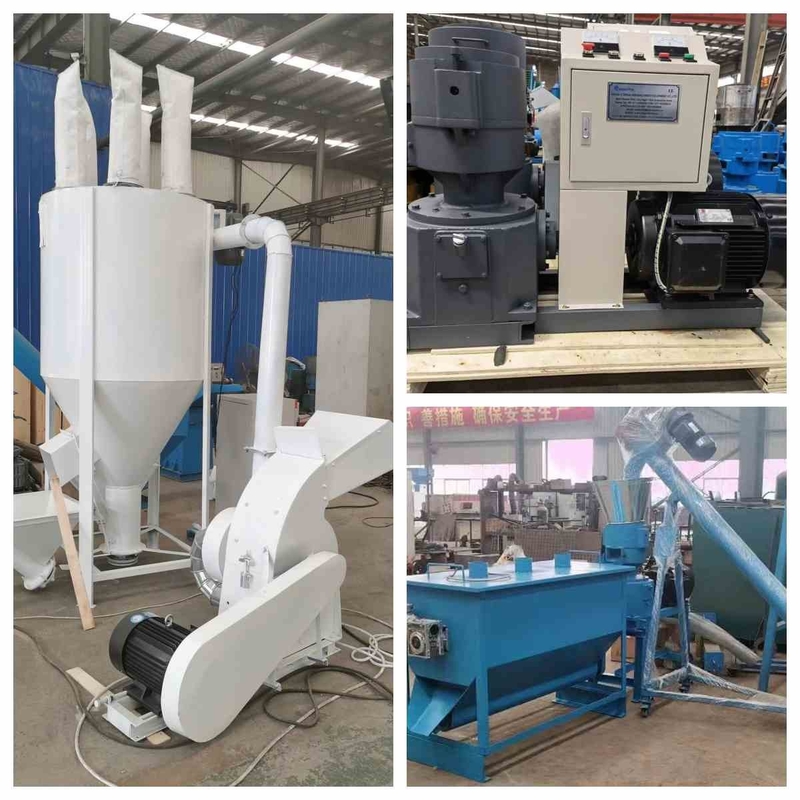

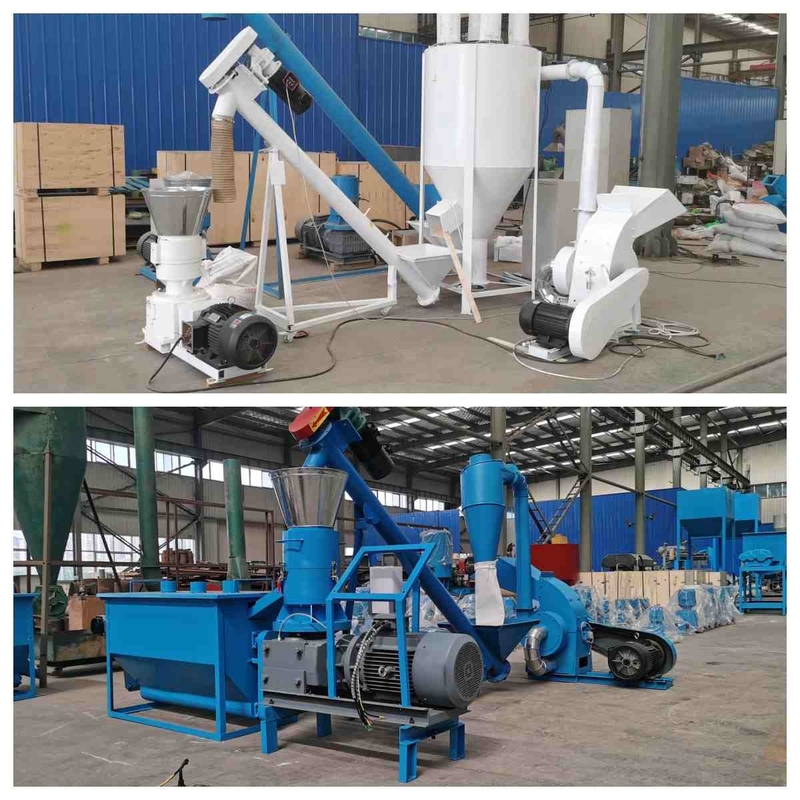

Constituent part: Crusher machine >>Dryer machine >> pellet machine >>Cooler >>Packing machinery. Auxiliary equipment: Screw conveyor

Flat-die feed pellet machine is a common feed pellet machine, which uses flat dies to make pellet feed. Its working principle can be divided into the following steps:

Pretreatment of raw materials: firstly, feed raw materials are crushed or ground to obtain smaller particle size. This process can be completed by using a grinder or a pulverizer.

Granulation process: Next, put the pretreated feed granules into the main machine of flat die feed pellet machine. There is a plane mold inside the main engine, which has a narrow channel with many small holes in it. When the mold is rotated, the feed particles will be compressed and form new particles through these holes. In this process, the surface of the mold will be coated with a layer of lubricant to reduce friction and heat and improve the smoothness of particles.

Cooling of particles: The newly formed particles have high temperature and need to be cooled quickly. Therefore, there is usually a cooler at the exit of the flat die feed pellet machine to cool the particles to a proper temperature. The cooler is usually a long metal pipe with cooling gas or liquid in it, which can quickly cool the particles.

Finishing of particles: finally, finishing the cooled particles to make them more uniform and smooth. This process is usually completed by vibrating screen or air separator. Particles can be separated and screened according to size and weight. The air separator is a ventilation device, which can separate light particles from heavy particles by the action of wind.

Demonstration diagram of flat die disk

Demonstration diagram of flat die moving roller
Generally speaking, flat die feed pellet machine produces uniform and smooth pellet feed by compressing and shaping feed pellets in a flat die and rapidly cooling them in a cooler. These pellet feeds are not only easy to store and transport, but also can improve the appetite and digestibility of animals, so they have been widely used in animal husbandry.

Features:

1. Simple structure, wide adaptability, small floor space and low noise.
2. Powdered feed and grass powder can be granulated without adding a little liquid, so the moisture content of granulated feed is basically the moisture content of materials before granulation, which is more conducive to storage.
3. Chicken, duck, fish, etc. can get higher economic benefits than mixed powder feed.

4. Dry material processing, the produced feed particles have high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.
5. The process of particle formation can denature pancreatin resistance factors in grains and beans, reduce the adverse effects on digestion, kill various parasite eggs and other pathogenic microorganisms, and reduce various worms and digestive system diseases.

Technical Parameters:

Applications:

Feed pellet machine is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small feed processing plants.

Packing and Shipping:

The Packaging and Shipping of Feed Pellet Maker includes the following steps:

1. The Feed Pellet Maker is carefully packaged in a cardboard box with sufficient cushioning material to protect against any damage during transit.
2. The box is then sealed with packaging tape to ensure that the Feed Pellet Maker is secure and protected from any possible damage.
3. The box is then labeled with the product name, order number and shipping address.
4. The Feed Pellet Maker is then placed in a shipping container and sent to the customer's address.

FAQ:

Q:What is the brand name of this product?

A:The brand name of this product is Zhongdebao.

Q:What is the model number of this product?

A:The model number of this product is EWPL150-400.

Q:Where is this product manufactured?

A:This product is manufactured in China.

Q:What kind of product is Feed Pellet Maker?

A:Feed Pellet Maker is a device used for making feed pellets for animal feed.

Q:How many pellets can this product make per hour?

A:This product can make up to 400 pellets per hour.
