Product Description
Wood Pellet Production Line
Wood sawdust pellet machine is the perfect solution for producing small-scale fuel pellets in a convenient and cost-effective way, whether you need to produce them at home, on the farm, in the yard, or out in the open air. This versatile machine can handle a wide range of materials, including straw, peanut shells, wood chips, rice husk, cotton stalk, cotton seed hull, and weeds, among others. Using the wood sawdust powder raw material, the machine evenly spreads the material into the space between the flat die and roller. It then presses the material into the mold hole, forming column-shaped pellets. As the pellet rotates along with the rotating ring die mold, it gets cut to the desired length. The wood pellet production line consists of a wood crusher machine, screw conveyor, and wood pellet machine. With our machine, you can easily produce premium-quality wood pellets for your specific needs.

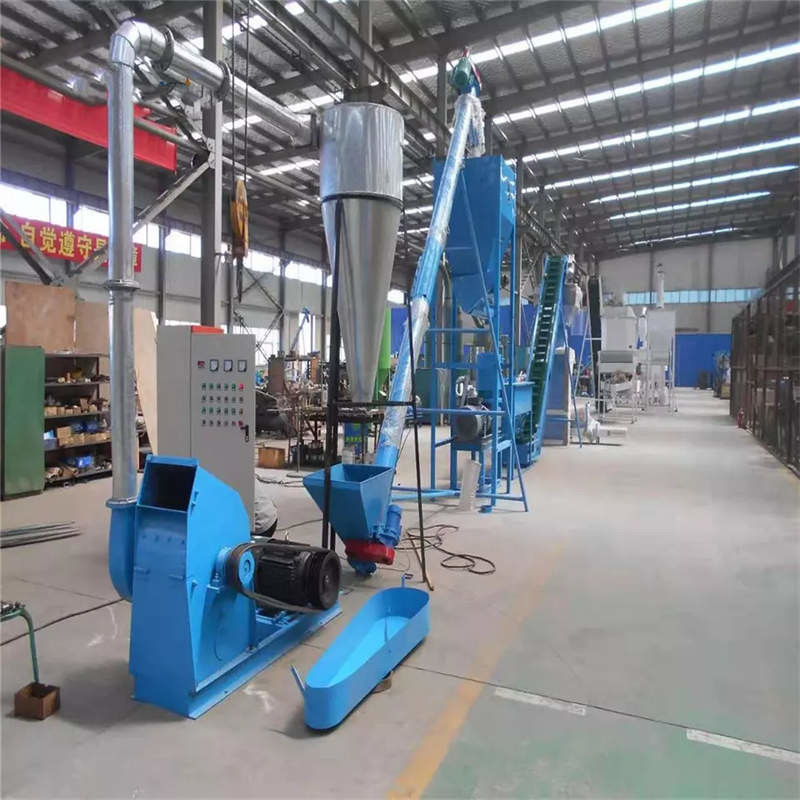

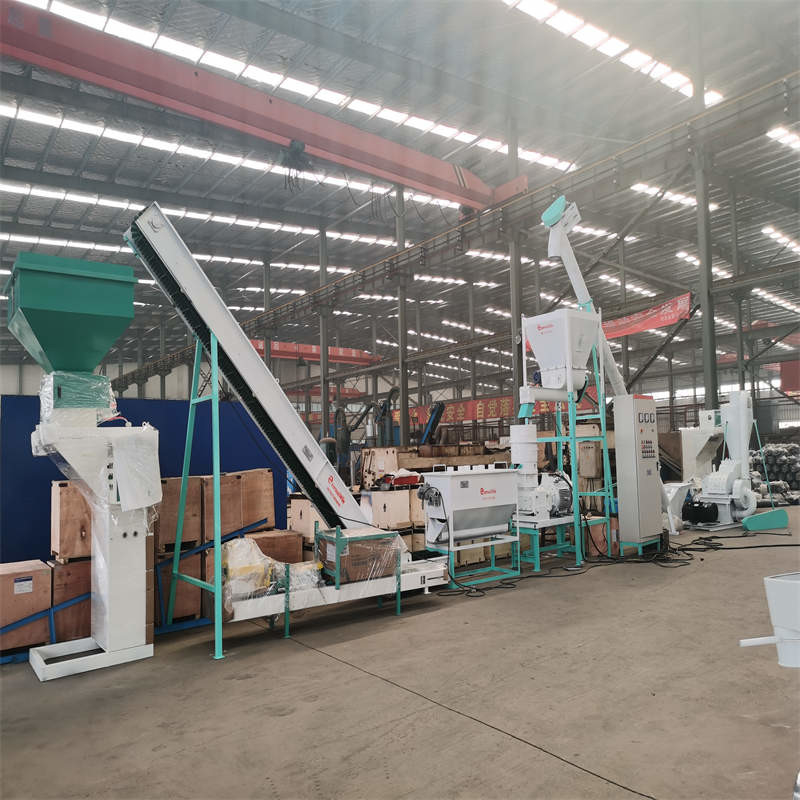

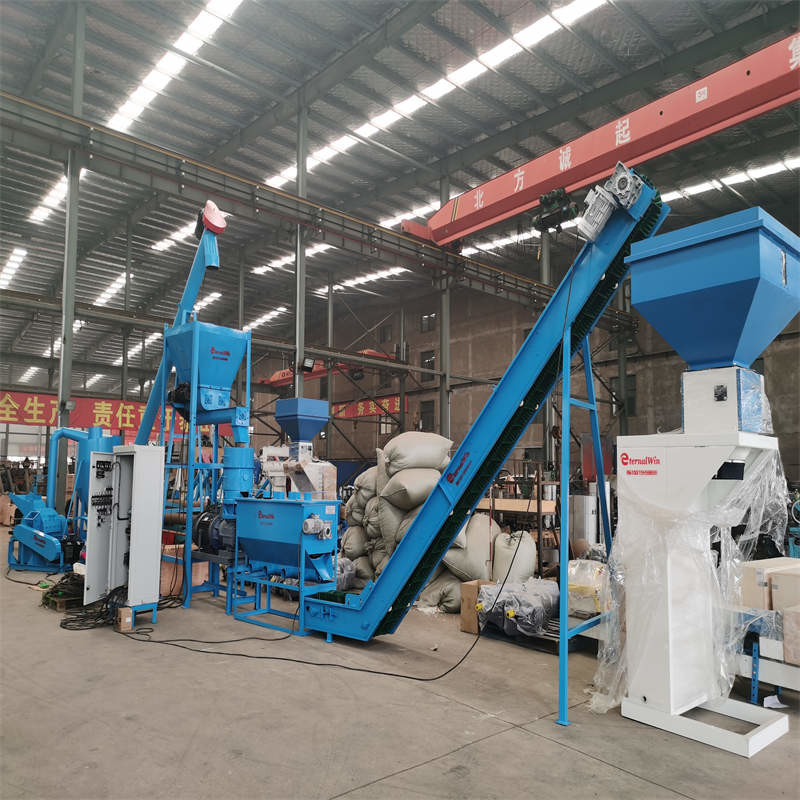

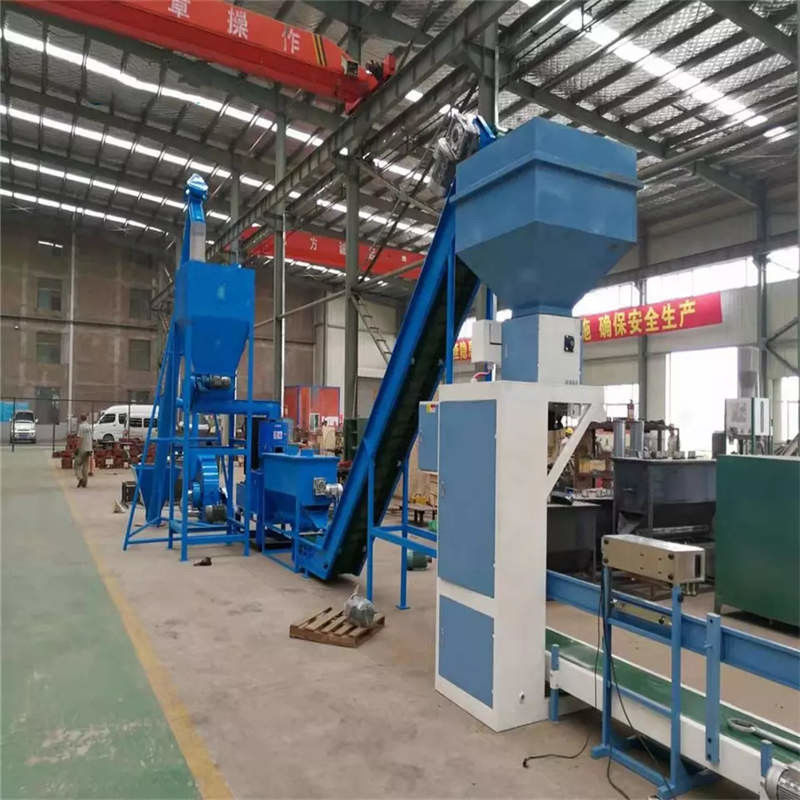

This complete production line mainly consists of the following equipment:
1. Wood crusher-1 unit
2. Cyclone dust collector - 1 set
3. Screw feeder-1 set
4. Stock box-2pcs
5. Feeder-2 pieces
6. Wood pellet machine-2 units
7. Bucket elevator-2 units
8. Cooling screening machine - 1 set
9. Belt conveyor-1 set
10. Packaging machine-1 set
11. Electric control cabinet-1 set
| Category |
Model |
Power(kw) |
Capacity(t/h) |
Dimensions(m) |
| 0.5-1 tons per hour |
STWP400-1 |
87 |
0.5-1 |
18*5*6 |
| 1-2 tons per hour |
STWP400-2 |
118 |
1-2 |
20*5*6 |
| 5-6 tons per hour |
STWHL720-2 |
634 |
5-6 |
70*10*6 |
More other model are waiting for you. Welcome to ZhongDeBao to inquiry. We are always at your service.
Application
Company Profile
Zhongdebao was established in 1998, specializing in R&D, production and sales of feed pellet machine ,wood pellet machine, pet/fish feed pellet machine. In short, it is a company integrating R&D, manufacture, sales, installation and all kinds of service.
Zhongdebao always regards quality as a core foundation and also deploys advanced facilities of the domestic and international
brand as well as owns over 80 national ,provincial man municipal scientific achieveme-nts.
FAQ
Question 1 : I know little for wood pellet machine and production line, what should I do ?
A: No need to worry. Kindly share your requirements with us, for instance, the type of biomassyou intend to manufacture, your target hourly output, the number of raw materials needed and any other necessary details. We'll suggest appropriate biomass machinery and create a tailored flow diagram for your production process.
Question 2 : Does the pellet machine have any requirements for raw materials?
A: Grain materials do not need to be crushed, but forage and straw must be crushed before they can be processed. It is best to use powder materials because the particles made from powder materials are evenly nutritious.
Question 3: Can we customize our logo/website/company name on Feed pellet machine?
A: Of course, we offer OEM and ODM service.
Question4 : How long is your warranty time ?
A: One year(Calculated from the equipment arriving the customer’s side.). After this period, we will definitely provide you with great support whenever you need. In a word, you will be welcome to contact us with any problems.
