Place of Origin:
China
Brand Name:
Zhongdebao
Certification:
CE,SGS
Model Number:
EWP

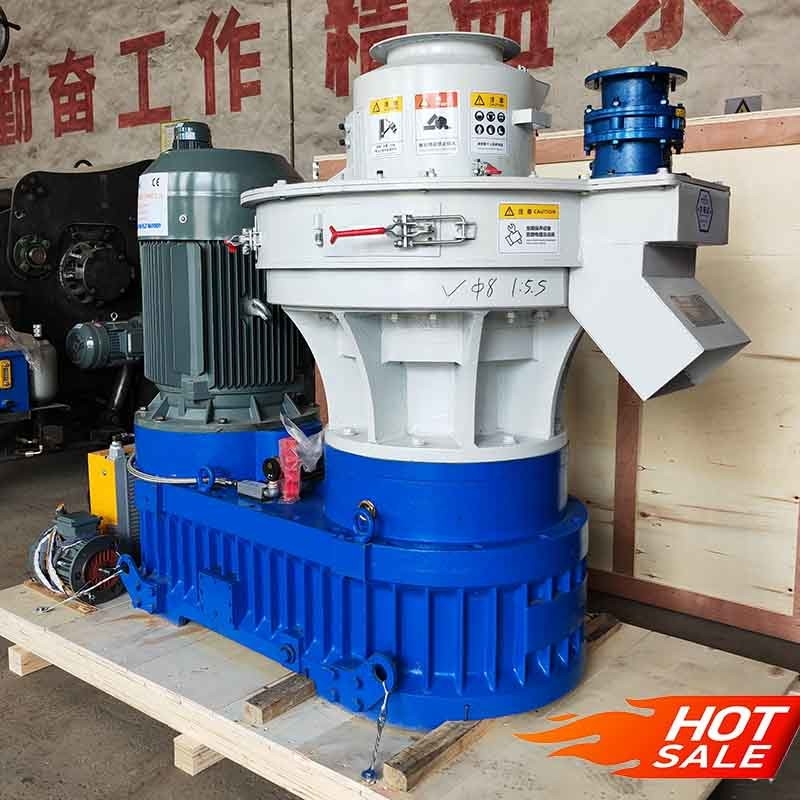

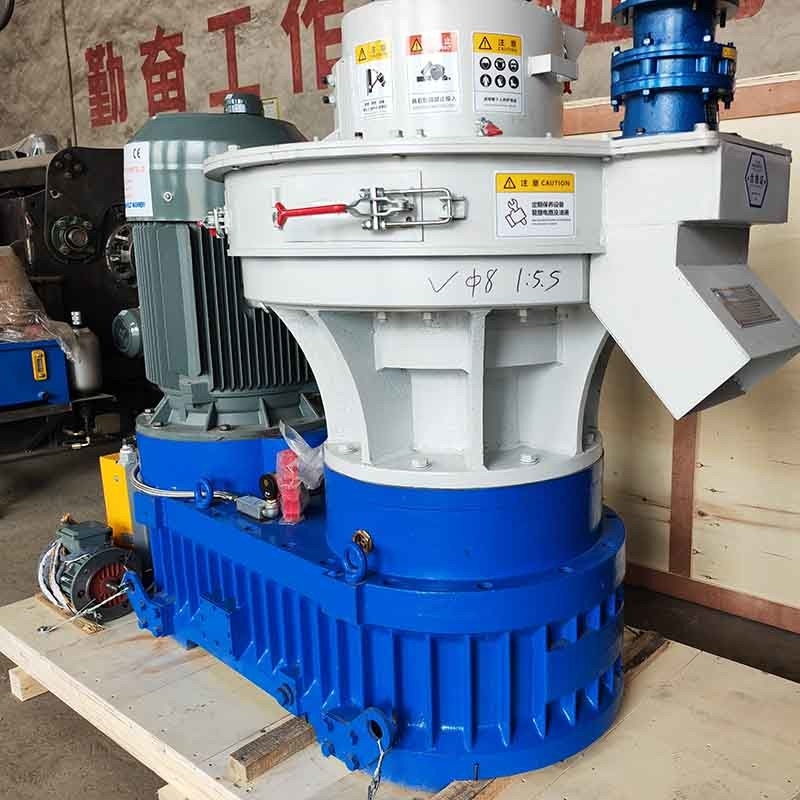

800 KG/H Capacity Wood Pellet Press Machine Wood Pellet Mill For Biomass Pellet Maker
Product Description
Wood chip pellet machine is a kind of equipment that produces biomass pellet fuel from wood materials (branches, bark, wood chips, sawdust, shavings, wood scraps, wood scraps, etc.) and other biomass materials (bamboo, rice husks, fruit shells, coconut shells, palm, etc.). Our company produces a full set of equipment for biomass pellet fuel production line (depending on the raw materials, different production processes are used, and the production line generally includes crusher, dryer, screening system, conveyor pellet machine, etc.)
Application Of Wood Pellet Mill:
It is mainly suitable for coarse fiber granulation, such as: sawdust, rice husk, cotton stalk, cottonseed husk, weeds and other crop straws, domestic garbage, factory waste, granulation of materials with low bonding rate and difficult to form, It can be applied to low-temperature granulation of biological bacterial fertilizer, organic fertilizer, compound fertilizer, etc. It can also be used for pressing and granulating various feeds.
Use of finished products
Biomass pellet fuel has high calorific value, low cost, clean, easy to store and transport, and can be used in industrial and agricultural production, power generation, heating, boiler burning, aluminum, drying, gasification combustion, chemical industry, textile, etc. It burns smokeless and odorless, cleanly. It is a clean energy.
Technical Parameters
Model | Power | Capacity | Contains equipment |
EWP-450 | 55 KW | 0.8-1 T/H |
(1) Feeding conveyor, (2) wood pellet machine, (3) dust removal, (4) automatic lubrication system, (5) electric control cabinet |
EWP-560 | 90 KW | 1.2-1.5 T/H | |
EWP-600 | 110 KW | 1.8-2 T/H | |
EWP-600A | 132 KW | 2-2.5 T/H | |
EWP-700A | 160 KW | 2.5-3 T/H |
Main Performance Characteristics:
1. Equipped with a heavy-duty reducer to effectively extend the life of the equipment.
2. Both ends of the finale shaft of this model are consistent with the linear speed of the inner and outer rings of the die plate, and there is no dislocation friction between the wheel and the die, which reduces resistance, reduces kinetic energy loss, and prolongs the service life of the abrasive tool.
3. The finale is set evenly and runs smoothly.
4. The central pressure regulating structure is adopted to adapt to different materials and ensure the pressing effect. The compression molding of sawdust [sawdust], corn stalks, and crop stalks requires a lot of pressure. The central part of similar granulation equipment is made of high-quality alloy steel, which improves the service life of the wheel.
5. The template of this structure is stationary, and the main shaft drives the pressing wheel to press the material, which is suitable for pressing difficult-to-press particles.
6. This model is equipped with 3-30mm various hole diameter molds, which are suitable for granulation of different materials
