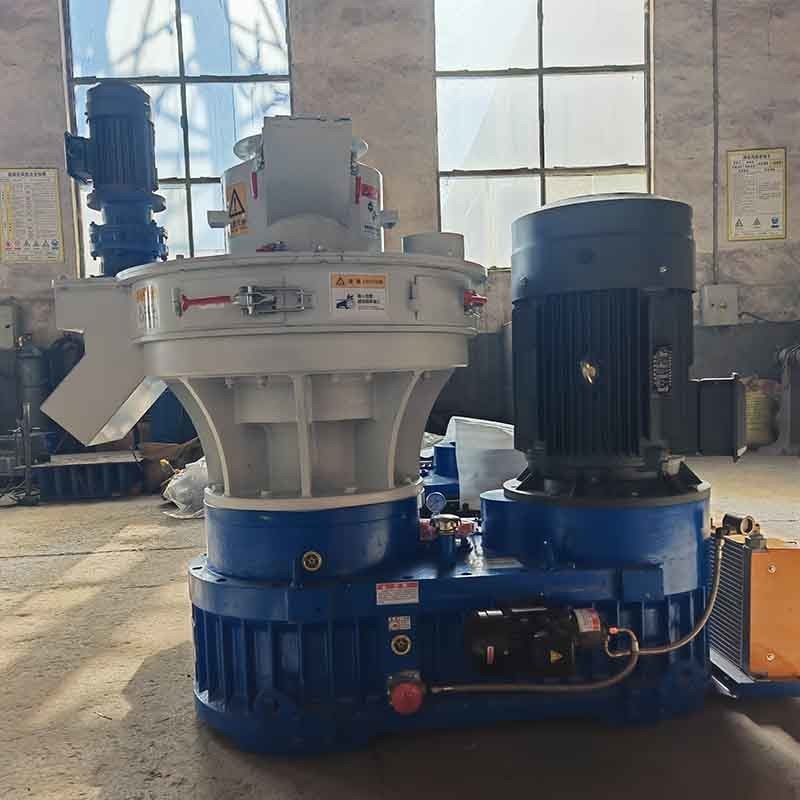

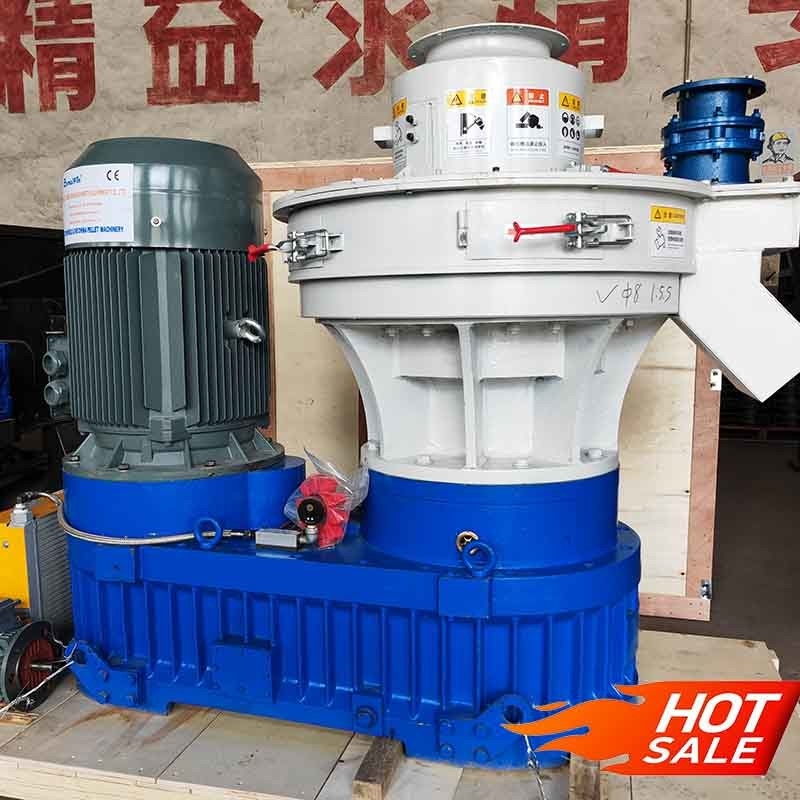

Wood Fuel Pellet Making Machine Wood Pellet Mill Sawdust Pellet Mill

Wood Fuel Pellet Making Machine Wood Pellet Mill Sawdust Pellet Mill

Product Description

Biomass pellet machine is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry waste such as wood chips, straw, rice husks, bark and other biomass as raw materials, and solidifies them into high-density pellet fuel through pretreatment and processing. Biomass pellet machine is divided into flat die biomass pellet machine and ring die biomass pellet machine.

Application Of Wood Pellet Mill:

It is mainly suitable for coarse fiber granulation, such as: sawdust, rice husk, cotton stalk, cottonseed husk, weeds and other crop straws, domestic garbage, factory waste, granulation of materials with low bonding rate and difficult to form, It can be applied to low-temperature granulation of biological bacterial fertilizer, organic fertilizer, compound fertilizer, etc. It can also be used for pressing and granulating various feeds.

Use of finished products
Biomass pellet fuel has high calorific value, low cost, clean, easy to store and transport, and can be used in industrial and agricultural production, power generation, heating, boiler burning, aluminum, drying, gasification combustion, chemical industry, textile, etc. It burns smokeless and odorless, cleanly. It is a clean energy.

Technical Parameters

Characteristics:

Fuel characteristics:
Characteristics of biofuel: The pellet fuel after molding has high specific gravity, small volume, combustion resistance, and is easy to store and transport. The density after molding is 1.1-1.5. The calorific value can reach 3400~4800 kcal. It is a high-volatile solid fuel with low sulfur content.

Fuel use:
Use of biomass fuel The pellet fuel after molding is a new type of bioenergy. It can replace firewood, raw coal, fuel oil, liquefied gas, etc. It is widely used in heating, domestic stoves, hot water boilers, industrial boilers, biomass power plants, etc.

Function description
1. Usage: Start the machine and pour the mixture into the bucket. The swinging action of the rotating drum forms particles through the wire screen and falls into the container. If the lumps are crushed, they should be added gradually. It is not advisable to fill it up to avoid excessive pressure and easy damage to the screen.
2. Precautions: If the powder in the powder hopper does not stagnate, do not shovel it with your hands to avoid injuries. Use a bamboo shovel or stop the machine.
Machine lubrication
1. The box part of the machine is equipped with an oil gauge. All oil should be added once before starting. In the middle, it can be added according to the temperature rise and operation of each bearing.
2. The worm gear box stores engine oil for a long time. The oil level height is when the worm gear is completely immersed in the oil. If it is used frequently, it must be replaced with new oil every three months. There is an oil plug at the bottom of the box for draining oil.
3. When refueling the machine, do not let the oil overflow from the cup, and do not let it flow around the machine and on the ground. Because oil can easily contaminate materials and affect product quality.
