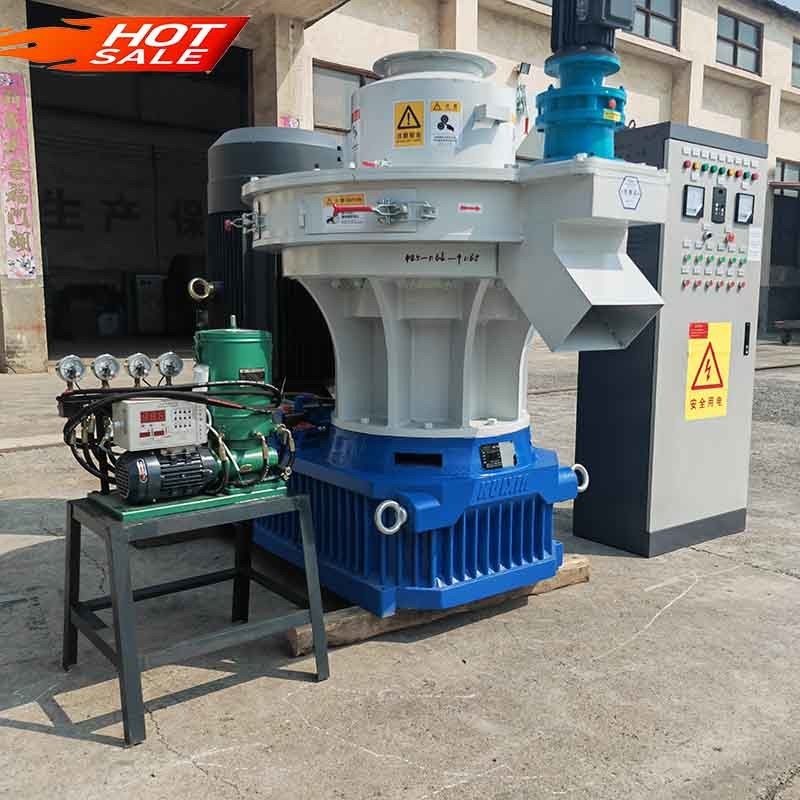

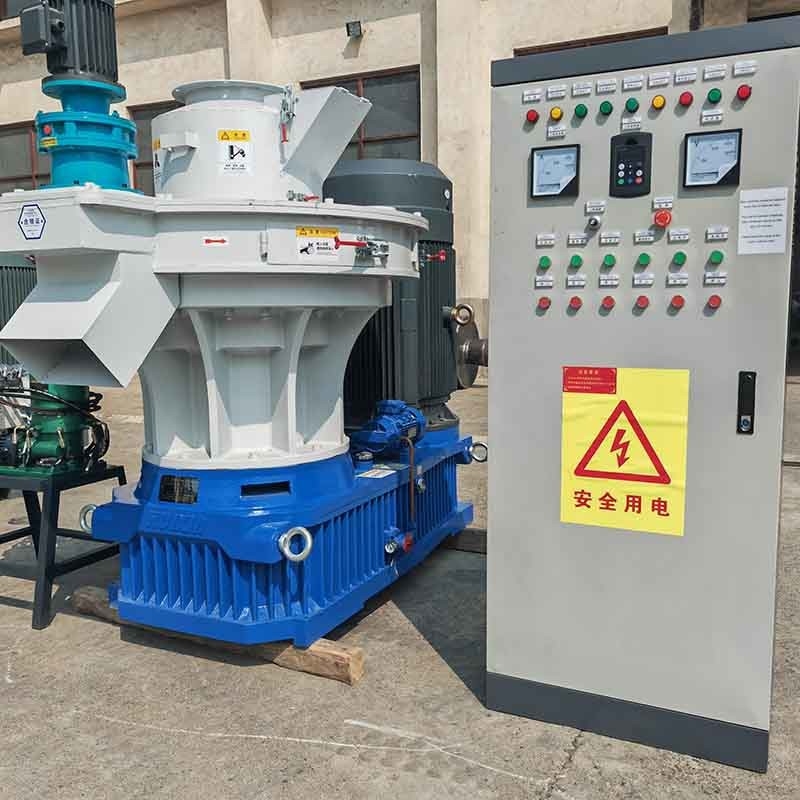

Wood Sawdust Rice Husk Straw Wood Pellet Mill Wood Pellet Production Line
Product Description
Biomass burners use biomass agricultural and forestry waste (straw, branches, bark, fruit shells, etc.); wood processing scraps (wood powder, sawdust, shavings, scraps, etc.); building formwork waste, square timber, etc.; decorative wood scraps and other organic matter as fuel, and use suspension, boiling, semi-gasification cracking combustion methods to produce high-temperature hot flames; and use radiation and convection heat transfer methods to transfer the heat of the high-temperature torch to thermal equipment. It is an environmentally friendly combustion equipment.
Biomass burners can be divided into two categories: natural air-cooled and water-cooled, with a variety of series of products.
Application Of Wood Pellet Mill:
It is mainly suitable for coarse fiber granulation, such as: sawdust, rice husk, cotton stalk, cottonseed husk, weeds and other crop straws, domestic garbage, factory waste, granulation of materials with low bonding rate and difficult to form, It can be applied to low-temperature granulation of biological bacterial fertilizer, organic fertilizer, compound fertilizer, etc. It can also be used for pressing and granulating various feeds.
Use of finished products
Biomass pellet fuel has high calorific value, low cost, clean, easy to store and transport, and can be used in industrial and agricultural production, power generation, heating, boiler burning, aluminum, drying, gasification combustion, chemical industry, textile, etc. It burns smokeless and odorless, cleanly. It is a clean energy.
Technical Parameters
Model | Power | Capacity | Contains equipment |
EWP-450 | 55 KW | 0.8-1 T/H |
(1) Feeding conveyor, (2) wood pellet machine, (3) dust removal, (4) automatic lubrication system, (5) electric control cabinet |
EWP-560 | 90 KW | 1.2-1.5 T/H | |
EWP-600 | 110 KW | 1.8-2 T/H | |
EWP-600A | 132 KW | 2-2.5 T/H | |
EWP-700A | 160 KW | 2.5-3 T/H |
Ring die pelletizing machine is a special equipment for biomass fuel pelletizing and crude fiber material pelletizing. It has a reasonable structure, stable operation, high forming rate and output. Main structure: power part, transmission part, pelletizing part (the core part is the mold and the pressing wheel), automatic lubrication part, and air-cooled dust removal part.
Product features:
① Vertical feeding, the material is fed in by free fall, no arching and easy heat dissipation;
② The pressing wheel rotates, the material is centrifugal, evenly distributed, and has a high forming rate;
③ The mold is fixed, the equipment runs more stably, and it is divided into upper and lower layers, and two specifications can be made;
④ The transmission part and the pressing part have two independent lubrication systems, which are safe and stable for long-term operation.
⑤ Equipped with air-cooled dust removal, long-term operation, effective production, energy saving and environmental protection.
Applicable raw materials:
Wood chips, sawdust, shavings, wood scraps, furniture factory scraps, rice husks, sunflower seed shells, peanut shells and other melon and fruit shells, branches, tree trunks, bark and other wood scraps; various crop straws; rubber, cement, ash and other chemical raw materials.
Function description
1. Usage: Start the machine and pour the mixture into the bucket. The swinging action of the rotating drum forms particles through the wire screen and falls into the container. If the lumps are crushed, they should be added gradually. It is not advisable to fill it up to avoid excessive pressure and easy damage to the screen.
2. Precautions: If the powder in the powder hopper does not stagnate, do not shovel it with your hands to avoid injuries. Use a bamboo shovel or stop the machine.
Machine lubrication
1. The box part of the machine is equipped with an oil gauge. All oil should be added once before starting. In the middle, it can be added according to the temperature rise and operation of each bearing.
2. The worm gear box stores engine oil for a long time. The oil level height is when the worm gear is completely immersed in the oil. If it is used frequently, it must be replaced with new oil every three months. There is an oil plug at the bottom of the box for draining oil.
3. When refueling the machine, do not let the oil overflow from the cup, and do not let it flow around the machine and on the ground. Because oil can easily contaminate materials and affect product quality.
