Product Description

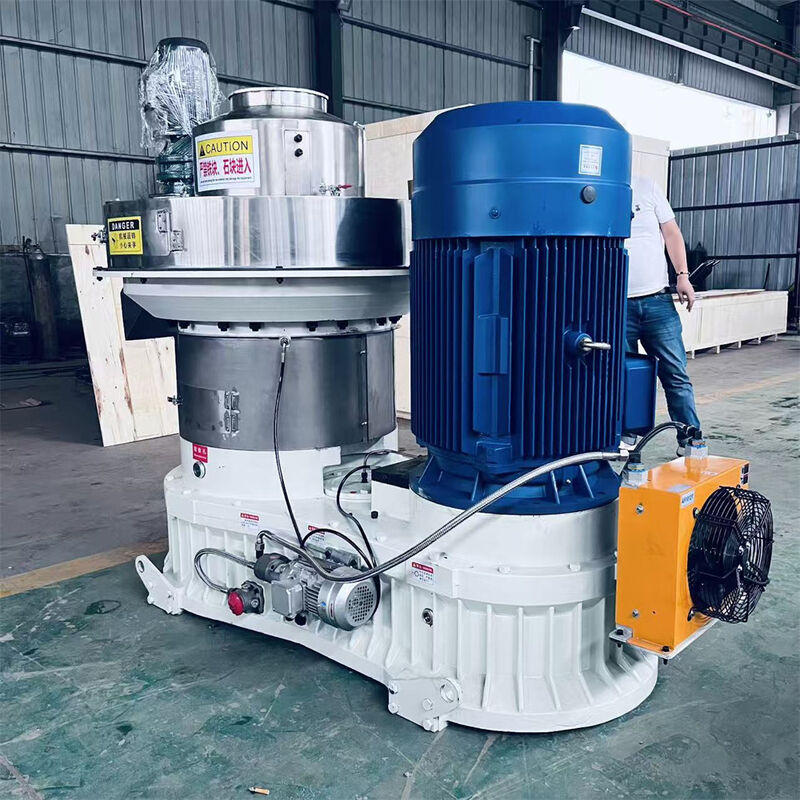

High-Quality Ring Die Wood Pellet Press Machine for Clean Energy Production

Professional Biomass Pelletizing Equipment

Our ring die wood pellet machine is a high-efficiency, stable, and energy-saving pelletizing equipment designed for biomass raw materials. It enables the recycling of agricultural and forestry wastes by compressing various woody and straw materials into high-density pellets, which are widely used as clean energy and feed. With advanced ring die technology and precise transmission system, the machine ensures high pellet forming rate and long service life, making it an ideal choice for your production line.

Core Features

Vertical Feeding & Uniform Distribution: Adopts vertical feeding design where materials directly enter the pelleting chamber, avoiding jamming. The rotating frame plate enables centrifugal material distribution for even contact between materials and the die.
High-Quality Ring Die & Pressure Roller: Ring die made of high-grade alloy steel with carburizing and quenching treatment, featuring high hardness and wear resistance. Pressure roller structure optimized for 2-3 repairs, reducing production costs.
Efficient Transmission System: Equipped with high-precision helical gear direct transmission achieving over 98% efficiency. Main shaft constructed from imported alloy steel for stable operation under high load.
Automatic Lubrication System: Independent automatic oil supply system regularly lubricates bearings and gearboxes, ensuring sufficient lubrication and extending key component service life.
Optimal Heat Dissipation: Vertical structure design facilitates heat dissipation in the pelleting chamber. Equipped with dust removal fan to promote air circulation and prevent particle deformation from high temperatures.

Application Scope

Suitable for various biomass raw materials with moisture content of 10-20%:

Woody materials: Sawdust, wood chips, bamboo chips, branches, bark, furniture factory scraps, construction waste wood
Straw materials: Rice husk, peanut shell, sunflower seed shell, corn stover, wheat straw, sugarcane bagasse
Other materials: Traditional Chinese medicine residue, coffee residue, palm shell

Widely used in: Biomass power plants, wood processing factories, feed factories, fertilizer factories, chemical plants, and rural straw energy recycling projects.

Technical Parameters

Model	Main Motor Power (KW)	Pellet Size (mm)	Production Capacity (t/h)	Overall Dimension (LWH, m)	Weight (T)
EWVR450	55	6-12	0.8-1	1.81.11.5	2.2
EWVR560	90	6-12	1.5-2	2.11.31.6	4.6
EWVR600	110	6-12	2-2.5	2.31.41.7	5.8
EWVR650	132	6-12	2.5-3	2.51.51.8	7.2

Working Principle

The material enters the pelleting chamber vertically and is evenly distributed on the inner surface of the static ring die by the rotating frame plate. Under the rolling of the rotating pressure roller, the material is extruded through the die holes. During this process, the material undergoes physical changes under high pressure and temperature, and the fibers are rearranged and bonded to form continuous cylindrical solids. The solids are cut into pellets of specified length by the cutter around the die, then collected at the discharge port by the material shifting teeth.

Why Choose Our Ring Die Wood Pellet Machine?

Professional R&D Team: Custom pelleting solutions tailored to your raw material characteristics and output requirements
Strict Quality Control: Each machine undergoes rigorous testing before delivery to ensure stable performance
Comprehensive After-Sales Service: Installation guidance, operation training, and lifelong technical support
Energy-Saving & Environmental Protection: Helps achieve resource recycling and meet environmental requirements

For more information about this product, please contact our sales team. We will reply to you within 24 hours!
