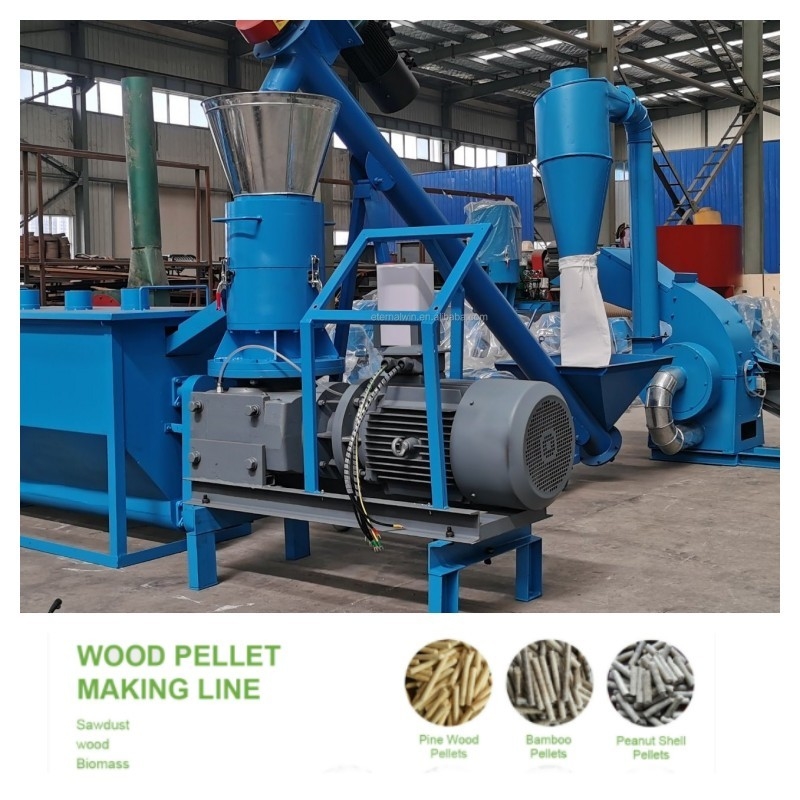

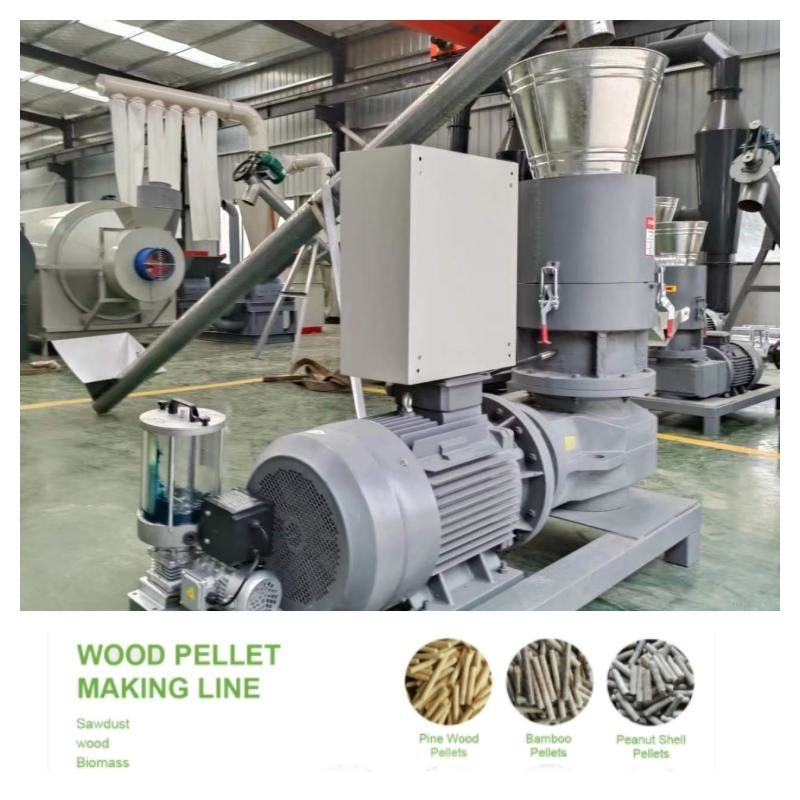

100-1200kg/h Wood pellet Maker/ wood pellets line/with Adjustable Size
Product Description:
The sawdust pellet machine is a machine that presses sawdust, wood chips and other raw materials into rod-shaped pellets with a diameter of 6/8/10 mm through mechanical and physical extrusion. Sawdust generally comes from: trees, planks, bark, shavings, furniture factory waste and other biomass materials
The wood pellet machine uses eucalyptus, birch, poplar, fruit wood, bamboo chips, wood scraps, etc. as raw materials. Raw materials are crushed into sawdust, enter the mold from top to bottom, and the sawdust is driven by the rotation of the pressure wheel to distribute to the surroundings, and then squeezed by the pressure roller and the ring die, finally forming a molding equipment for columnar particles.
Wood pellet machines generally use renewable wood waste as raw materials, which greatly reduces the cost. The formed wood pellets can be used to generate electricity, burn directly, and can also be used for urban heating and as a substitute for boiler fuel. The economic benefits brought about are worthy of recognition.
The wood pellet machine effectively solves the problem of difficult granulation of coarse fibers, and tailors a high-efficiency pellet production line for many customers, which has been well received in the pellet machine industry.
1. High-precision involute cylindrical helical gears are used for direct transmission, and the transmission efficiency is as high as 98%.
2. Normalizing heat treatment after water forging of the transmission gear tooth billet, which improves the hardness of the tooth surface; the tooth surface is carburized, and the carburized layer is as deep as 2.4mm, which enhances the wear resistance and prolongs the service life of the parts; the hardened tooth surface After the silent fine grinding and edge repairing process, the operation is quieter and more stable.
3. The main shaft and connected hollow shaft are made of alloy structural steel imported from Germany through water forging, rough turning, heat treatment, fine turning and fine grinding. Operation provides more reliable protection.
4. The host box is precision-cast with high-quality steel, with uniform thickness and compact structure; it is then carefully processed by the CNC machining center imported from Switzerland, with zero error in machining accuracy. Provide stronger support for normal operation.
5. The bearings and oil seals used in the transmission part are high-precision bearings imported from Japan and wear-resistant and temperature-resistant fluororubber oil seals imported from the United States, and a lubricating oil return system is specially added, the oil circuit is circulated and cooled, and oil is automatically lubricated at regular intervals. Ensure that the bearings are fully lubricated for safer and more reliable operation.
6. The bearings used in the particle forming system are all high-quality silent bearings, and a thin oil circulation cooling and lubrication system is added to ensure longer service life and safer operation of the bearings.
7. The ring die is made of high-grade stainless and high-nickel steel, and the unique compression ratio is designed reasonably, which makes the product quality better, the ring die has a longer service life, and reduces the production cost to the greatest extent.
8. The new generation of Biomass Sawdust Pellet Machine is developed and designed by a famous senior designer in the United States, and it is specially used for wood pellets. The company has its own production base. The ring die 450# biomass granulator is the most stable, reliable, efficient, safest and most economical model after hundreds of tests and demonstrations in the factory. The equipment can realize Twenty-four hours of continuous operation
Features:
- Wood Pellet Maker
- Capacity: 250-800kg/h
- Warranty: 1 Year
- Voltage: 380V
- Material: Carbon Steel, Alloy Steel
- Wood Granule Maker
- Biofuel Pellet Maker
- Biomass Pellet Maker
Technical Parameters:
| Model |
Capacity (kg/h) |
Power(kw) |
Weight(kg) |
package size(mm) |
| EWPL-200B |
80-120kg/h |
7.5kw |
300kg |
1050*480*1120 |
| EWPL--300B |
200-300kg/h |
22kw |
550kg |
1310*610*1510 |
| EWPL-400B |
400-500kg/h |
30kw |
850kg |
1460*710*1710 |
| EWPL-450B |
600-700kg/h |
45kw |
1150kg |
1610*71*1710 |
| EWPL-550B |
700-800kg/h |
55kw |
1800kg |
2300*800*1900 |
Applications:
FAQ:
- Q: What is the Brand Name of the Wood Pellet Maker?
- A: The Brand Name of the Wood Pellet Maker is Zhongdebao.
- Q: What is the Model Number of the Wood Pellet Maker?
- A: The Model Number of the Wood Pellet Maker is EWPL300-550.
- Q: Where is the Wood Pellet Maker manufactured?
- A: The Wood Pellet Maker is manufactured in China.
- Q: What is the power of the Wood Pellet Maker?
- A: The Wood Pellet Maker has a power of 22-37kw.
- Q: What materials can the Wood Pellet Maker handle?
- A: The Wood Pellet Maker can handle sawdust, crop straw, rice husk and other biomass materials.
