Grain Straw Husk Grass Corn MaizeHay Strong Feed Hammer Mill To Grinding Fodder Flour
Product Description:
1. Hammer mill machine can crush various kinds of raw materials such as corn,sorghum,wheat straw,bean stalk,sweet potato stalk,peanut shell,dried weed and so on.
2. The thickness of the final product can be controlled by changing the different size screen.

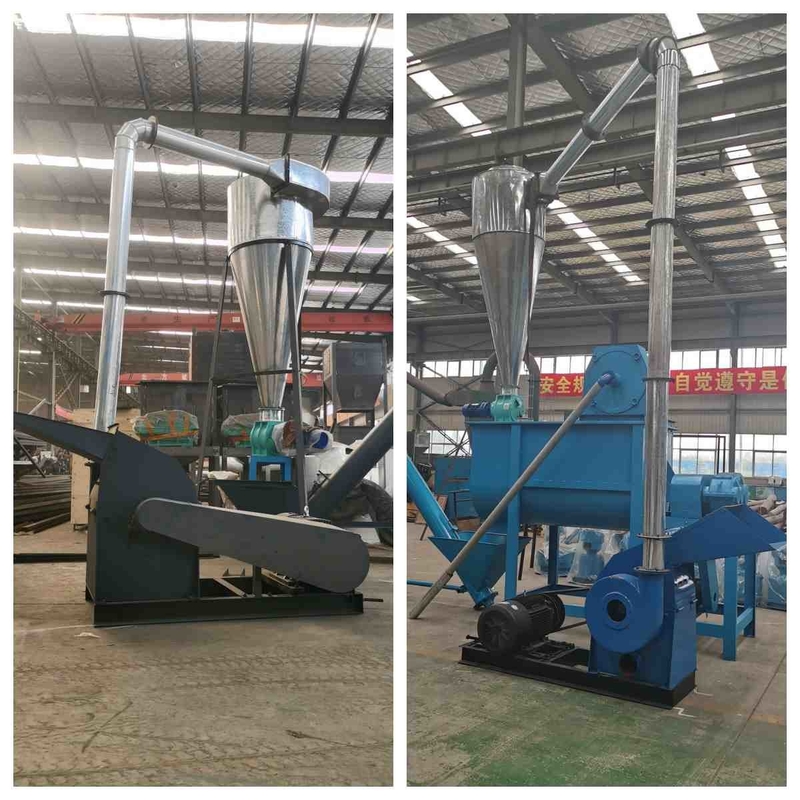

3. Hammer mill machine can be matched with a Cyclone.Keep the operating environment clean.
There are four wheels under the machine, which make it easier for the machine to operate.
1. Firstly, put the grain for example corn sorghum wheat straw,bean stalk,corn stalk,peanut stalk,sweet potato stalk,peanut shell,dried weed into the feeding inlet.
2. Secondly,The hammer will crush the grain when machine is working.
3. Finally, the final product will come out from outlet.
Features:
1.Power:11/15kw
2.Use:the series is the radial feeding hammer grinder,available to grind the dry pellets,food,chemical materials
3.Structure:compact , firm, smooth running and crushing material fast
4.Multifunctional:advoid pulverized coal deposits and easy cleaning .
5.with deduster and fan
6.Can mill kinds of material
7.Has compact structure
Technical Parameters:
|
Items
|
9FQ-36
|
9FQ-40
|
9FQ-42
|
9FQ-50-32
|
9FQ-50-40
|
|
Dimension(L*W*H mm)
|
900*750*740
|
960*800*800
|
1000*850*850
|
1158*930*1090
|
1158*110*1090
|
|
Main shaft speed:r/min
|
3800
|
3800
|
3800
|
3800
|
3800
|
|
Rotor diameter:mm
|
360
|
400
|
420
|
500
|
500
|
|
Capacity:kg/h(based 3mm mesh)
|
500-700
|
800-1000
|
1100-1300
|
1300-1500
|
1500-2000
|
|
Weight:kg
|
80
|
100
|
130
|
170
|
200
|
|
Power:KW
|
5.5-7.5
|
5.5-7.5
|
11-15
|
11-15
|
15-22
|
|
Hammer number
|
16
|
16
|
24
|
24
|
32
|
|
Hammer arrangement
|
Single head interleaving
|
|
Remarks
|
The above data are for reference only, and there may be slight deviation in the actual situation. Please refer to the actual situation
|
Applications:
This grain corn crusher can grind all kinds of dry materials and wet materials,such as maize,grain, sorghum,beans and wheat.After milled by fluted disc crusher machine,the output size can reach the diameter of 35mm,which is suitable for further briquetting or feeding animals.
Customization:
Working Principle of corn grain/straw/stalk/wood chips/tree branches and forest waste hammer mill crusher grinder:
The hammer feed crusher is made of high quality materials welded mill feed inlet at the top, can be compatible with various forms of feeding structure, hammer symmetrical arrangement. When the mill work, material into the crushing chamber, high-speed rotary hammer blow and sieve friction at the material gradually be crushed, and the centrifugal force and airflow through the bottom of the discharge port
FAQ:
1. Q:what is the raw material?
A:corn,sorghum,wheat straw,bean stalk,corn stalk,peanut stalk,sweet potato stalk,peanut shell,dried weed and so on.
2. Q:What controls the thickness of the final product?
A:The customer can control the thickness of the final product by changing the different size screen.
3. Q:How many hammers are there inside the machine?
A:There are 18 hammers in the machine.
4. Q:Do you have machine in stock?Can l visit your factory?
A:Yes, We have. Welcome to our factory at any time.
.
