200-500kg/h 18.5-22kw Biomass Briquetting Machine 8-10% Moisture Content with Low Maintenance
Product Description:

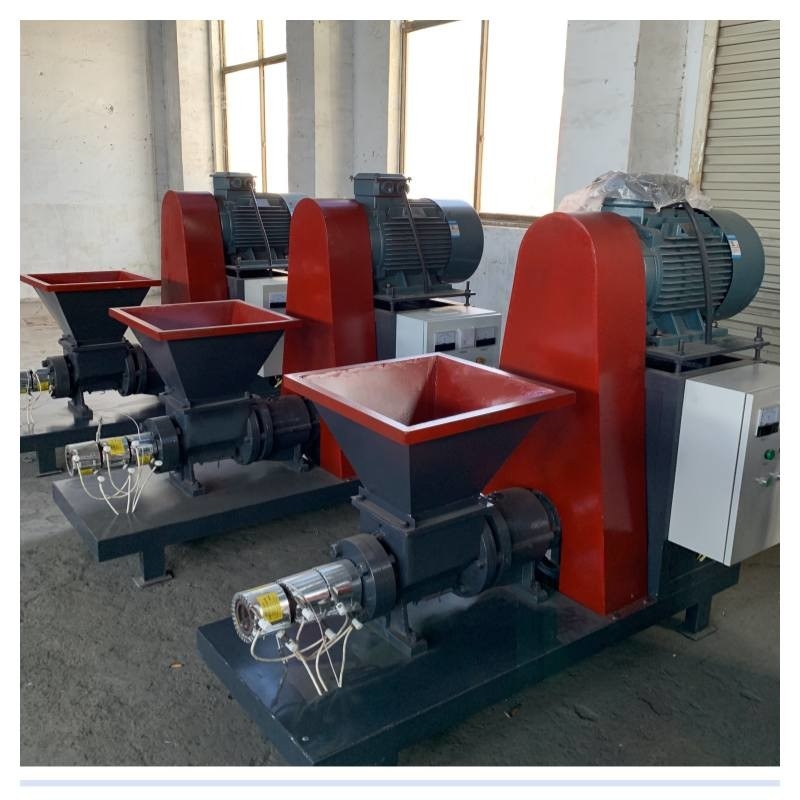

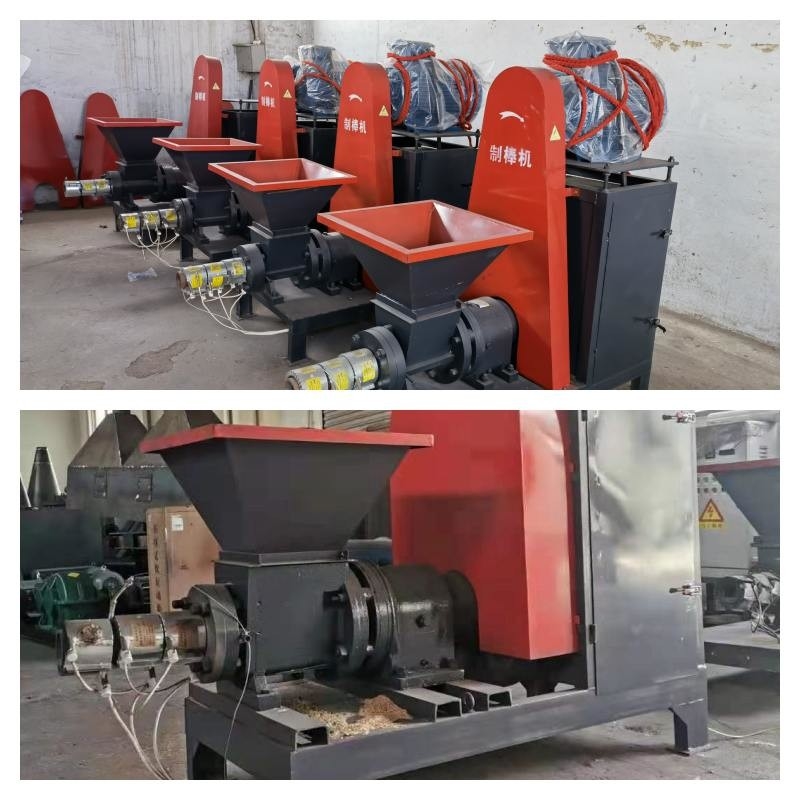

Biomass briquetting machine is a device that crushes straw, sawdust, rice husk, corn cob, cow dung, branches, bark, waste wood, cloth strips, garbage and other raw materials into efficient and environmentally friendly fuels. The biomass briquette fuel produced by this equipment has a large specificity, high calorific value, and combustion resistance. It can replace firewood, coal, liquefied petroleum gas, etc., and is widely used in domestic heating stoves, hot water and industrial boilers, and biomass power plants.
Simple operation, convenient use, high degree of automation, less labor and high efficiency.
Double pressure roller structure: make the main shaft evenly stressed, the machine runs smoothly and reduces power consumption.
The mold and pressure roller are made of special alloy materials, which are wear-resistant, pressure-resistant, and high-temperature resistant. They will not deform when they work continuously, and their service life is 3-4 times that of the original.
The equipment adopts a fully automatic oil injection method, and the oil is supplied at regular intervals all the time, which saves worry, effort and time, and greatly improves the service life.
The equipment is suitable for a wide range of materials: crop straw, crop husk, sawdust and other agricultural and forestry waste.
Charcoal slag rod making machine is also called charcoal powder rod making machine, straw coal forming machine, charcoal rod extruder, hollow rod making machine, etc.; it uses the principle of screw extrusion to compress the prepared powdered coal into a certain strength. Predetermined shapes of carbon rod forming equipment. Its working principle is: the motor transmits the power to the transmission through the V-belt, the output shaft of the transmission transmits the power to the propulsion shaft through the floating coupling, and the propeller on the propulsion shaft pushes the coal material out through the forming die to produce ideal High pressure charcoal rod. The charcoal slag rod making machine adopts a hard tooth surface reducer, which is small in size and high in carrying capacity
Features:
- Product Name: Biomass Briquetting Machine
- Size of Briquettes: 50mm
- Application: Industrial Boilers, Home Heating, Etc.
- Power: 18.5kw
- Heating Value: 3800-4800Kcal/kg
Technical Parameters:
| Parameters |
Specifications |
| Application |
Industrial Boilers, Home Heating, Etc. |
| Density of Briquettes |
1.1-1.3g/cm3 |
| Raw Materials |
Wood, Straw, Sawdust, Rice Husk, Peanut Shell, Etc. |
| Moisture Content |
8-10% |
| Power |
18.5kw |
| Size of Briquettes |
50mm |
| Dimension |
1650*1000*1700mm |
| Capacity |
200-500kg/h |
| Heating Value |
3800-4800Kcal/kg |
| Briquettes Shape |
Hexagonal, Cylindrical, Square, Etc. |
Applications:
FAQ:
Q1: What is the Brand Name of Biomass Briquetting Machine?
A1: The Brand Name of Biomass Briquetting Machine is Zhongdebao.
Q2: What is the Model Number of Biomass Briquetting Machine?
A2: The Model Number of Biomass Briquetting Machine is EW50A.
Q3: Where is the Place of Origin of Biomass Briquetting Machine?
A3: The Place of Origin of Biomass Briquetting Machine is Henan, China.
Q4: What are the Certifications of Biomass Briquetting Machine?
A4: The Certifications of Biomass Briquetting Machine are CE, SGS, BV.
Q5: What is the Minimum Order Quantity of Biomass Briquetting Machine?
A5: The Minimum Order Quantity of Biomass Briquetting Machine is 1.
